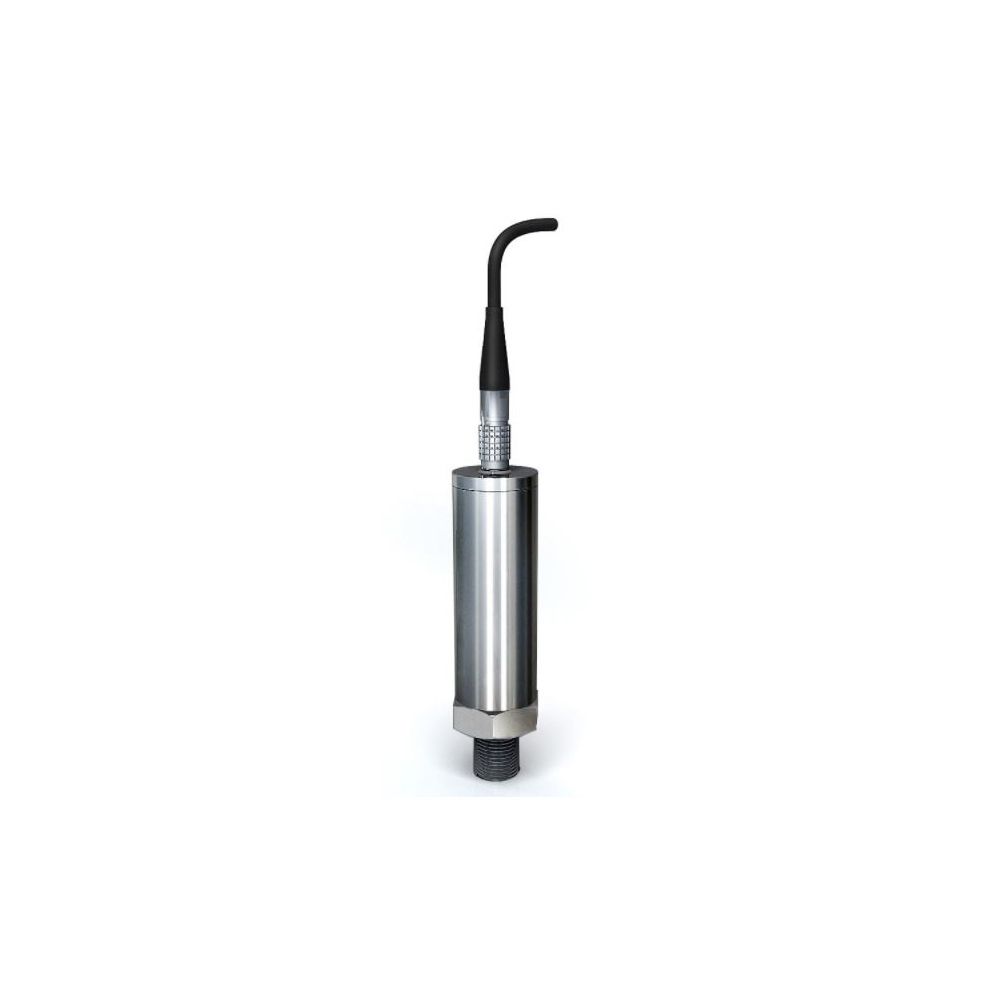

Additel ADT160A

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160 series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. It is loaded with functionality and remarkably easy to use. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly. Designed as external pressure module for Additel 761 automated pressure calibrator and Additel 222A, Additel 223A and Additel 761 calibrators, the Additel 160 IDPM is unmatched in performance and reliability.

• 40,000 PSI
• 2,800 bar
• 0.1 accuracy
• Compensated Temperature: 14°F to 122°F(-10°C to 50°C)
• Operating Temperature*: 14°F to 122°F(-10°C to 50°C)
• Storage Temperature: -4°F to 158°F (-20°C to 70°C)
• Humidity: &lt,95%
• 1/4NPT male, 1/4BSP male, M20X1.5 male
• Other Connections available per request
• Case material: SST
• Wetted parts: 316L SS
