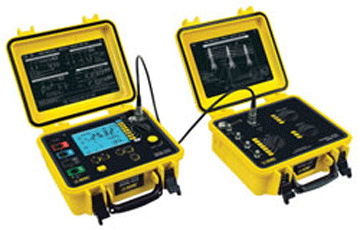

- GroundFlex Adapter Model (6474) and the Ground Resistance Tester (6472)
- Only system on the market capable of testing ground resistance of individual power transmission tower legs, as well as total resistance without disconnecting the overhead ground wire
- Testing both ground resistance of tower legs(individually and total) and overhead ground wires
- Tests leakage current through the tower legs and tests at frequencies up to 5kHz to profile impedance, which is important to characterize for lightning strikes
>
Each Unit Includes
- Rechargeable NiMH Batteries
- Optical USB Cable
- Power Adapter 110/240V with power cord 115V US
- Two 500ft. Color-coded leads on spools(red/blue)
- Two 100ft. color-coded leads(hand tied)
- One 30ft. lead
- Four T-Shaped auxiliary ground electrodes
- Set of five spaded lugs
- One 100ft. AEMC Tape Measure
- Dataview software
- Ground tester workbook CD
- Carrying bag for meter
- Carrying bag for kit
- Hard carrying case
- Prodcut warranty and registration card
- User Manual
