Amprobe UAT-610
Roll over image to zoom in
$2.305
Locate underground energized and de-energized utilities with precision using the Amprobe UAT-610. Featuring multiple tracing modes, CAT IV 600 V safety rating, and a high-contrast display, this rugged locator is ideal for demanding electrical, construction, and maintenance environments.
Amprobe UAT-610 Underground Utilities Locator – Reliable Detection of Energized and De-Energized Cables.
The Amprobe UAT-610 Underground Utilities Locator is engineered for professional technicians who need to safely and accurately locate underground utilities, both energized and de-energized. Its intuitive Transmitter automatically selects the appropriate tracing mode based on the accessory connected, offering selectable 8 kHz and 33 kHz frequencies for flexible detection.
With CAT IV 600 V safety compliance, an IP54-rated rugged body, and drop protection up to 1 meter, the UAT-610 is built for tough field conditions. The Receiver features a clear, high-contrast LCD display with an automatic backlight, ensuring readability in all lighting conditions. Semi-automatic gain control aids in detecting weak signals, while the system also provides accurate depth measurements up to 20 feet.
Whether you\’re working on electrical maintenance, utility mapping, or construction, the UAT-610 delivers high-performance underground cable locating with ease and safety.
🔗 Related Reading: Learn about other critical instruments in our Essential Tools for Electrical Calibration: A 2025 Guide for Industrial Technicians article.
Key Features
-
Multiple Tracing Modes: Supports energized and de-energized cable detection in diverse applications
-
Auto-Sensing Transmitter: Automatically selects locating function with 8 kHz / 33 kHz options
-
High-Contrast Receiver Display: Visible under sunlight, with auto-backlight for low-light use
-
CAT IV 600 V Rated: Ensures safety in high-voltage environments
-
Accurate Depth Measurement: Measures up to 20 ft
-
Rugged Construction: IP54-rated for water/dust resistance and 1 m drop-tested
-
Semi-Auto Gain Control: Simplifies sensitivity adjustment for clearer signal detection
Why Choose the Amprobe UAT-610?
The UAT-610 combines advanced safety, ease-of-use, and dependable detection accuracy in one kit. Unlike standard locators, it offers fully integrated solutions for different cable types and conditions, reducing the risk of utility strikes and downtime. Its intuitive operation and ergonomic build make it a top choice for utility workers and industrial electricians alike.
🔗 Explore more in our Cable Tracers and Locators category.

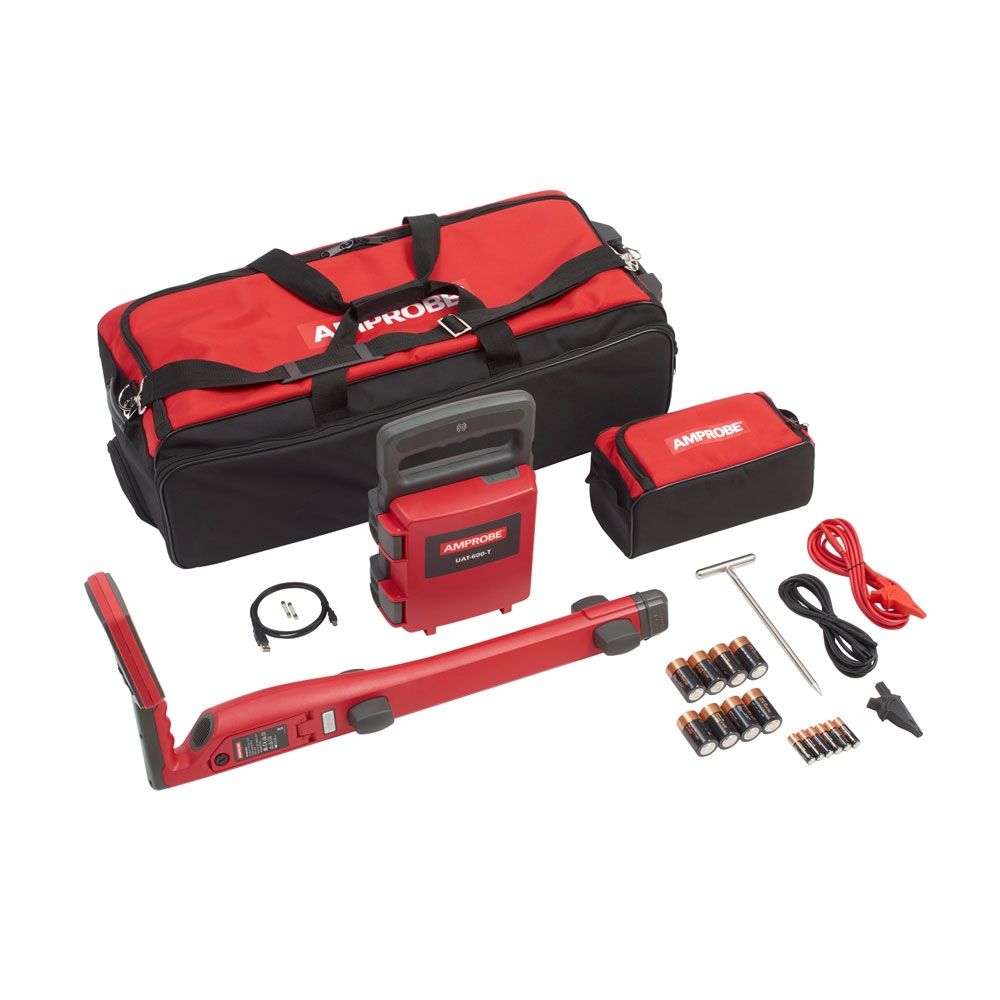

What’s Included
-
UAT-600-R Receiver
-
UAT-600-T Transmitter
-
CC-UAT-600 Carrying Case
-
TL-UAT-600 Test Leads Kit
-
(2) FP-UAT-600 Replacement Fuses
-
(6) 1.5 V AA Batteries (Receiver)
-
(8) D-Cell Batteries (Transmitter)
-
User Manual & Quick Reference Guide
Technical Specifications
Receiver
| Feature | Specification |
|---|---|
| Tracing Mode (De-Energized) | 8 kHz |
| Display | 1.28” BW LCD, auto backlight |
| Sensitivity | 10 µA (1 m depth typical), up to 2 MΩ fault locate |
| Operating Temp/Humidity | -20°C to 50°C, ≤90% RH |
| Water/Dust Resistance | IP54 |
| Drop Proof | 1 m |
| Battery Life | Approx. 60 hours |
| Dimensions | 355 x 230 x 120 mm (14 x 9 x 4.7 in) |
| Weight | 1.9 kg (4.2 lb) |
SC-600 Signal Clamp
| Feature | Specification |
|---|---|
| Voltage Range | 0–600 V (CAT IV) |
| Signal Frequency | 8 kHz / 33 kHz |
| Water/Dust Resistance | IP54 |
| Drop Proof | 1 m |
| Dimensions | 295 x 180 x 37 mm |
| Weight | 0.85 kg (1.9 lb) |
TL-UAT-600 Test Leads Kit
| Feature | Specification |
|---|---|
| Voltage/Current Rating | 600 V / 10 A max. |
| Length | 11.5 ft (3.5 m) |
| Water/Dust Resistance | IP54 |
| Weight | 0.5 kg (1.1 lb) |
Applications
-
Locating underground energized cables for safe excavation
-
Tracing de-energized lines for repair or mapping
-
Ground fault location in utility and industrial settings
-
Infrastructure maintenance in construction zones
-
Ideal for technicians handling electrical testing and calibration
