Chroma 19057 Hipot Analyzer: Precision DC 12 kV Testing with IR/BDV, RS-232, and USB Connectivity

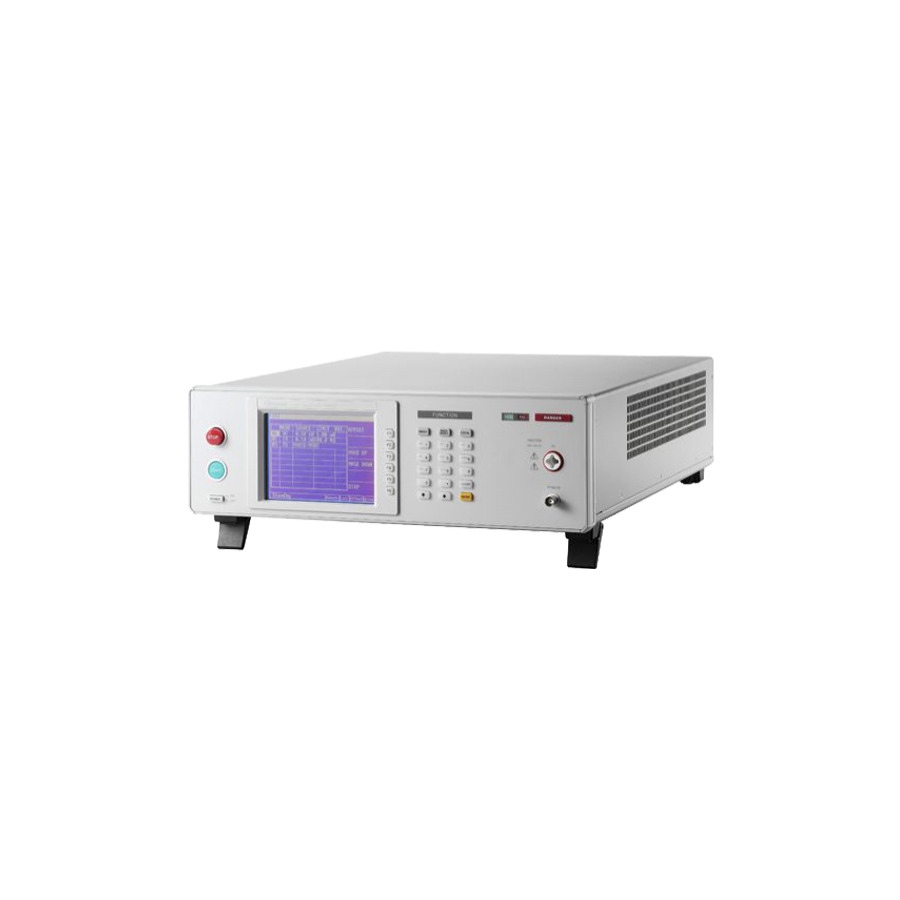

Chroma 19057 – Hipot Analyzer DC12KV (IR/BDV).

The Chroma 19057 Hipot Analyzer DC12KV is a high-performance insulation and dielectric strength tester designed for advanced electrical safety testing in industrial environments. With the capability to perform withstand voltage testing up to 10kV AC and 20kV DC, this analyzer is ideal for critical applications that require precision insulation resistance (IR) and breakdown voltage (BDV) measurements.

Equipped with advanced features like HVCC (High Voltage Contact Check), HFCC (High Frequency Contact Check), OSC (Open Short Check), and GFI (Ground Fault Interrupt) for operator safety, the 19057 analyzer delivers reliable performance across production and lab settings.

Integrated fast charge/discharge functionality enhances test efficiency, while programmable output and limits allow flexible setup for a variety of test routines. For engineers working on electrical calibration or compliance, this hipot tester meets global standards with its CE mark and NIST-traceable calibration.

In addition to its core functions, the 19057 analyzer supports data logging and remote communication via standard RS232, with optional GPIB and HANDLER interfaces, making it suitable for automation environments.

Looking to enhance your safety testing strategy? Check our related insights:

• Essential Tools for Electrical Calibration: A 2025 Guide for Industrial Technicians

• The Complete Guide to Earth Ground Testers and Soil Resistivity Testing

Explore more precision tools in our Electrical Test Instruments collection.

Key Features

• Withstand Voltage: 10kV AC / 20kV DC

• Insulation Resistance Measurement: 0.1MΩ to 50GΩ

• Built-in BDV (Breakdown Voltage), OSC (Open Short Check)

• HVCC / HFCC for reliable high voltage contact

• GFI safety protection circuitry

• Programmable output and test limits

• Fast charging/discharging functionality

• Key lock security function

• CE certified with NIST calibration included

Technical Specifications

Hipot Testing:

• Test Type: DC, IR

• Max DC Test Voltage: 12 kV

• Min DC Test Voltage: 0.1 V

• Max Trip Current (DC): 10 mA

• Min Trip Current (DC): 0.0001 mA

• IR Test Voltage: 5,000 V

• Max Insulation Resistance: 50 GΩ

• Arc Detection: Yes

• Programmable: Yes

• Connection Type: Probe

General Specifications:

• Interfaces: RS-232 (standard), GPIB & HANDLER (optional)

• Storage: Internal Memory

• Data Logging: Yes

• Calibration: NIST Certified

• Safety Approvals: CE

• Warranty: 2 Years Factory Warranty

• Dimensions: 19.69″ (L) x 16.93″ (W) x 5.12″ (H)

• Shipping Weight: 61.70 lbs

• Country of Origin: Taiwan
