Dranetz HDPQ-SPGA550PKG

Dranetz HDPQ-SPGA550PKG – HDPQ Guide SP 100A Power Quality Analyzer Package.

The Dranetz HDPQ-SPGA550PKG is a comprehensive Power Quality Analyzer package featuring the HDPQ Guide SP and four TR-2550B clamp CTs (10A to 100A). Designed for professionals conducting detailed power quality studies, energy audits, and compliance monitoring, this IP65-rated analyzer delivers high-definition PQ and energy measurements with Class A accuracy.

Housed in a rugged, arc-flash safe enclosure, the HDPQ-SPGA550PKG enables remote access and field operability with Wi-Fi, Bluetooth, Ethernet, and mobile app support. The unit automatically detects circuit connections and features high-speed transient capture down to 1µs, making it ideal for industrial diagnostics and compliance reporting.

Easily integrated into any power monitoring program, this analyzer also supports critical standards such as IEC 61000-4-30, IEEE 1159, IEC 61000-4-7, and IEEE 519.

Learn more about how tools like this enhance energy efficiency in our article:
The Critical Role of Power Loggers in Industrial Energy Audits
Browse similar tools in our Power Analyzers category.

---

Key Features

• IP65 Arc Flash Safe Enclosure (UL/cUL & CE Approved)

• 4 x TR-2550B Clamp CTs (10A–100A AC)

• 8 Channels: 4 Voltage + 4 Current

• ±0.1% Accuracy, Class A Compliant

• Transient Capture: 1µs to 2000Vpk

• 512 Samples/Cycle High-Definition Recording

• Color 7” Touchscreen Display (WVGA, LED backlit)

• Built-in Data Logging, Real-Time Monitoring & Snapshots

• Internal 4GB Memory + USB Flash Support

• Communication: Wi-Fi, Ethernet, USB, Bluetooth via adapter

• Android® & iOS App + VNC Remote Access

• 3-Year Manufacturer Warranty

---

Technical Specifications

Electrical Measurement:

• Voltage (4 Differential Channels):

  • Range: 0–1000Vrms (AC/DC), ±0.1% Reading

  • Transient: 0–1500Vpk, ±0.2%

  • Standard Compliance: IEC 61000-4-30 Class A

• Current (4 Channels):

  • Range: 1A–100A with TR-2550B CTs

  • Accuracy: ±0.1% Reading, ±0.05% FS

  • Transients: ±0.2% of Udin

• Frequency:

  • 16–25Hz, 42.5–69Hz, ±0.01Hz

• Harmonics:

  • VTHD, ITHD (DC to 127th order), ±5% for ≥1% Vnom

Calculated Parameters:

• Real, Reactive, and Apparent Power (W, VAR, VA)

• True & Displacement Power Factor (PF)

• Demand (W), Energy (Wh)

• Distortion Analysis: 200ms, 3s, 10min intervals

• Phasor Diagram Display

Standards Compliance:

• Power Quality: IEC 61000-4-30 Class A

• Harmonics: IEC 61000-4-7, IEEE 519

• Voltage Flicker: IEC 61000-4-15

• Power Definitions: IEEE 1459

• Waveform Events: IEEE 1159

• General Compliance: EN 50160

---

General Specifications

---

Connectivity & Interfaces

• Ethernet (LAN)

• 802.11 b/g/n Wireless (Wi-Fi)

• USB On-the-Go

• Bluetooth via Adapter

• Android® & iOS App

• VNC Remote Desktop Support

• GPS Location Enabled

---

Package Includes

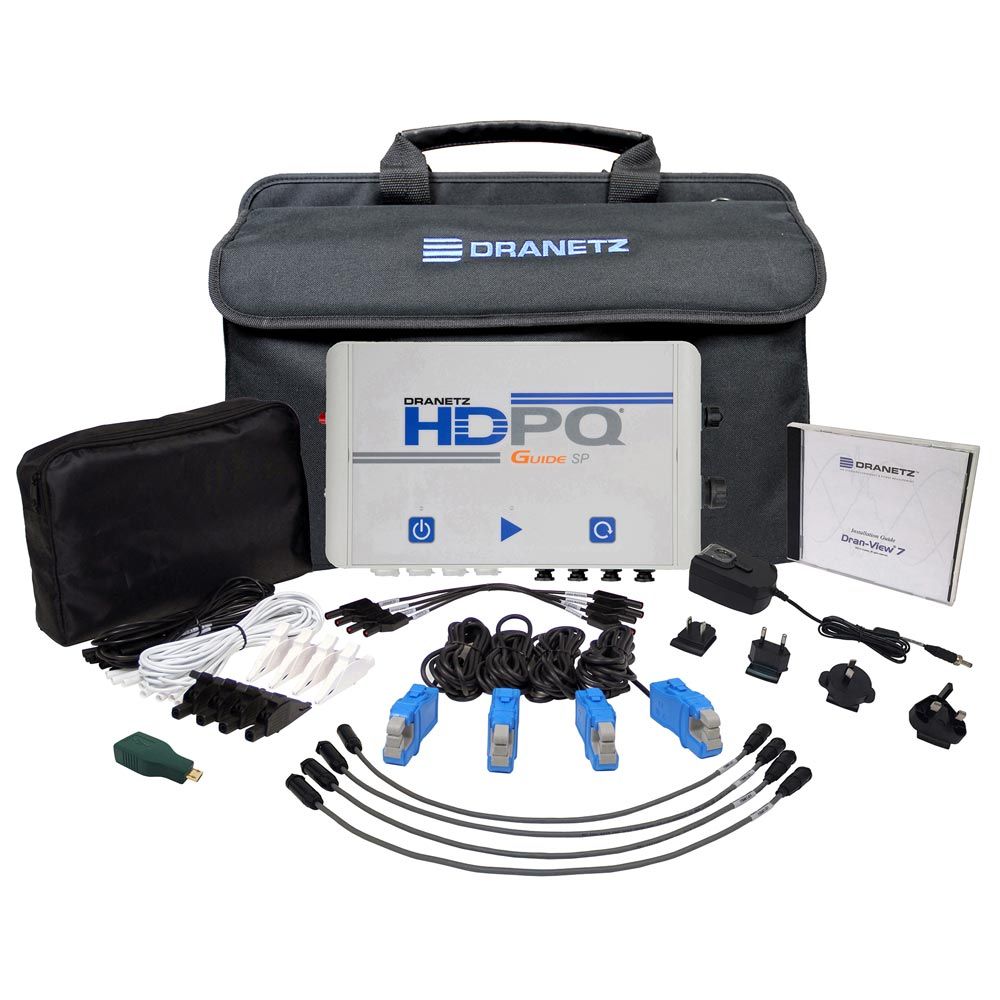

• (1) Dranetz HDPQ-SPGA Power Quality Analyzer

• (4) TR-2550B Clamp CTs (10A–100A AC)

• (1) USB-MCABLE

• (1) USB-BLUETOOTH Adapter

• (1) 118313-G1 Keyhole Mounting Kit

• (1) Voltage Cable Set (118375-G1)

• (1) SCC-HDPQ Soft Carrying Case

• (1) NIST-Traceable Calibration Certificate

• (1) Dran-View® 7 Software (DV7P-PX) License

---

Compliance & Warranty

• Safety Approvals: UL, CE, CSA

• IP Rating: IP65 (Dust & Water Resistant)

• CAT Rating: CAT IV @ 600V / CAT III @ 1000V

• Warranty: 3 Years (1 Year for accessories & batteries)

---

Shipping & Logistics

• Product Weight: 4.2 lbs

• Shipping Weight: 17 lbs

• Dimensions: 10” x 8” x 2.75”

• Shipping Box Size: 24” x 24” x 24”

• Country of Origin: United States

• HS Code / Schedule B: 9030840000
