- Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
- Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
- PowerWave data capture: 435 and 437 Series II analyzers capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
- Waveform capture: 435 and 437 Series II models capture 100/120 cycles (50/60Hz) of each event that is detected in all modes, without set-up
- Automatic Transient Mode: 435 analyzers capture 200 kHz waveform data on all phases simultaneously up to 6 kV
- Fully Class-A compliant: 435 Series II analyzers conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
- Mains signaling: analyzers measure interference from ripple control signals at specific frequencies
- 400 Hz measurement: 437 Series II analyzer captures power quality measurements for avionic and military power systems
- Troubleshoot real-time: Analyze the trends using the cursors and zoom tools
- Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
- Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places
- Automatic Trending: Every measurement is always automatically recorded, without any set-up
- System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
- Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
- View graphs and generate reports: With included analysis software
>

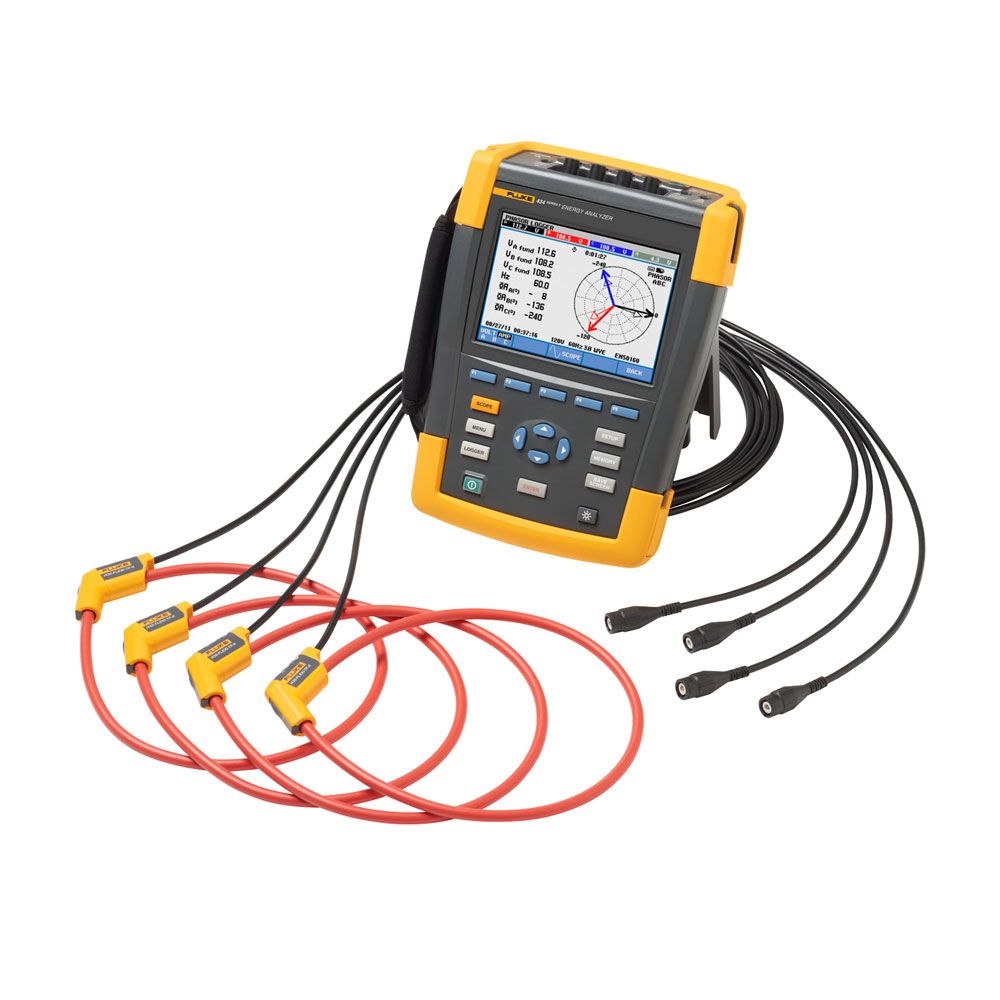

Each Unit Includes
- BC430 Power Adapter
- International plug adapter set
- BP290 (Single capacity Li-ion battery) 28Wh (7 hours or more)
- Leads TL430 Test lead and Alligator clip set
- Color coding WC100 color coding clips and regional decals
- Flexible current probes i430flex-TF, 24 inch (61cm) length
- 8 GB SD card (32GB optionally)
- PowerLog on CD (includes operator manuals in PDF format)
- USB cable A-Bmini
- Carrying case C1740 Soft Case
