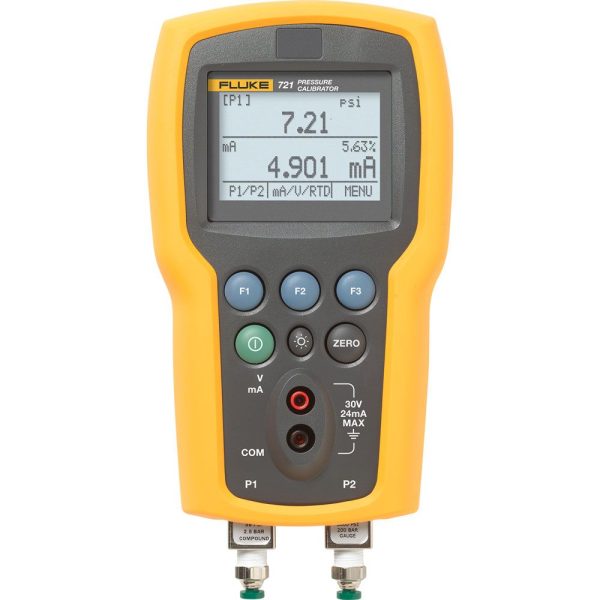

Fluke 721-1610 Dual Sensor Pressure Calibrator – 16 PSIG & 1000 PSIG
Roll over image to zoom in
$1.429
Dual-sensor pressure calibrator with 16 PSIG and 1000 PSIG ranges, 0.025% accuracy, RTD input, and support for external pressure modules—ideal for custody transfer and gas flow calibration.
Fluke 721-1610 Dual Sensor Pressure Calibrator 16 PSIG, 1000 PSIG
The Fluke 721-1610 Dual Sensor Pressure Calibrator is built for high-accuracy pressure measurement and calibration, particularly in custody transfer and gas flow applications. Featuring two isolated stainless steel sensors rated at 16 PSIG and 1000 PSIG with 0.025% of full-scale accuracy, this calibrator is designed to handle both low- and high-pressure tasks with confidence.
It supports a Pt100 RTD input for temperature measurement, and includes functionality to measure 4–20 mA signals, check 24 V loop power supplies, and display up to three inputs simultaneously on its large backlit screen. Expandable via Fluke 700 Series external pressure modules, the 721-1610 offers unmatched flexibility in field calibration tasks.
Key Features
-
Dual pressure sensors: 16 PSIG and 1000 PSIG, stainless steel, isolated
-
High accuracy: ±0.025% of full scale on both sensors
-
RTD input for temperature measurement (Pt100, probe optional)
-
Measures 4–20 mA current loop signals
-
Built-in 24 V loop power for transmitter testing
-
External pressure module compatible (29 Fluke 700 Series modules)
-
Backlit graphical display shows up to 3 inputs at once
-
Store and recall up to 5 instrument setups
-
NIST-traceable calibration certificate included
Why Choose the Fluke 721-1610?
-
Designed for Custody Transfer: Meet the demanding standards of gas flow calibration.
-
Dual Sensor Versatility: Handle both low and high-pressure applications with one tool.
-
Seamless Integration: Compatible with pressure modules and loop-powered transmitters.
-
Trusted Fluke Reliability: Backed by a 3-year warranty and built to last in field conditions.
What’s Included
-
Fluke 721-1610 Dual Sensor Pressure Calibrator (16 PSIG & 1000 PSIG)
-
Soft carrying case
-
Four (4) AA batteries
-
Test leads
-
Traceable NIST calibration certificate
-
User manual
Technical Specifications
| Parameter | Details |
|---|---|
| Pressure Ranges | 16 PSIG, 1000 PSIG |
| Accuracy | ±0.025% of full scale (both sensors) |
| Maximum Resolution | 0.001 psi |
| Absolute Pressure Support | Yes |
| Differential Pressure Support | Yes |
| Gauge Pressure Support | No |
| Built-in Pump | No |
| RTD Input | Pt100 (probe optional) |
| mA Measurement | Yes (4–20 mA) |
| Loop Power Output | 24 V DC |
| Voltage Measurement | Up to 30 V DC |
| External Pressure Module Support | Yes (Fluke 700 Series, 29 ranges) |
| Data Logging | No |
| Display | Backlit graphical LCD, triple input |
| Power Supply | 4x AA batteries |
| Battery Life | Up to 35 hours |
| Warranty | 3 years |
| IP Rating | IP40 |
| Weight | 1.19 lbs (instrument), 4.13 lbs (ship) |
| Dimensions (HxWxL) | 2.3 x 4.3 x 7.9 in |
| Country of Origin | China |
Applications
-
Custody transfer calibration
-
Gas and liquid flow measurement verification
-
Pressure transmitter testing and validation
-
On-site calibration in oil & gas, utilities, and process industries
