Name: Fluke 725
SKU: 664133
Availability: InStock

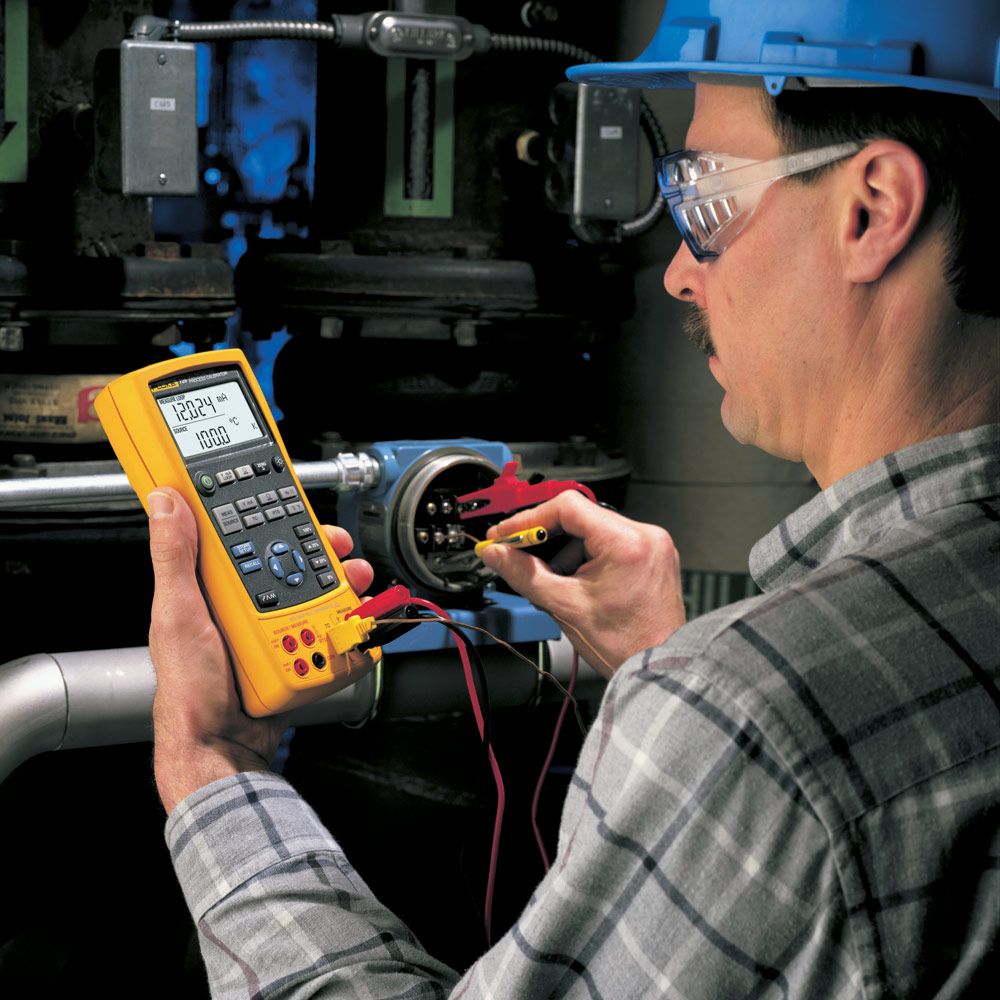

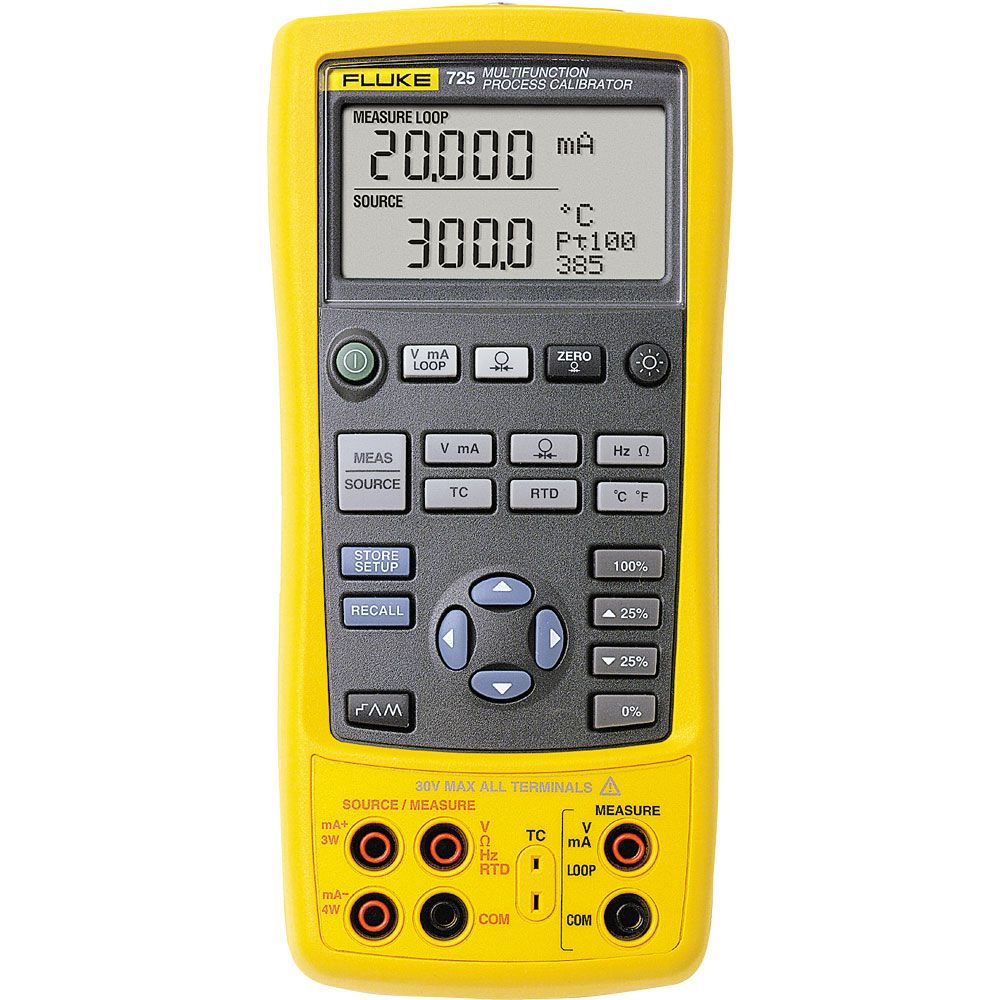

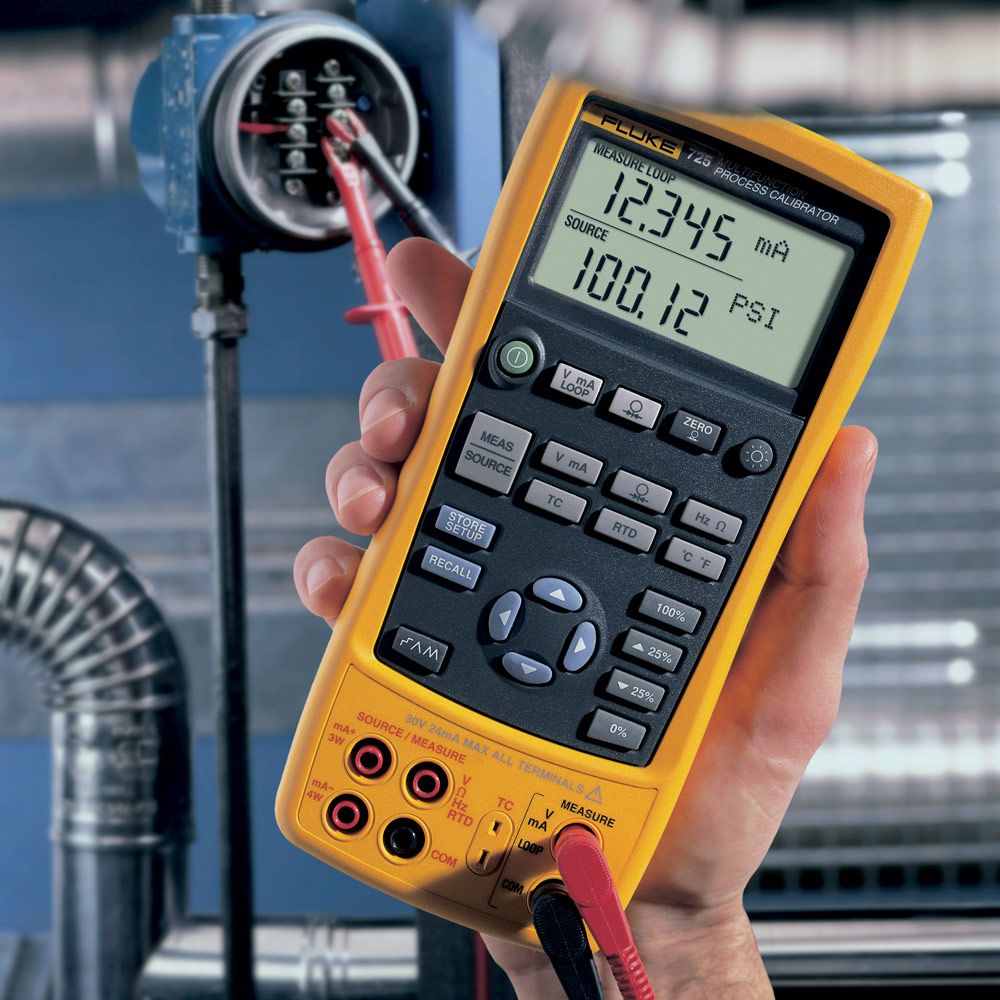

Fluke Model 725
Measure volts, mA, RTDs, thermocouples, frequency, and ohms
Source/simulate volts, mA, RTDs, thermocouples, frequency, and ohms
Measure and source pressure using Fluke 700P series pressure modules
Dual display shows input and output
Built in 24V loop power supply
Programmable step and ramp for automated testing
Powered by 4 AA batteries (25 hours typical operation)
Size/weight 7.9 x 3.8 x 1.9

Each Unit Includes

TL75 Test Leads
AC70 Test Clips
One pair of stackable test leads
Product Overview Manual
Users Manual
CD-Rom
3 Year Warranty
CE and CSA markings

Measurement Accuracy
Voltage DC	30.000 V	0.02% 2 counts (upper display)
30.000 V	0.02% 2 counts (lower display)
100.00 mV	0.02% 2 counts
-10.00 mV to 75.00 mV	0.025% 1 count (via TC connector)
Current DC	24.000 mA	0.02% 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Frequency	2.0 to 1000.0 CPM	0.05% 1 count
1.0 to 1100.0 Hz	0.05% 1 count
1.00 to 10.00 kHz	0.05% 1 count
Sensitivity	1 V peak-to-peak-minimum
Pressure	Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
Source Accuracy
Voltage DC	100.00 mV	0.02% 2 counts
10.000 V	0.02% 2 counts
-10.00 mV to 75.00 mV	0.025% 1 count (via TC connector)
Current DC	24.000 mA (source)	0.02% 2 counts
24.000 mA (simulate)	0.02% 2 counts
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
Frequency	2.0 to 1000.0 CPM	0.05%
1.0 to 1100.0 Hz	0.05%
1.00 to 10.00 kHz	0.25%
Waveform	5 V p-p squarewave, -0.1 V offset
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
PT-100 (385)	0.33°C
PT-100 (393)	0.3°C
PT-100 (JIS)	0.3°C
PT-200 (385)	0.2°C
PT-500 (385)	0.3°C
PT-1000 (385)	0.2°C
Resolution	0.1°C
J	0.7°C
K	0.8°C
T	0.8°C
E	0.7°C
R	1.8°C
S	1.5°C
B	1.4°C
L	0.7°C
U	0.75°C
N	0.9°C
Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
XK	0.6°C
BP	1.2°C
Source accuracy	NI-120	0.2°C
PT-100 (385)	0.33°C
PT-100 (393)	0.3°C
PT-100 (JIS)	0.3°C
PT-200 (385)	0.2°C
PT-500 (385)	0.3°C
PT-1000 (385)	0.2°C
Resolution	0.1°C
Accuracy stated for 4-wire measurement.
J	0.7°C
K	0.8°C
T	0.8°C
E	0.7°C
R	1.4°C
S	1.5°C
B	1.4°C
L	0.7°C
U	0.75°C
N	0.9°C
Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
XK	0.6°C
BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
Accuracy	10%
Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-20°C to 71°C
Operating altitude	3000 m
Safety Specifications
Agency approvals	EN 61010-1:1993, ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992
Mechanical and General Specifications
Size	130 x 236 x 61 mm
Weight	0.65 kg
Batteries	4 AA alkaline batteries
Battery replacement	Separate battery compartment, accessable without breaking calibration seal
Side port connections	Pressure module connector, also used for remote real-time programming
