Fluke Networks DSX2-5000QI/GLD: The Ultimate 1 GHz Quad OLTS Inspector with Wi-Fi

Fluke Networks DSX2-5000QI/GLD 1 GHz Cable Analyzer with Quad OLTS, Inspection Camera, Wi-Fi & 1-Year Gold Support.

The Fluke Networks DSX2-5000QI/GLD is a top-tier, high-performance cable certification analyzer from the Versiv™ 2 platform, engineered to deliver unparalleled speed, accuracy, and versatility for both copper and fiber optic networks. This model includes the Quad OLTS module, a fiber inspection probe, integrated Wi-Fi, and 1 year of Gold Support, making it ideal for enterprise, data center, and industrial cabling environments.

Perfect for testing Cat 6A / 8 / Class FA / Class I & II, it meets and exceeds TIA Level 2G accuracy—the most stringent standard available. With its Taptive™ touchscreen interface, LinkWare™ Live cloud connectivity, and ProjX™ project management, this cable analyzer enables teams to streamline workflows, reduce rework, and accelerate certification timelines.

Looking for simpler solutions? Explore our Cable & Antenna Analyzers or see the full Network Analyzer collection.

Want to compare features? Visit our product comparison page or consider the Fluke DSX2-8000QOI CableAnalyzer for even higher bandwidth certification needs.

Key Features:

• Supports certification up to Cat 8 / Class II / 1 GHz

• Dual Copper + Fiber Capability via DSX-5000 and Quad OLTS modules

• Taptive™ UI with gesture-based navigation for fast setup and fewer errors

• ProjX™ Management System ensures all tests are complete and accurate

• LinkWare™ Live cloud system for remote tester setup and result management

• Graphical diagnostics of failures like crosstalk, return loss, and shielding

• TIA Level 2G Accuracy, Intertek Verified

• USB video inspection probe with multiple tips included

Technical Specifications:

Copper Testing

• Certification for Cat 6A, 7, 8 / Class FA, I, II

• Frequency Range: up to 1 GHz

• Fault Analysis: Crosstalk, Return Loss, Shield Faults

Fiber Testing

• Test Types: OLTS, Inspection

• Fiber Types: Multimode (MM), Single Mode (SM)

• Wavelengths Supported: 850 nm, 1300 nm, 1310 nm, 1550 nm

General Attributes

• Country of Origin: United States

• Dimensions:

  • Height: 12.00 in

  • Width: 16.00 in

  • Length: 17.00 in

• Memory: Yes

• Connectivity: Wi-Fi, USB

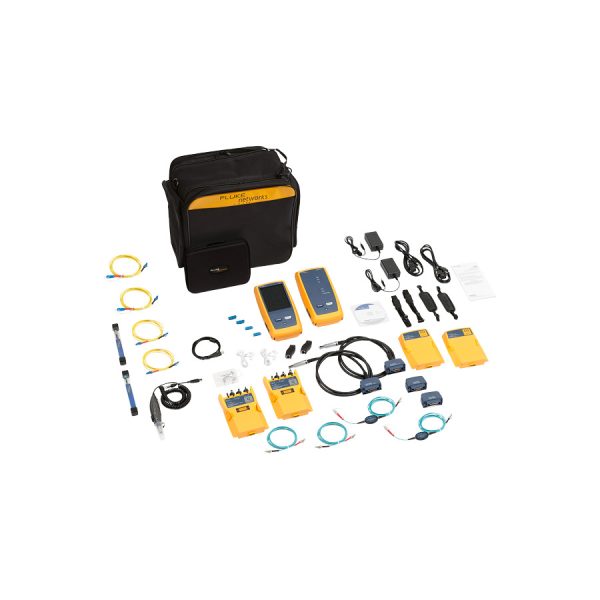

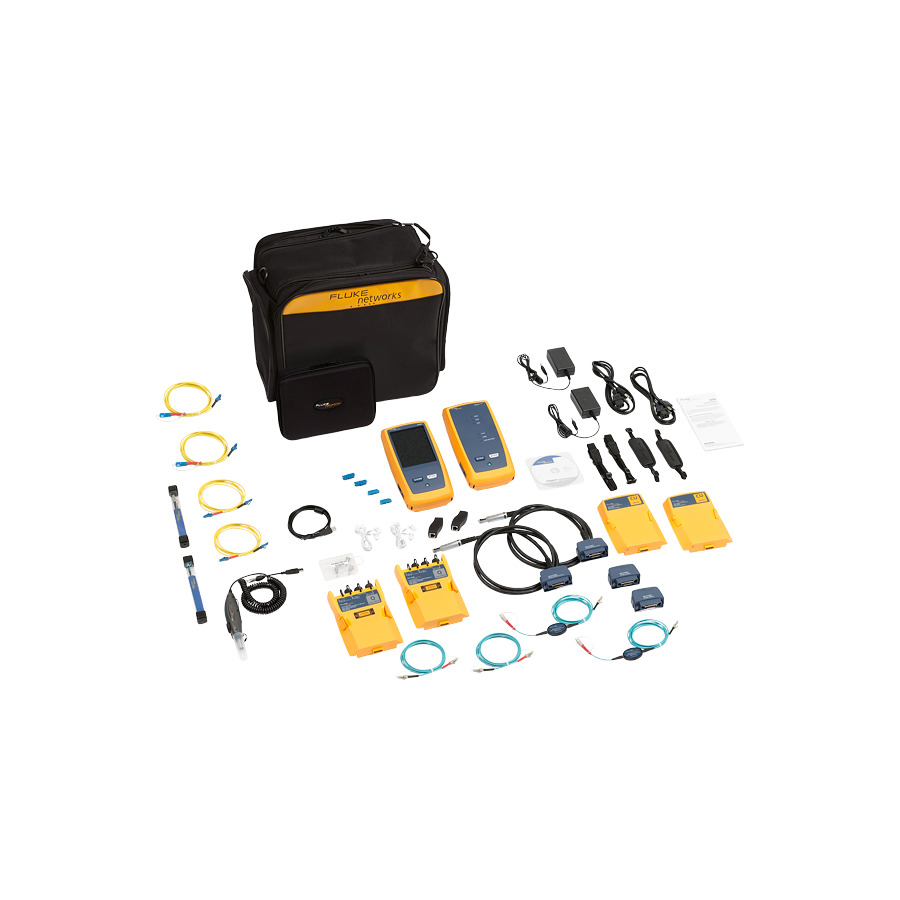

What’s in the Box:

• 1x Versiv Mainframe & Remote

• (2x) DSX-5000 CableAnalyzer Modules

• (2x) CertiFiber Pro Quad OLTS Modules

• Set of Cat 6A Permanent Link & Channel Adapters

• USB Video Inspection Probe with 4 Tips

• 2x Quick Clean Cleaners (1.25mm / 2.50mm)

• SC/LC Multimode & Singlemode TRC Kits with Carry Case

• (2x) Headsets, Hand Straps, Shoulder Straps

• Carrying Case, USB Interface Cable, AC Chargers

• Universal Couplers, Software CD, Calibration Statement

• 1-Year Gold Support Plan
