Fluke Pressurements P3011-KPA-P
Roll over image to zoom in
$10.190
Precision vacuum deadweight tester with built-in pneumatic hand pump. Operates from 3 to 100 kPa with ±0.015% reading accuracy, ideal for calibrating vacuum instruments with laboratory-grade performance.

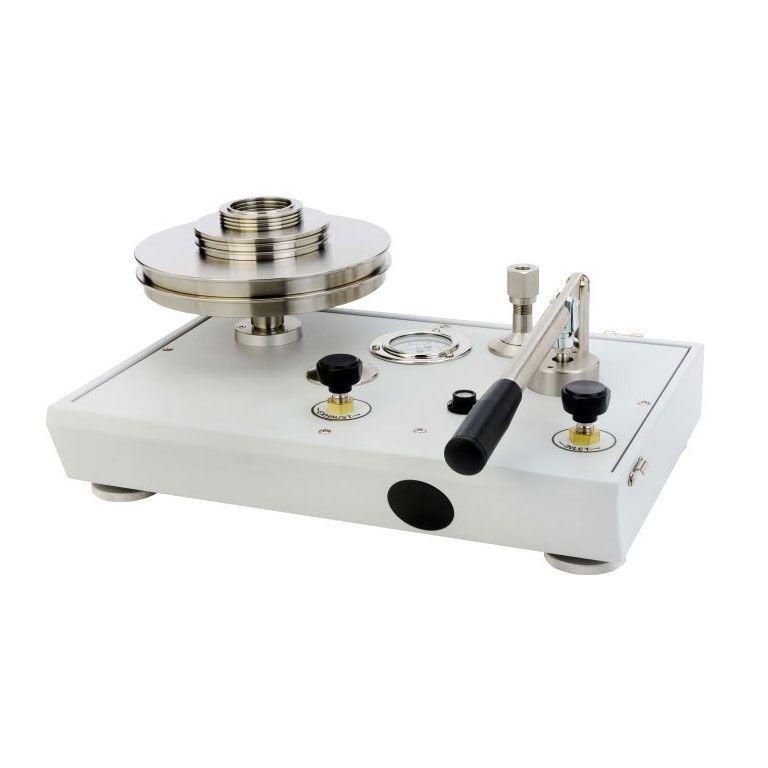

Fluke Pressurements P3011-KPA-P Vacuum Deadweight Tester Single Pressure With Pump.
The Fluke Pressurements P3011-KPA-P Vacuum Deadweight Tester is a high-precision, single-pressure vacuum calibration standard engineered for reliable performance in laboratory and field environments. Designed to operate from 3 to 100 kPa, this deadweight tester is ideal for calibrating vacuum gauges, transmitters, and sensors with accuracy better than ±0.015% of reading (with optional ±0.008%).
Equipped with a built-in pneumatic hand pump and robust piston-cylinder design, the P3011-KPA-P offers unmatched stability, repeatability, and pressure control without the need for PTFE tape or tools—making it user-friendly and efficient.
Key Features
-
Vacuum Range: 3 to 100 kPa (single PCU)
-
Accuracy: ±0.015% of reading (or ±0.008% with enhanced option)
-
Piston-Cylinder System: Ceramic piston and martensitic steel cylinder for high thermal stability (11 ppm/°C)
-
Integrated Pneumatic Hand Pump: Enables vacuum generation up to 90%
-
Multiple Pressure Units: Supports psi, bar, kgf/cm², kPa, and MPa
-
No External Tools Required: O-ring sealing system eliminates the need for PTFE tape
-
Compact and Durable: 17.5″ x 12″ x 8.5″ housing, 24 lbs instrument weight
-
Optional Accessories: Fractional weights, PressCal calibration software, Krytox fluid for oxygen-safe operations
Why Choose the P3011-KPA-P?
For calibration professionals who demand precision and repeatability, the P3011-KPA-P stands out with its ceramic piston technology and highly stable design. Whether you’re validating pressure transmitters or performing vacuum calibrations, this unit ensures confidence in every reading. Additionally, its intuitive test station design and durable build reduce setup time and minimize operator error.
What’s Included
-
Fluke P3011-KPA-P Vacuum Deadweight Tester
-
Built-in pneumatic hand pump (vacuum mode)
-
1/8″, 1/4″, 3/8″, and ½ NPT or BSP test port adapters
-
Standard weight set (65 lbs typical)
-
Mounted spirit level and adjustable feet
-
User documentation
-
Calibration certificate
Technical Specifications
| Parameter | Specification |
|---|---|
| Accuracy | ±0.015% of reading (±0.008% optional) |
| Vacuum Range | 3 to 100 kPa |
| Piston Material | Ceramic |
| Cylinder Material | Martensitic steel |
| Coefficient of Expansion | 11 ppm/°C |
| Operating Mode | Vacuum only (single PCU) |
| Pressure Mode Capability | Optional with other models |
| Instrument Weight | 24 lbs (10.9 kg) |
| Mass Set Weight (typical) | 65 lbs (29.5 kg) |
| Size (W x D x H) | 17.5 x 12 x 8.5 in |
| Test Port Adaptors | 1/8″, 1/4″, 3/8″, ½” NPT or BSP |
| Vacuum Generation | Up to 90% vacuum |
| ECCN Number | EAR99 |
| Country of Origin | United States |
Applications
-
Calibration of vacuum transmitters, gauges, and sensors
-
Laboratory and field calibration in power plants, process industries, and research environments
-
Precision testing in compliance with ISO/IEC 17025 standards
