Hioki IM9100: Precision SMD Test Fixture for IM35XX LCR Meters

Features and Specifications: Hioki IM9100 SMD Test Fixture for IM35XX Series LCR

Product Overview:

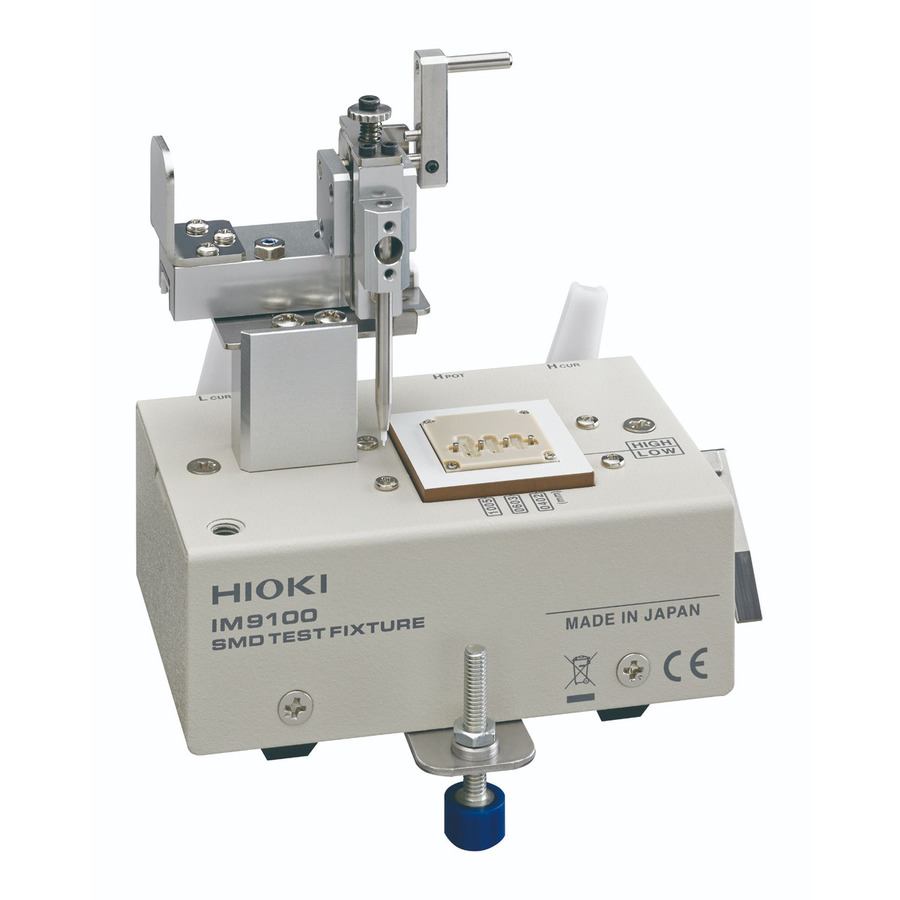

The Hioki IM9100 SMD Test Fixture is a high-performance test fixture designed for use with the IM35XX series LCR meters. It provides a stable and reliable connection to surface-mount devices (SMDs), enabling accurate and repeatable measurements.

Features:

Wide range of SMD compatibility: Supports various SMD sizes and packages, including 0201, 0402, 0603, 0805, 1206, and 1210.
High-precision alignment: Precision-machined contacts ensure accurate alignment and reliable contact with SMD terminals.
Low contact resistance: Minimizes measurement errors caused by contact resistance.
Easy operation: Simple and intuitive design allows for quick and easy setup.
Durable construction: Robust construction ensures long-term reliability and durability.

Specifications:

Supported SMD sizes: 0201 to 1210
Contact resistance: <10 mΩ
Inductance: <1 nH
Capacitance: <1 pF
Dimensions: 100 mm (W) x 100 mm (D) x 50 mm (H)
Weight: 0.5 kg

What\’s in the Box:

Hioki IM9100 SMD Test Fixture
User manual

Benefits:

Accurate and repeatable measurements: Ensures reliable and consistent results.
Increased efficiency: Simplifies SMD testing and reduces measurement time.
Improved productivity: Enables faster and more efficient testing of multiple SMDs.
* Cost savings: Reduces the need for multiple test fixtures and minimizes measurement errors.

Value to the Customer:

The Hioki IM9100 SMD Test Fixture provides a comprehensive solution for accurate and efficient SMD testing. It offers a wide range of compatibility, high precision, and ease of use, making it an essential tool for engineers and technicians in various industries.
