Hioki IM9202: Precision Test Fixture for Impedance Analysis (DC-600 MHz)

Features and Specifications: Hioki IM9202 Test Fixture for IM7581-01 Impedance Analyzer, DC-600 MHz

Product Overview:

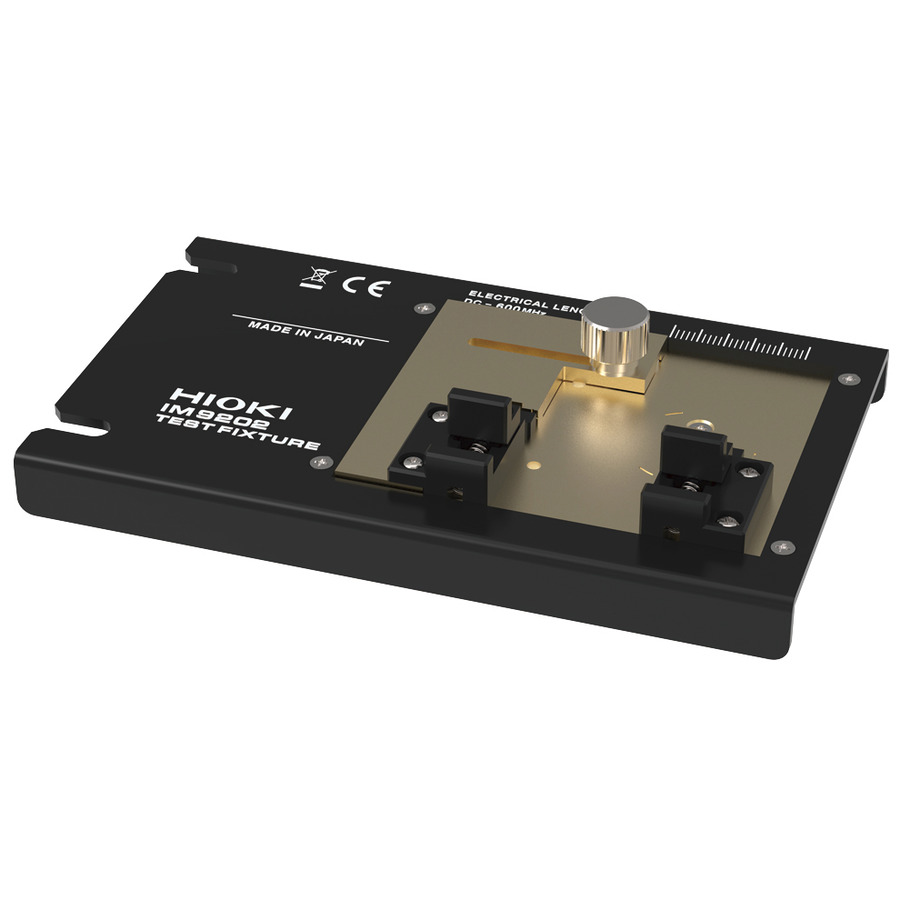

The Hioki IM9202 Test Fixture is a high-performance test fixture designed for use with the Hioki IM7581-01 Impedance Analyzer. It provides a stable and reliable connection between the analyzer and the device under test (DUT), ensuring accurate and repeatable impedance measurements.

Features:

Wide frequency range: DC to 600 MHz
Low insertion loss: <0.1 dB at 100 MHz
High isolation: >60 dB at 100 MHz
Compact and lightweight design
Easy to use and maintain

Frequency range: DC to 600 MHz
Insertion loss: <0.1 dB at 100 MHz
Isolation: >60 dB at 100 MHz
Maximum voltage: 30 V
Maximum current: 1 A
Dimensions: 100 mm x 70 mm x 25 mm
Weight: 150 g

What\’s in the Box:

Hioki IM9202 Test Fixture
User manual

Benefits:

Enables accurate and repeatable impedance measurements
Reduces measurement errors caused by parasitic effects
Improves the efficiency of impedance testing
Extends the capabilities of the Hioki IM7581-01 Impedance Analyzer

Value to the Customer:

The Hioki IM9202 Test Fixture is an essential accessory for anyone who needs to perform accurate and reliable impedance measurements. It provides a stable and reliable connection between the analyzer and the DUT, ensuring that the measurements are not affected by parasitic effects. This makes it an ideal choice for a wide range of applications, including:

Component testing
Circuit board testing
Antenna testing
Material characterization
