Imada ZTS-LM-11
Roll over image to zoom in
$1,040.00
High-precision digital force gauge with a remote button sensor, ideal for compression force measurement in tight or hard-to-reach areas—up to 11 lbs / 5 kg / 50 N capacity.
Imada ZTS-LM Series [ZTS-LM-11] Standard Digital Force Gauge with Remote Button Sensor – 11 lbs / 5 kg / 50 N.

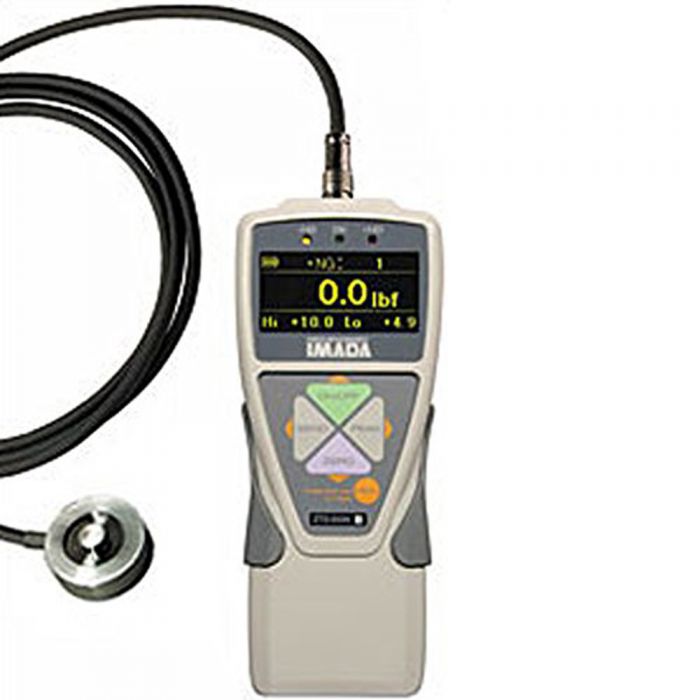

The Imada ZTS-LM-11 Digital Force Gauge is a compact, high-accuracy device equipped with a remote button sensor, perfect for measuring compression force in confined or difficult-to-access spaces. Part of the advanced ZTS-LM Series, this force gauge delivers fast data acquisition, versatile functionality, and high-visibility display features—all in a durable, ergonomic design.
For professionals seeking to maintain long-term precision in measurement instruments, refer to our guide:
➡️ How to Maintain Accuracy in Calipers and Micrometers: Best Practices for Long-Term Precision in Dimensional Measurement
Browse more solutions in:
➡️ Force Measurement
➡️ Dimensional Measuring Tools
Key Features:
-
Remote Button Sensor with 6-foot cable for tight-space compression testing
-
Measures up to 11 lbs / 5 kg / 50 N (compression only)
-
Color-coded LED indicators for instant Go/No-Go feedback
-
High sampling rate of 2,000 data/sec for real-time processing
-
Electroluminescent (EL) display is readable in low-light conditions
-
Multi-language menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
-
USB, RS-232C, Digimatic, and analog outputs for seamless data transfer
-
Overload capacity up to 200% of full scale (F.S.)
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | ZTS-LM-11 |
| Capacity | 11 lbs / 5 kg / 50 N (Compression only) |
| Sensor Type | Remote Button Sensor |
| Cable Length | 6 ft (1.8 m) |
| Display | Electroluminescent (EL), multi-function |
| Sampling Rate | 2,000 data/sec |
| Memory Capacity | 1,000 data (recall or download) |
| Communication Interfaces | USB, RS-232C, Digimatic, Analog |
| Overload Protection | 200% Full Scale (F.S.) |
| Power Source | Internal Ni-MH battery or AC adapter |
| Modes | Real-time, Peak Hold |
| Software Compatibility | ZT Logger, Force Recorder (optional) |
Included Accessories:
-
(1) Full Set of Attachments
-
(1) Remote Button Sensor with 6′ Cable
-
(1) ZT Logger Data Acquisition Software
-
(1) USB Cable
-
(1) AC Adapter/Charger
-
(1) Calibration Certificate (NIST Traceable)
-
(1) Hard Carrying Case
Ideal Applications:
Electronics assembly, medical device testing, automotive part inspection, R&D labs, and any industry where precision force measurement in constrained areas is essential.
