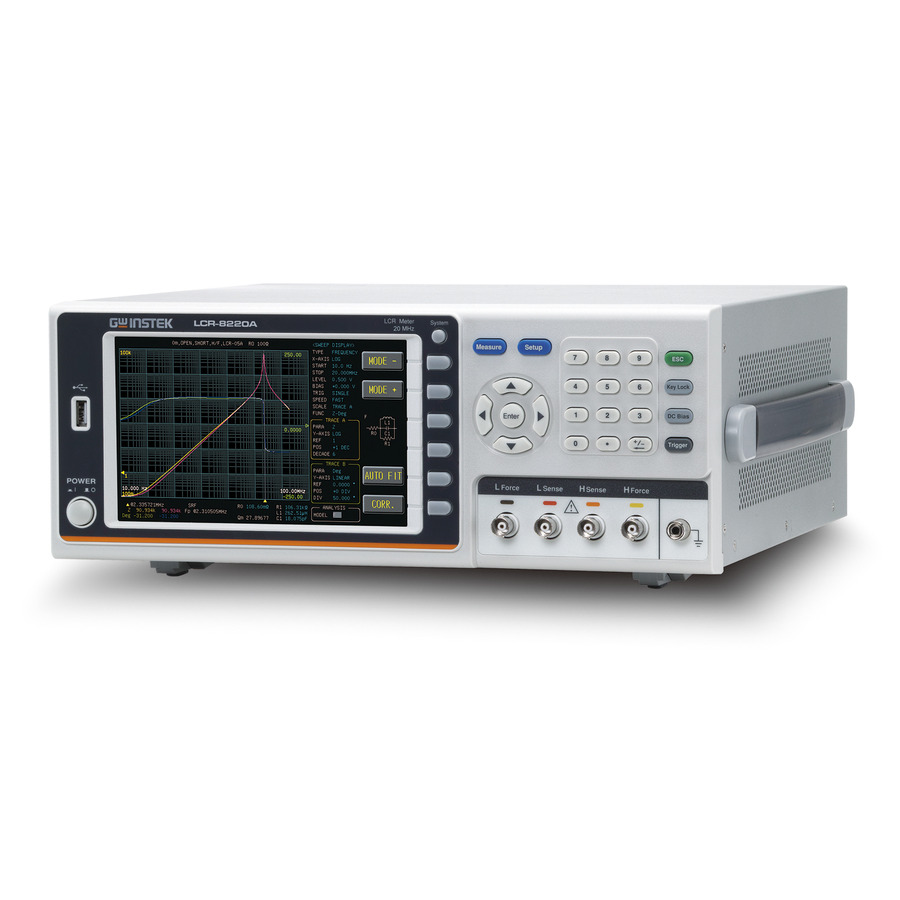

Instek LCR-8220A: Precision LCR Meter with Wide Frequency Range and Connectivity Options
Roll over image to zoom in
$15.379
Instek LCR-8220A LCR Meter: 10 Hz-20 MHz, 6 Digits, USB, GPIB, LAN, RS-232. Precision LCR measurement with advanced features for component analysis and testing.
Features and Specifications: Instek LCR-8220A LCR Meter
Product Overview:
The Instek LCR-8220A is a high-performance LCR meter designed for precise measurement of inductance, capacitance, and resistance. With a wide frequency range of 10 Hz to 20 MHz and a 6-digit resolution, it offers exceptional accuracy and versatility.
Features:
Wide frequency range: 10 Hz to 20 MHz
High resolution: 6 digits
Basic accuracy: 0.05%
Measurement parameters: L, C, R, D, Q, ESR, Z, θ
Multiple measurement modes: single, continuous, and sweep
Built-in bias voltage and current sources
USB, GPIB, LAN, and RS-232 interfaces
Large, backlit LCD display
Compact and portable design
Specifications:
Inductance:
Range: 0.0001 μH to 1000 H
Accuracy: ±0.05%
Capacitance:
Range: 0.0001 pF to 100 mF
Accuracy: ±0.05%
Resistance:
Range: 0.0001 Ω to 100 MΩ
Accuracy: ±0.05%
Frequency:
Range: 10 Hz to 20 MHz
Resolution: 0.01 Hz
What\’s in the Box:
LCR-8220A LCR Meter
Test leads
Calibration certificate
User manual
Benefits:
High accuracy and resolution: Ensures precise and reliable measurements.
Wide frequency range: Covers a wide range of applications, from low-frequency components to high-frequency circuits.
Multiple measurement modes: Provides flexibility for different measurement scenarios.
Built-in bias sources: Allows for characterization of components under bias conditions.
Versatile connectivity: Enables easy integration into automated test systems.
Compact and portable: Convenient for field use or benchtop applications.
Value to the Customer:
The Instek LCR-8220A LCR Meter offers exceptional value to customers by providing:
Accurate and reliable measurements: Ensures confidence in test results.
Versatility and flexibility: Meets the needs of a wide range of applications.
Ease of use: Simplifies testing and reduces operator error.
* Compact and portable: Enhances productivity and efficiency.
