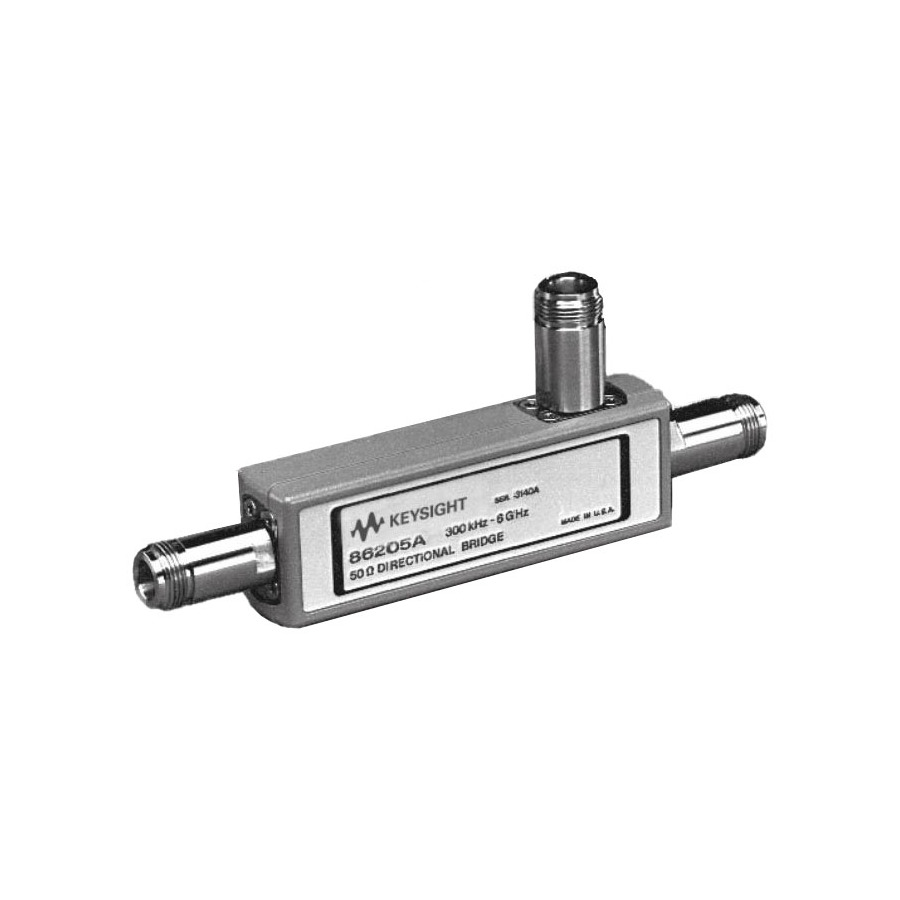

Keysight 86205A RF Bridge: Precision Measurement for 300 kHz to 6 GHz

Keysight 86205A RF Bridge, 50 Ohm, 300 kHz to 6 GHz, 8620xx Series

Product Overview

The Keysight 86205A RF Bridge is a high-performance, 50 Ohm RF bridge that operates from 300 kHz to 6 GHz. It is designed for use in a wide variety of applications, including impedance matching, filter design, and antenna testing. The 86205A offers excellent accuracy and repeatability, making it an ideal choice for demanding applications.

Features and Specifications

Frequency range: 300 kHz to 6 GHz
Impedance range: 0.1 to 1000 ohms
Accuracy: ±0.1 dB
Repeatability: ±0.05 dB
VSWR: <1.2:1
Insertion loss: <0.5 dB
Return loss: >20 dB
Power handling: 100 mW
Dimensions: 1.75\” x 1.75\” x 0.75\”
Weight: 4 ounces

Benefits

High accuracy and repeatability
Wide frequency range
Excellent VSWR and insertion loss
Compact size and lightweight
* Easy to use

Value

The Keysight 86205A RF Bridge is a valuable tool for a wide variety of applications. Its high accuracy and repeatability make it an ideal choice for demanding applications, while its wide frequency range and excellent VSWR and insertion loss make it suitable for a variety of measurements. The 86205A is also compact and lightweight, making it easy to use and transport.
