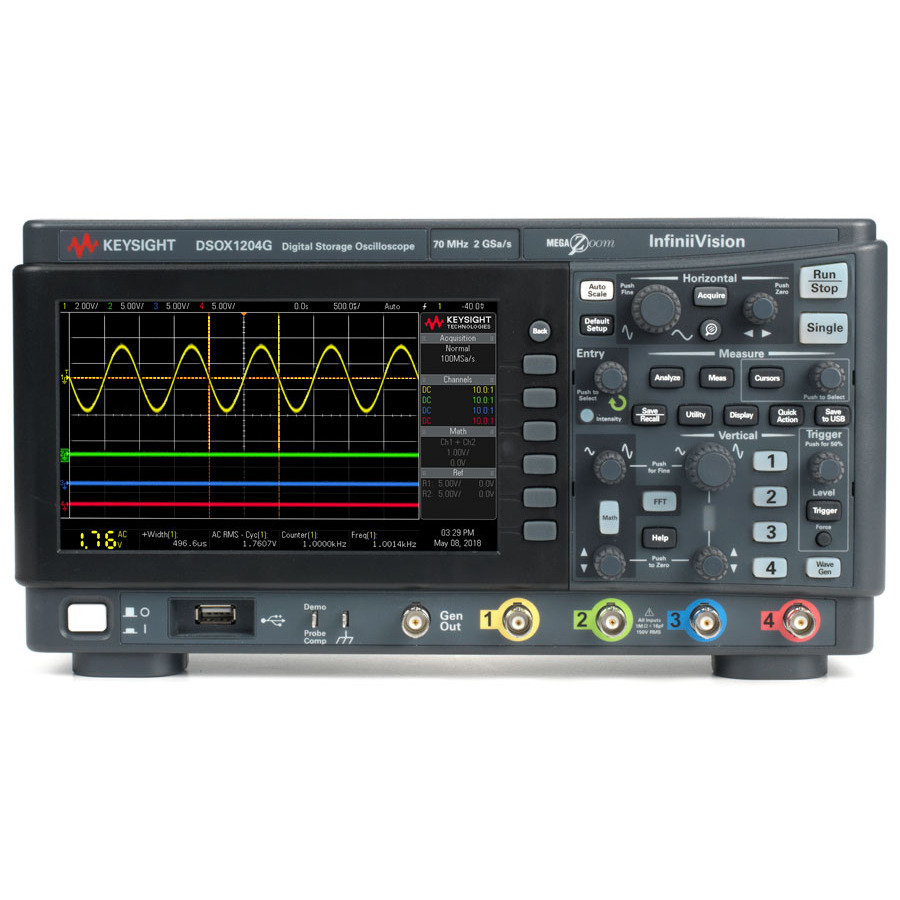

Keysight DSOX1204G: 4-Channel Digital Oscilloscope with WaveGen for Precision Analysis
Roll over image to zoom in
$1.140
A feature-rich 4-channel digital oscilloscope designed for education, R&D, and embedded debugging. Includes integrated 20 MHz function generator and protocol analysis for I2C, SPI, CAN, and more.
Keysight DSOX1204G – 70 MHz 4-Channel Digital Oscilloscope with 20 MHz Function Generator.
The Keysight DSOX1204G is part of the InfiniiVision 1000 X-Series, offering a powerful and intuitive solution for engineers, educators, and embedded system developers. With 4 analog channels, 70 MHz bandwidth, and a built-in 20 MHz waveform generator (WaveGen), this oscilloscope is ideal for debugging a wide range of applications—from analog circuits to serial protocol analysis.
Easily upgradeable to 200 MHz bandwidth, the DSOX1204G combines advanced triggering, math functions, mask testing, and FFT capabilities into a compact benchtop unit. The oscilloscope also includes standard PathWave BenchVue software for automated testing, report generation, and seamless integration with tools like MATLAB and Excel.
Key Features:
-
Bandwidth: 70 MHz (upgradeable to 200 MHz)
-
Channels: 4 Analog Channels
-
Integrated 20 MHz Function Generator (WaveGen)
-
Sample Rate: 2 GSa/s
-
Memory Depth: 2 Mpts
-
Display: 7-inch high-resolution screen
-
Serial Protocol Analysis: I²C, SPI, UART/RS-232, CAN, LIN (standard)
-
Advanced Functions: Mask testing, FFT, math functions
-
Update Rate: Up to 200,000 wfms/sec
-
Built-in 3-digit Voltmeter and Frequency Counter
-
PathWave BenchVue Software (included) for data export and test automation
Why Choose the Keysight DSOX1204G?
-
All-in-One Debugging Tool: Combines oscilloscope, function generator, voltmeter, and frequency counter.
-
Protocol Decode Included: No need to purchase additional licenses for popular serial bus analysis.
-
Future-Proof Design: Upgradeable bandwidth protects your investment.
-
Educational Friendly: Interface and built-in help support over a dozen languages, ideal for global classrooms.
What’s Included:
-
(4) N2140A 200 MHz Switchable Passive Probes (10:1/1:1)
-
Certificate of Calibration
-
PathWave BenchVue Software
-
Localized Power Cord
-
Standard 3-Year Warranty
-
Secure Erase Feature
-
Multilingual GUI and Help System
Technical Specifications
| Specification | Value |
|---|---|
| Bandwidth | 70 MHz |
| Channels | 4 |
| Sampling Rate | 2 GSa/s |
| Memory Depth | 2 Mpts |
| Rise Time | ≤5 ns |
| Logic Channels | None |
| Function Generator | 20 MHz (integrated) |
| Display Size | 7 inches |
| Resolution (Vertical) | 8 bits |
| Weight (Net) | 7.1 lbs |
| Dimensions (HxWxD) | 6.5 x 12.4 x 5.1 in |
| Shipping Weight | 9.2 lbs |
| Warranty | 3 Years (standard) |
Applications:
-
Embedded System Debugging
-
Educational Labs and Training
-
Power Supply Testing
-
Automotive Protocol Analysis (CAN, LIN)
-
General Analog and Digital Design Verification
