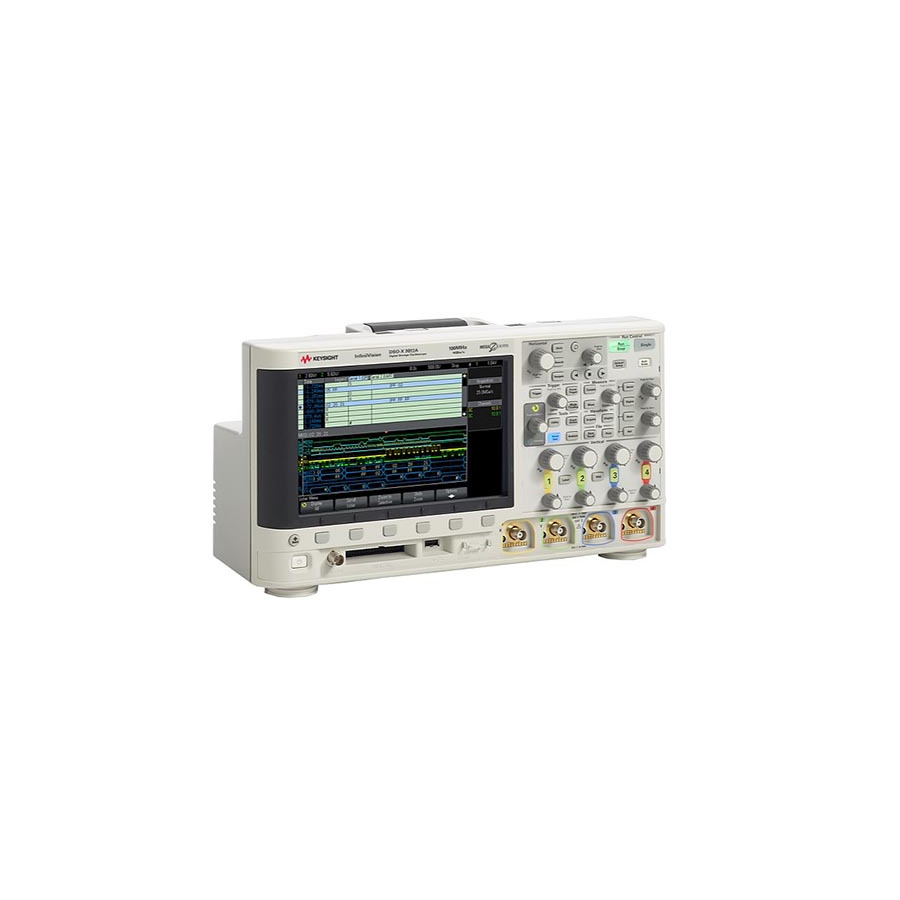

Keysight DSOX3014A: 4-Channel Digital Oscilloscope with 100 MHz Bandwidth, 2 Mpts Memory, 4 GS/s Sample Rate, and 8-bit Resolution

Keysight DSOX3014A – Digital Oscilloscope (100 MHz / 4 Channels).

Engineered for precise signal diagnostics, the Keysight DSOX3014A delivers real-time visibility with 1,000,000 waveforms per second, making it ideal for identifying elusive glitches and transient events. This oscilloscope features 100 MHz bandwidth, 4 analog channels, and a sampling rate up to 4 GSa/s, enabling accurate capture of fast digital signals and analog waveforms.

Built on the Keysight InfiniiVision 3000X platform, it also includes a WVGA 8.5-inch display, standard segmented memory, and the option to upgrade with 20 MHz waveform/function generator and protocol analysis. The Secure Erase feature complies with NISPOM Chapter 8 for data-sensitive environments, ensuring safe removal of user preferences and stored data.

🔎 For accurate signal probing and measurement, explore:
👉 How to Use Oscilloscope Probes Correctly for Accurate Waveform Analysis in 2025
📘 For full workflow mastery:
👉 Mastering Oscilloscopes: A 2025 Guide to Signal Diagnostics and Waveform Analysis

Key Features:

• Bandwidth: 100 MHz

• Channels: 4 analog

• Sampling Rate: Up to 4 GSa/s

• Memory: 2 Mpts (standard), upgradeable to 4 Mpts

• Waveform Update Rate: 1,000,000 wfm/s

• Display: 8.5″ high-resolution WVGA screen

• Rise Time: 3.5 ns

• Voltmeter & Counter: 3-digit voltmeter and 5-digit frequency counter

• Segmented Memory: Enables capture of multiple triggered waveforms for efficient analysis

• Secure Erase: Clears user data with a single command

• Waveform Generator (Optional): 20 MHz arbitrary/function generator

• MSO Upgradeable: Logic channels can be added post-purchase

Included Accessories:

• (1x) Keysight DSOX3014A Oscilloscope

• (4x) N2862B Passive Probes, 150 MHz, 10:1 attenuation

• Certificate of Calibration (2-year interval)

• Power Cord

• Printed Documentation / Quick Start Guide
