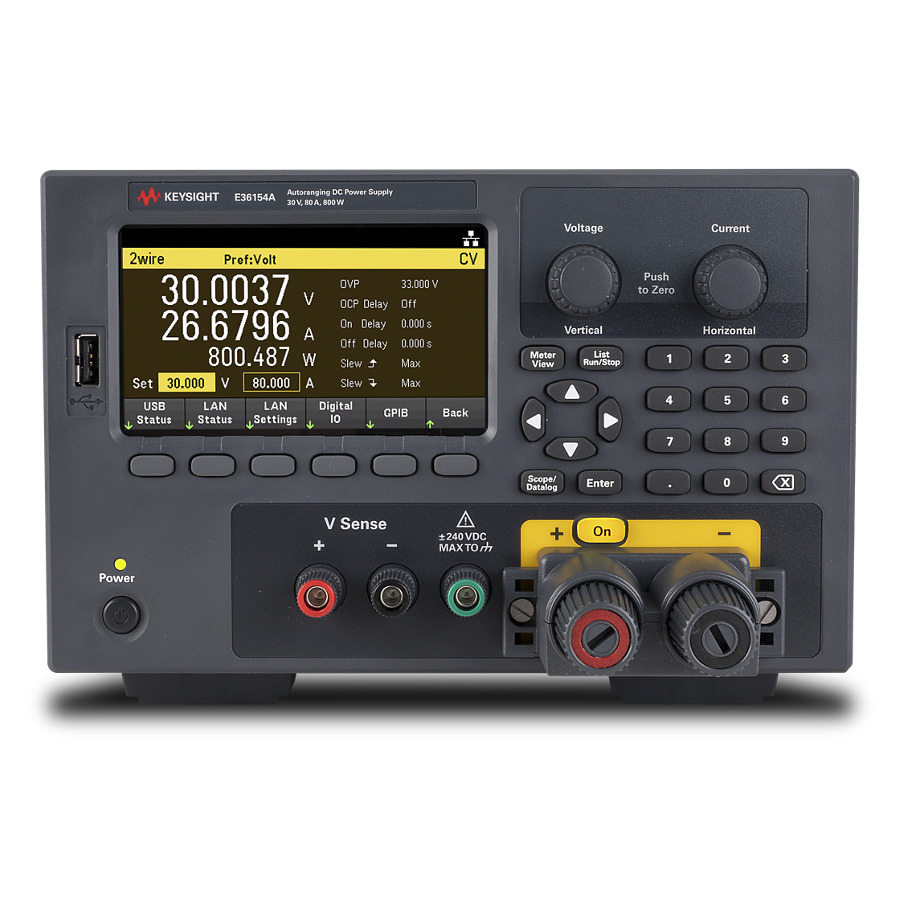

Keysight E36154AGVX Power Supply Bundle, 30V, 80A, 800W, ScopeView, AWG, Auto Apps
Roll over image to zoom in
$3.190
High-performance auto-ranging benchtop DC power supply offering up to 800W output with 30V/80A range, enhanced with oscilloscope, arbitrary waveform generator (AWG), and automotive test features—ideal for advanced electronics and automotive testing.
Keysight E36154AGVX – Auto-ranging Benchtop Power Supply (30V/80A/800W) with Oscilloscope/AWG and Automotive Options.
The Keysight E36154AGVX is part of the E36150A Series and is designed for engineers demanding flexibility, speed, and high-power handling. This model delivers 30V and 80A output, supports up to 800W total power, and handles peak power loads up to 2400W—making it perfect for both steady-state and dynamic load conditions.
Bundled with oscilloscope and AWG capabilities (E36150ADVU) and automotive testing functions (E36150ATMU), this power supply is ideal for bench testing, R&D validation, and automotive electronics development.
Key Features
-
Auto-ranging output: 30V / 80A / 800W for flexible test scenarios
-
Peak power handling: Up to 3x max rating (2400W burst)
-
Integrated options:
-
E36150ADVU: Adds oscilloscope and arbitrary waveform generator
-
E36150ATMU: Enables automotive testing protocols and protections
-
-
Remote sense: 2-wire and 4-wire supported
-
Removable high-current front binding post
-
Connectivity: LAN/LXI, USB standard; optional GPIB
-
User-friendly digital interface with high-resolution display
Why Choose the Keysight E36154AGVX?
-
All-in-one solution for DC power delivery, waveform generation, and real-time measurement
-
Suited for automotive, power electronics, and embedded system validation
-
Comes ready with enhanced options—no need for separate instrumentation
-
Backed by Keysight’s trusted reliability and intuitive user interface
🔍 Looking for similar models? Browse our full range of Single DC Power Supplies to find the right fit for your test bench.
What’s Included
-
Keysight E36154A with:
-
E36150ADVU Oscilloscope & AWG Option
-
E36150ATMU Automotive Option
-
-
AC power cord
-
Detachable front binding post
Technical Specifications
| Attribute | Details |
|---|---|
| Output Channels | Single |
| Max Output Voltage | 30 V |
| Max Output Current | 80 A |
| Max Output Power | 800 W (2400 W peak handling) |
| Output Type | Variable |
| Programmable | Yes |
| Meter Type | Digital |
| Display Resolution (Current) | 3 mA |
| Display Resolution (Voltage) | 1 mV |
| Remote Sensing | Yes (2-wire/4-wire) |
| Interfaces | LAN/LXI, USB, optional GPIB |
| Unique Features | Includes oscilloscope, AWG, automotive functions |
| Input Voltage | 120V, 50/60 Hz |
Applications
-
Automotive ECU and sensor testing
-
Power electronics characterization
-
Embedded system prototyping
-
Battery simulation and charging profiles
-
Dynamic load testing with waveform injection
