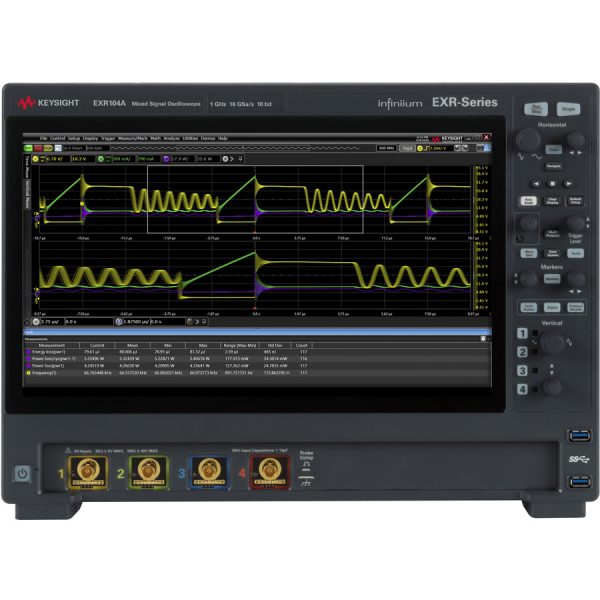

Keysight EXR104A: 4-Channel, 1 GHz, 100 Mpts, 16 GS/s, 10-bit Mixed Signal Oscilloscope
Roll over image to zoom in
$20.183
Keysight EXR104A Mixed Signal Oscilloscope: 4-channel, 1 GHz bandwidth, 100 Mpts memory depth, 16 GS/s sample rate, 10-bit resolution, EXR-Series.
Keysight EXR104A – Digital Oscilloscope (1 GHz / 4 Channels).
The Keysight EXR104A Infiniium Real-Time Oscilloscope delivers outstanding performance for engineers who demand high accuracy, speed, and usability in advanced test environments. Featuring 1 GHz bandwidth, 16 GSa/s sampling rate on all channels, and 100 Mpts standard memory, this oscilloscope is built for precise signal capture and deep analysis.
As part of our Digital Oscilloscopes category, the EXR104A combines cutting-edge measurement technology with a user-friendly 15.6-inch capacitive multi-touch display and powerful debug features such as Fault Hunter, high-resolution 16-bit mode, and over 50 standard automated measurements.
For engineers working in power quality and energy efficiency testing, the EXR104A provides unmatched insight into waveform behavior. To maximize your oscilloscope’s potential, we recommend reading our educational guide: How to Use Oscilloscopes for Power Quality Analysis: A Practical Guide for Engineers and Technicians.
Key Features
-
1 GHz Bandwidth across 4 analog channels.
-
16 GSa/s Sample Rate on all channels for uncompromised accuracy.
-
100 Mpts Standard Memory (upgradeable with options).
-
15.6” Multi-Touch Display for intuitive navigation and analysis.
-
High Update Rate – over 200,000 waveforms per second.
-
Mixed-Signal Capability – optional 16-channel digital input support.
-
10-bit ADC Resolution (expandable to 16-bit in high-resolution mode).
-
Fault Hunter – automatic detection and evaluation against user-defined criteria.
-
Over 50 Standard Measurements including eye diagrams, protocol decode, and jitter analysis.
Technical Specifications
| Specification | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 analog (optional 16 logic channels) |
| Sample Rate | 16 GSa/s |
| Memory Depth | 100 Mpts (upgradeable) |
| Rise Time | 430 ps (0.43 ns) |
| Update Rate | >200,000 waveforms/s |
| Resolution | 10-bit (up to 16-bit in high-res mode) |
| Display | 15.6\” capacitive touchscreen |
| Product Weight | 30 lbs |
| Dimensions (H x W x D) | 12.99\” x 17.32\” x 9.06\” |
| Shipping Weight | 34.5 lbs |
| Calibration | 1-year factory calibration certificate included |
In the Box
-
1x N2873A 500 MHz Passive Probe (per channel)
-
Probe accessory pouch
-
BNC calibration cable
-
Localized power cord
-
Front panel hard cover
-
Keyboard and mouse
-
Keysight I/O libraries suite, user guide, and programmer’s guide (preloaded)
Why Choose the Keysight EXR104A?
The EXR104A combines precision, speed, and versatility, making it an indispensable tool for R&D labs, power analysis, and digital system validation. Whether you’re analyzing high-speed digital signals or testing for power quality compliance, this oscilloscope ensures reliable measurements and simplified workflows.
Browse our complete range of Digital Oscilloscopes to find the ideal solution for your test and measurement needs.
