Keysight N7026A: Precision Current Probe for High-Sensitivity Measurements
Roll over image to zoom in
$4.580
Keysight N7026A High-Sensitivity Current Probe: Accurately measure AC/DC currents from 1 mA to 40 A with a wide bandwidth of 150 MHz and high voltage tolerance of 300 V. Its compact 5mm probe tip and 1.5m cable provide flexibility and convenience.
Keysight N7026A High-Sensitivity Current Probe, AC/DC, 1 mA, 30 A, 150 MHz, 300 V, 5mm, 40 A, 1.5m
The Keysight N7026A high-sensitivity current probe is designed for engineers who require accurate, low-noise current measurements across a wide bandwidth. Offering exceptional sensitivity down to 1 mA/div and supporting peak current measurements up to 40 A, this AC/DC probe is compatible with both InfiniiVision and Infiniium oscilloscopes via the high-impedance AutoProbe interface.
Its robust bandwidth of DC to 150 MHz makes it a versatile choice for capturing high-speed transient signals in advanced applications such as power electronics, motor drives, digital ICs, and inductive load switching.
Key Features
-
Wide bandwidth: DC to 150 MHz
-
High sensitivity: Down to 1 mA/div
-
Peak current support:
-
Up to 40 Apeak (with external AC adapter)
-
Up to 15 Apeak (via AutoProbe interface)
-
-
Continuous current measurement:
-
30 Arms (with AC adapter)
-
5 Arms (without adapter)
-
-
Degauss and offset calibration: Integrated push-button functionality
-
AutoProbe compatibility: For seamless integration with Keysight oscilloscopes
-
Compact form factor: Slim jaw with 5 mm max conductor diameter and 1.5 m cable
Why Choose the Keysight N7026A?
-
Ideal for low-current, high-frequency signal measurements
-
Minimize noise and offset error with built-in degauss and auto-calibration
-
Works seamlessly with a wide range of Keysight scopes using the AutoProbe interface
-
Dual power options provide flexibility for field and bench use
-
Capture dynamic current signals with unmatched clarity and speed
What’s Included
-

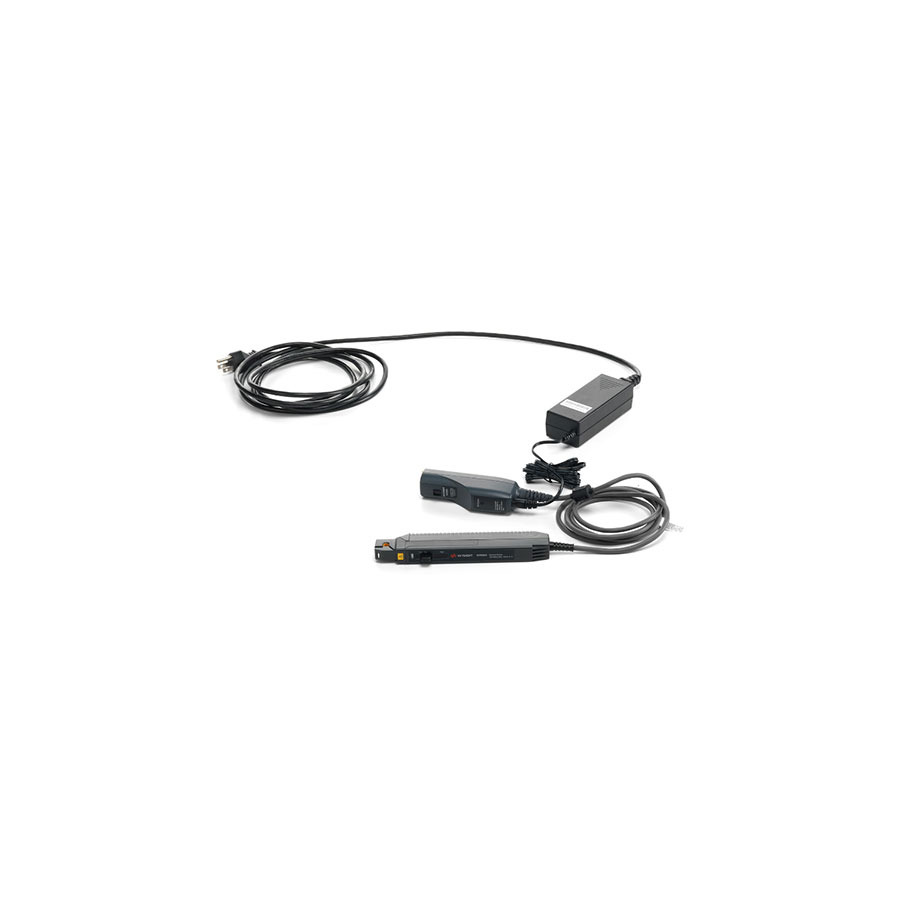

Keysight N7026A Current Probe
-
User manual
-
(Optional) External AC power adapter
Technical Specifications
| Attribute | Value |
|---|---|
| Bandwidth | DC to 150 MHz |
| Minimum Current | 1 mA |
| Maximum Peak Current | 40 A (non-continuous) |
| Continuous Current Range | 30 Arms (with adapter) |
| Max Input Voltage | 300 V |
| Cable Length | 1.5 m |
| Max Wire Diameter | 5 mm |
| Input Coupling | AC/DC |
| Compatible Series | 3000XT, 5000/6000/7000, 4000X, 6000X, S-Series |
| Probe Interface | High-Impedance AutoProbe |
Applications
-
Transient current monitoring in switching regulators
-
IC and microcontroller current profiling
-
Inverter and motor drive development
-
EMI/RFI diagnostics
-
Automotive and industrial electronics testing
