Keysight P9377B Vector Network Analyzer: Unlocking Precision in RF and Microwave Testing
Roll over image to zoom in
$43.370
Compact 2-port vector network analyzer with 100 kHz to 44 GHz range and Thunderbolt 3 interface, ideal for high-speed S-parameter testing in R&D and production.
Keysight P9377B/001 – Streamline Thunderbolt 3 Vector Network Analyzer (100 kHz to 44 GHz); Two Port

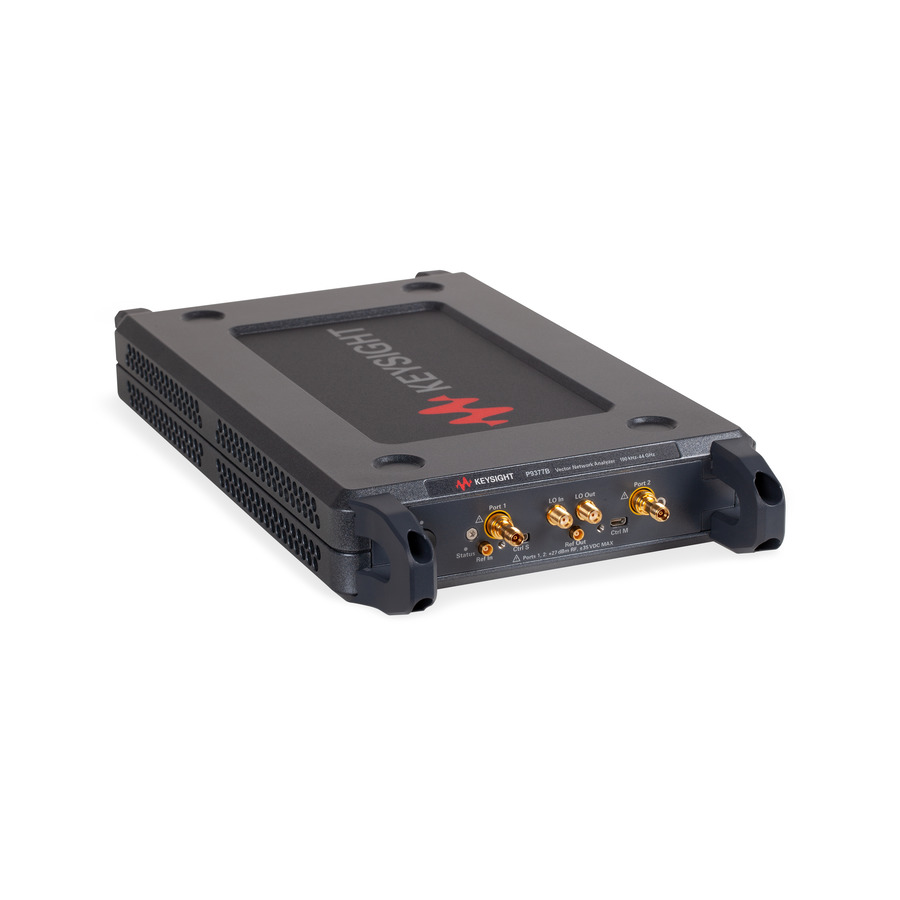

The Keysight P9377B/001 is a compact, 2-port Vector Network Analyzer (VNA) that delivers wide frequency coverage from 100 kHz to 44 GHz, leveraging Thunderbolt™ 3 connectivity for ultra-fast data transfers and real-time performance. Designed for engineers who demand high accuracy, portability, and flexibility, it enables precise S-parameter measurements in both lab and field environments.
This streamlined VNA is faceless and PC-controlled, meaning it operates entirely via an external laptop or desktop, reducing bench clutter and improving test setup efficiency.
Key Features
-
Frequency Range: 100 kHz to 44 GHz
-
Ports: 2-port full S-parameter test capability
-
Interface: Thunderbolt 3 for high-speed data throughput
-
Form Factor: Compact, fanless, PC-controlled (faceless)
-
Measurement Science: Same UI, SCPI commands, and measurement engine as Keysight’s PNA Series
-
Calibration Support: Compatible with ECal and mechanical cal kits (sold separately)
-
Portability: Lightweight and ideal for multi-site or shared use
-
Expandable: Cascade with another P937xB series unit to increase test ports (option required)
-
Software: Includes network analyzer activation license and supports PathWave software tools
Why Choose the P9377B/001?
The Keysight Streamline Series offers best-in-class performance in a portable format. With Thunderbolt 3 connectivity, you can achieve the same precision and speed as benchtop analyzers in a reduced footprint, perfect for both R&D labs and international field projects. Ideal for modern RF applications including 5G, aerospace, radar, and satellite component testing.
Planning cross-border test deployments? Check this out:
📘 How to Source Certified Test and Measurement Equipment for International Projects
What’s Included
-
Keysight P9377B/001 Streamline VNA Unit
-
Thunderbolt 3 cable
-
Activation license for VNA functionality
-
Power adapter and cables
-
Quick Start Guide and Calibration Certificate
-
Keysight IO Libraries Suite
Technical Specifications
| Specification | Detail |
|---|---|
| Frequency Range | 100 kHz to 44 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 117 dB typical |
| Trace Noise | < 0.005 dB rms |
| Noise Floor | -107 dB |
| Interface | Thunderbolt 3, USB-C |
| Form Factor | Faceless (controlled via PC) |
| Calibration Compatibility | ECal and mechanical cal modules |
| Dimensions & Weight | Compact, portable design |
| Warranty | 3 Years |
Applications
-
S-parameter testing in R&D and production
-
RF component characterization (amplifiers, filters, antennas)
-
5G, satellite, and radar systems
-
On-site or remote validation of high-frequency devices
-
International test projects requiring compact instrumentation
