Keysight Technologies U2000H

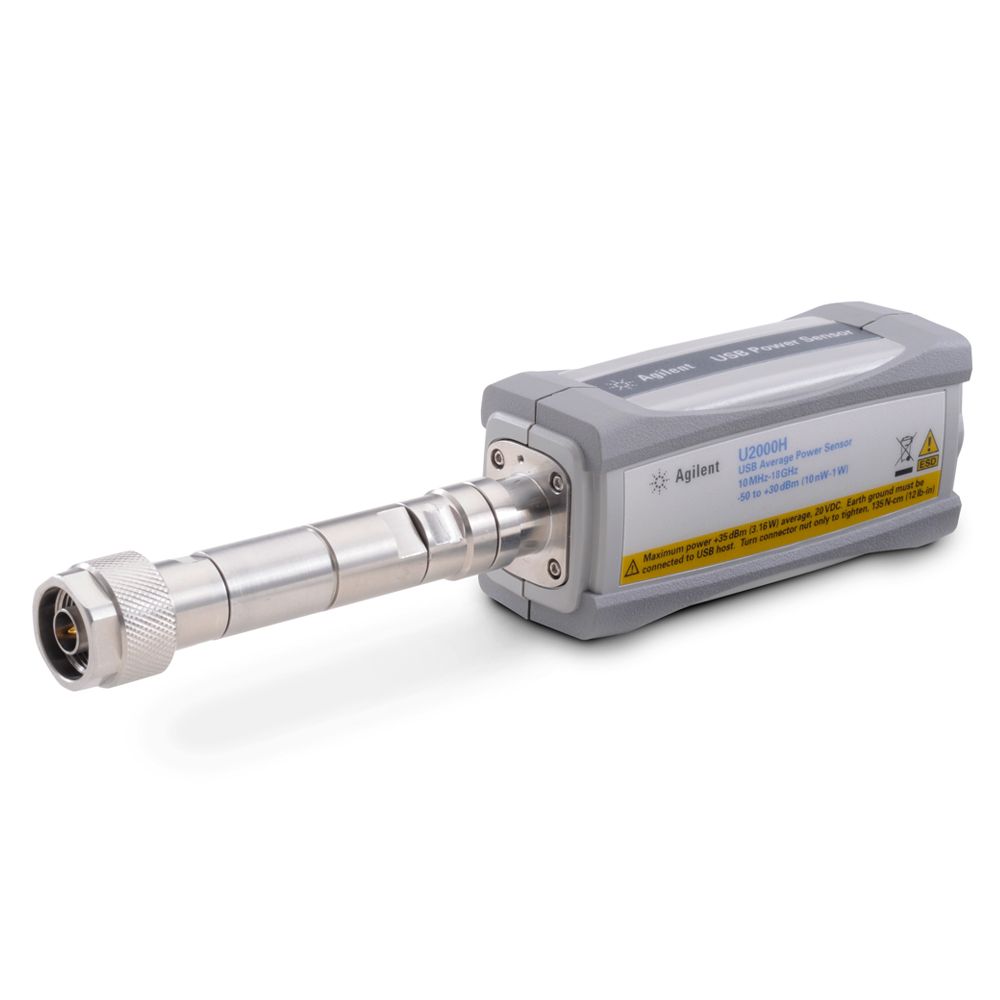

Keysight U2000H – USB Power Sensor (10 MHz to 18 GHz; -50 to +30 dBm)

Overview:

The Keysight U2000H USB Power Sensor delivers accurate and efficient RF power measurements across a wide dynamic range, from -50 dBm to +30 dBm, in a compact USB-powered form. Covering 10 MHz to 18 GHz, this sensor is perfect for CW and modulated signal testing without the need for a traditional power meter or reference calibrator.

With direct USB connection to a PC and compatibility with Keysight BenchVue software, it offers a streamlined, cable-free experience for automated testing, data logging, and remote measurements, all from your laptop or workstation.

⭐ Key Features:

• Frequency Range: 10 MHz to 18 GHz

• Power Measurement Range: -50 dBm to +30 dBm

• Sensor Technology: Diode-based for fast and accurate response

• Triggering: Supports internal/external triggering and trace display

• Connectivity: USB plug-and-play; no external power required

• No Need for Reference Calibrator: Simplifies setup and calibration

• BenchVue Compatible: Comes with BenchVue BV0007B license for power sensor control and visualization

• Cable Options:

  • Standard 5 ft power sensor cable

  • Optional: 10 ft (Option 302) or 16.4 ft (Option 303)

🎯 Why Choose the U2000H?

The U2000H is ideal for high-frequency power measurements in R&D, field service, and manufacturing test environments. Whether analyzing satellite communication systems, microwave devices, or wireless transmitters, its wide range and plug-and-play USB interface enable high-throughput and reliable testing. It’s a perfect fit when space, simplicity, and speed matter.

📦 What’s Included:

• Keysight U2000H USB Power Sensor Unit

• 5-ft Power Sensor Cable

• Trigger Cable (BNC Male to SMB Female, 1.5 m)

• Certificate of Calibration

• Documentation CD-ROM

• Instrument Control DVD

• Keysight I/O Libraries Suite

• BenchVue BV0007B Software License

📊 Technical Specifications:

🔧 Applications:

• RF power measurement in wireless systems, broadcasting, and satcom

• Production test environments requiring high-throughput testing

• Portable RF test setups for field calibration

• Integration with automated test systems using PC control
