Martel Electronics 3001

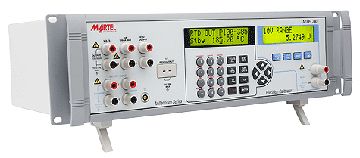

Martel Electronics 3001 Precision Lab Standard Calibrator.

The Martel Electronics 3001 is a high-precision lab standard calibrator engineered for demanding calibration environments where accuracy, reliability, and flexibility are critical. With an accuracy of up to ±0.0025% of reading and a fully isolated readback channel, this calibrator is ideal for sourcing and measuring voltage, current, resistance, RTDs, thermocouples, and pressure (read-only).

Designed for both benchtop and rack use, the 3001 supports digital and rotary control, as well as full remote control via RS232, USB, and IEEE-488 interfaces. It is compatible with Fluke Met/Cal and supports popular pressure modules including Fluke 700 series, BetaPort, and Mensor 6100 Series.

---

Key Features

• Ultra-High Accuracy: ±0.0025% of reading for voltage and current

• Isolated Readback Channel: Prevents measurement interference

• Multi-Sensor Support: Includes 13 T/C types and 9 RTD types

• Pressure Readback: Compatible with up to 10,000 psi modules

• Built-In 24V Loop Power with internal 250Ω HART™ resistor

• Dual Control Options: Rotary knob and tactile keypad

• Remote Connectivity: RS232, USB, and IEEE-488

• Fluke Met/Cal Compatible

---

Technical Specifications

Voltage Output Ranges:

• 0–100 mV (1 µV res)

• 0–1 V (10 µV res)

• 0–10 V (100 µV res)

• 0–100 V (1 mV res)

• Accuracy: ±0.003% of reading ± offset

Current Output:

• 0–100 mA (1 µA res)

• Accuracy: ±0.005% of reading ± 1 count

• Max Load: 10V

Thermocouple Simulation & Measurement:

• Types: J, K, T, E, R, S, N, B, L, U, C, BP, XK

• Accuracy Example: Type J ±0.14 °C typical

RTD Simulation & Measurement:

• Types: Pt100 (385, 392, 3916), Cu10, Ni120, YSI400, SPRT

• Accuracy Example: Pt100 (385): ±0.02 °C typical

Resistance (4-Wire):

• Ranges: 5–4000 Ω

• Resolution: 0.001–0.01 Ω

• Accuracy: Up to ±0.002 Ω

Isolated Measurement Channel:

• Voltage: 0–100 V ±0.005% ± 2 mV

• Current: 0–52 mA ±0.01% ± 1 µA

Pressure Read-Only Support:

• Compatible with Fluke 700, BetaPort, and Mensor 6100

• Up to 10,000 psi range

---

General Specifications

• Loop Power Output: 24 VDC ±10%, max 24 mA

• Internal HART™ Resistor: 250Ω ±3%

• Display: Dual 16 x 2 character LCD with backlight

• Power Input: 90–240 VAC, <15 VA

• Dimensions: 5″ x 19″ x 11″ (12.7 x 48.3 x 27.9 cm)

• Weight: 10.5 lbs (4.8 kg)

• Country of Origin: China

---

What’s Included

• Martel 3001 Precision Calibrator

• AC Power Cord

• User Manual

• Thermocouple Jumper Cable

• NIST-Traceable Calibration Certificate

---

Applications

This calibrator is perfect for use in:

• Calibration laboratories

• Quality assurance departments

• Industrial R&D

• Manufacturing test stations

Its isolated measurement channel and ultra-high precision make it ideal for environments where accuracy and traceability are non-negotiable.
