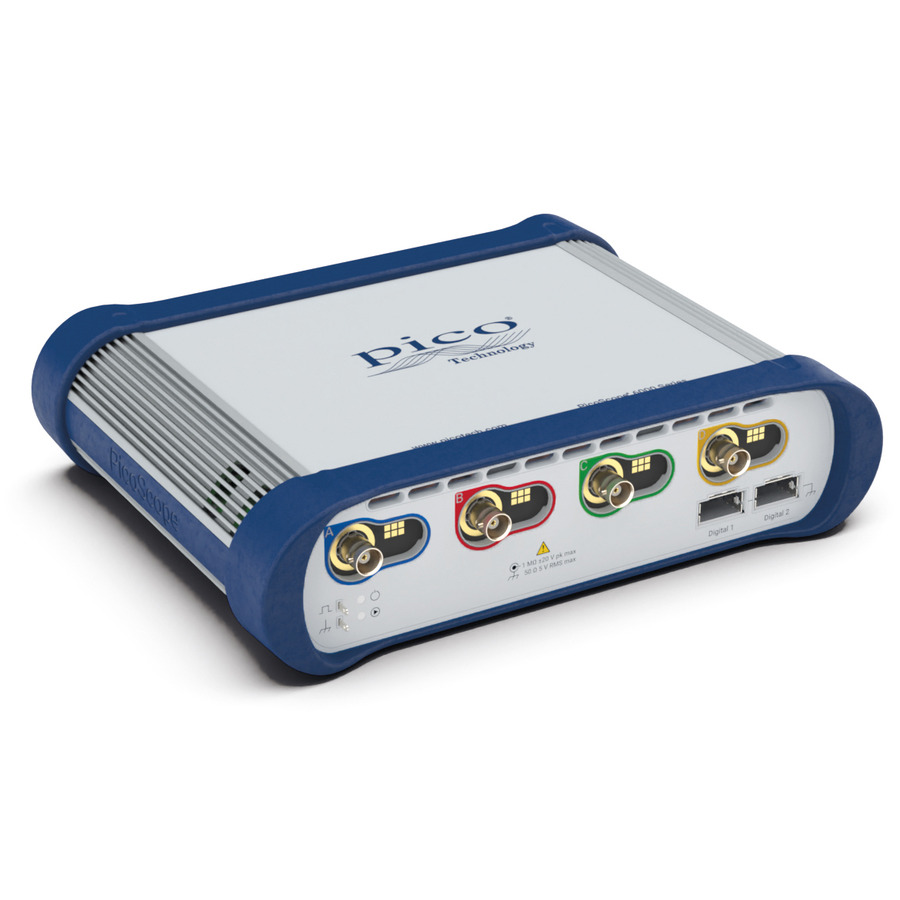

Pico Technology 6424E PC USB Oscilloscope
$5.780
Pico Technology 6424E PC Oscilloscope – 500 MHz, 4CH, 4GS | with FlexRes 8–12-bit resolution and 4 GS memory—perfect for advanced embedded and signal integrity applications.
Pico Technology 6424E PC USB Oscilloscope, 500 MHz, 4CH, 8-12Bits, 4GS, 6000E Series
Product Overview
The Pico Technology 6424E PC USB Oscilloscope is a high-resolution instrument designed for demanding measurement applications in R&D labs and engineering environments. With 500 MHz analog bandwidth, 4 analog input channels, and 8–12 bits FlexRes vertical resolution, it delivers both speed and accuracy in signal acquisition. The oscilloscope offers a deep memory of 4 GS and a rise time of under 850 ps, making it ideal for signal integrity testing, glitch detection, and embedded system diagnostics.
This model is part of the PC-Based Oscilloscopes collection and the powerful PicoScope 6000E Series, trusted by professionals in signal processing, power electronics, and academic research.
Need a more mobile solution for field diagnostics? Check out our expert guide:
👉 Best Handheld Oscilloscopes for Field Use: Top Picks for Engineers, Technicians, and On-Site Diagnostics (2025 Edition)
Key Features & Specifications
-
Bandwidth: 500 MHz (–3 dB)
-
Channels: 4 analog input
-
Vertical Resolution: FlexRes 8, 10, or 12 bits
-
Memory Depth: 4 GS
-
Rise Time: < 850 ps
-
Bandwidth Limiting: Selectable 20 MHz
-
Input Connector: BNC (f), probe readout-pin compatible
-
Advanced Trigger Modes: Edge, window, pulse width, logic, dropout, etc.
-
Waveform Capture Rate: 300,000 wfms/sec
-
Software: PicoScope, PicoLog, PicoSDK
-
Serial Decoding: 21 protocols included
What’s Included in the Kit
-
PicoScope 6424E Oscilloscope
-
(4x) P2056 500 MHz Passive Probes (10:1)
-
User Manual
-
12V Universal Power Adaptor
-
USB Cable (1.8 m)
-
Localized IEC Power Lead
-
Rugged Carrying Case
Ideal Applications
-
High-speed embedded system development
-
Signal integrity troubleshooting
-
Advanced protocol decoding
-
Automotive electronics and mechatronics
-
Academic and physics lab experiments
-
Power electronics and mixed-signal analysis
Need more bandwidth? Consider the Pico Technology 6405E PC Oscilloscope (750 MHz, 4CH) for even deeper signal analysis.
Technical Specifications
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Analog Channels | 4 |
| Vertical Resolution | 8–12 bits FlexRes |
| Memory Depth | 4 GS |
| Input Type | BNC (f) |
| ADC Type | Fixed-resolution & FlexRes |
| Digital Channels | None |
| Series | 6000E Series |
| Brand | Pico Technology |
| Alternate PN | PQ208 |
