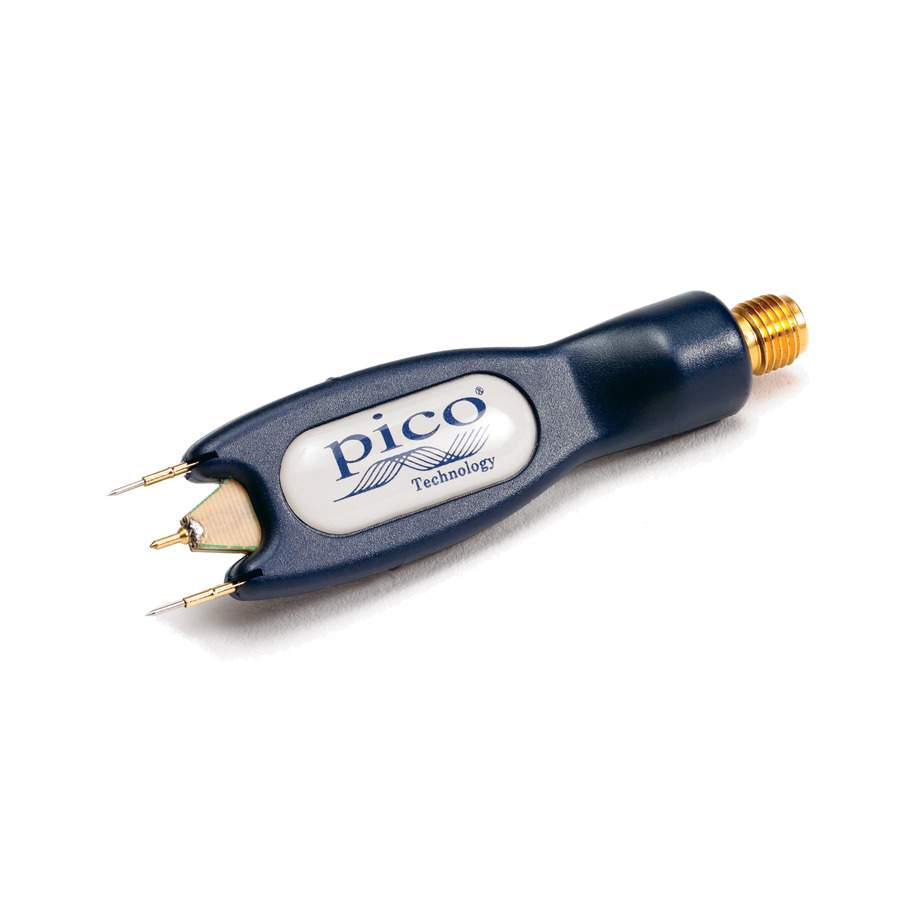

PicoConnect 911: 4 GHz, 20X Passive Probe for RF Applications

PicoConnect 911 AC Coupled Passive Probe, 4 GHz, 20X, 0.3 pF, 14 V, PicoConnect 900 RF Series

Product Overview

The PicoConnect 911 is a high-performance, AC-coupled passive probe designed for use with oscilloscopes and other test equipment. It offers a wide bandwidth of 4 GHz, a high input impedance of 20 MΩ, and a low input capacitance of 0.3 pF. This makes it ideal for probing high-speed signals in a variety of applications, including RF design, digital circuit analysis, and power electronics.

Features and Specifications

Bandwidth: 4 GHz
Input impedance: 20 MΩ
Input capacitance: 0.3 pF
Maximum input voltage: 14 V
Probe attenuation: 20X
Compensation range: 10 pF to 100 pF
Probe length: 1.5 m
Weight: 100 g

What\’s in the Box

PicoConnect 911 probe
Ground lead
Calibration certificate

High bandwidth and low input capacitance for accurate probing of high-speed signals
High input impedance for minimal loading of the circuit under test
Wide compensation range for compatibility with a variety of oscilloscopes
* Durable construction for long-lasting use

Value to the Customer

The PicoConnect 911 is a valuable tool for engineers and technicians who need to probe high-speed signals. Its high performance and versatility make it an ideal choice for a wide range of applications.
