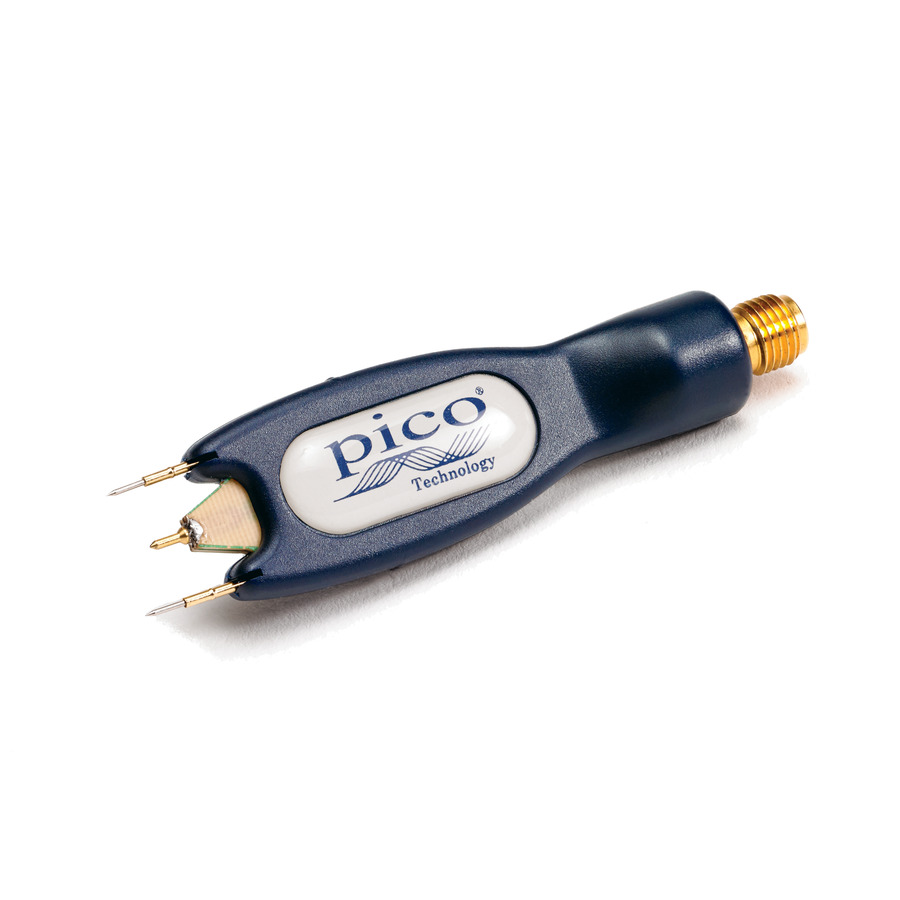

PicoConnect 922: 6 GHz, 20X Passive Probe for Precision Measurements
Roll over image to zoom in
$685
PicoConnect 922 DC Coupled Passive Probe: 6 GHz bandwidth, 20X attenuation, 0.3 pF capacitance, 7 V max input, PicoConnect 900 Series compatible.
PicoConnect 922 DC Coupled Passive Probe, 6 GHz, 20X, 0.3 pF, 7 V, PicoConnect 900 Series
Product Overview
The PicoConnect 922 is a high-performance, DC-coupled passive probe designed for use with oscilloscopes and other test equipment. It offers a wide bandwidth of 6 GHz, a high input impedance of 20 MΩ, and a low input capacitance of 0.3 pF. This makes it ideal for probing high-speed signals in a variety of applications, including digital design, power electronics, and telecommunications.
Features and Specifications
Bandwidth: 6 GHz
Input impedance: 20 MΩ
Input capacitance: 0.3 pF
Maximum input voltage: 7 V
Probe attenuation: 20X
Compensation range: 10 pF to 100 pF
Probe length: 1.5 m
Weight: 100 g
What’s in the Box
PicoConnect 922 probe
Ground lead
Calibration certificate
Benefits
High bandwidth for probing high-speed signals
High input impedance for minimizing loading effects
Low input capacitance for preserving signal integrity
Wide compensation range for matching a variety of loads
Compact and lightweight design for easy handling
Value
The PicoConnect 922 is a high-quality probe that offers excellent performance at a competitive price. It is an essential tool for engineers and technicians who need to probe high-speed signals in a variety of applications.
Additional information
| Brand | Pico Technology |
|---|
Returns Policy
We accept returns within 30 days of delivery. To qualify, items must be unused, in their original condition, and returned with all original packaging and accessories.
Once we receive and inspect the returned item, we will process your refund within 7 business days. Refunds will be issued to the original payment method.
Please note: Shipping costs are non-refundable unless the return is due to a defective or incorrect item.
Reviews
There are no reviews yet.
