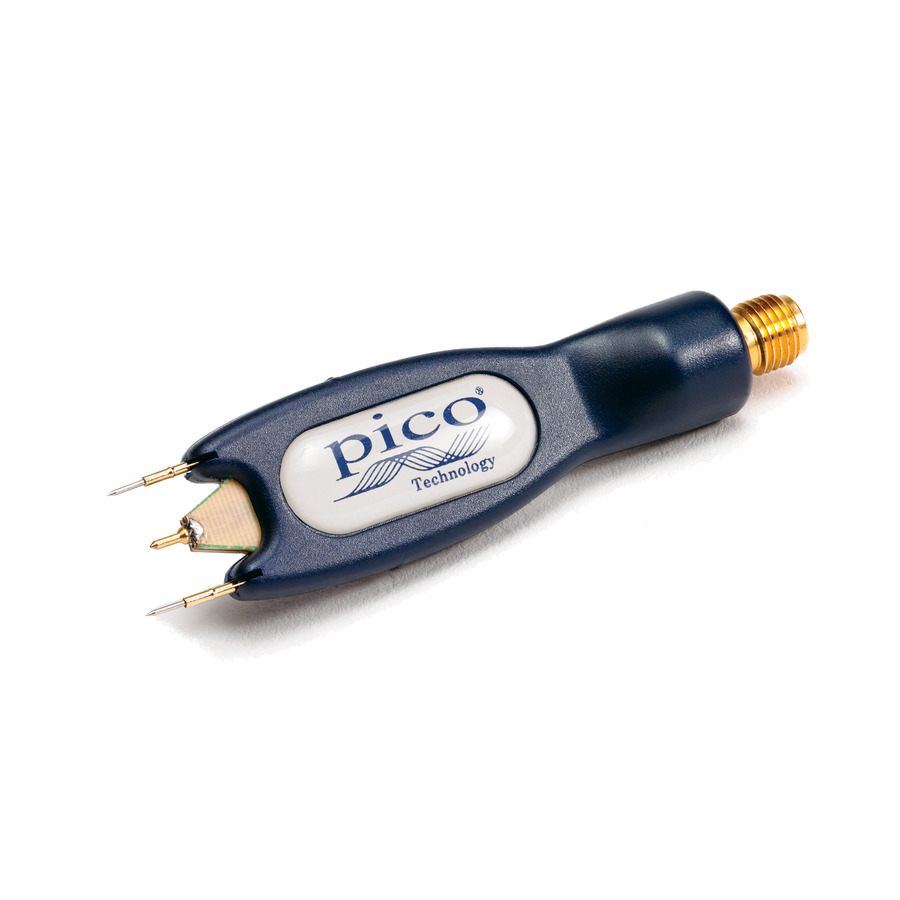

PicoConnect 924: 7 GHz, 10X Passive Probe for High-Speed Signal Analysis

PicoConnect 924 DC Coupled Passive Probe, 7 GHz, 10X, 0.3 pF, 5 V, PicoConnect 900 Series

Product Overview

The PicoConnect 924 is a high-performance, DC-coupled passive probe designed for use with oscilloscopes and other test equipment. It offers a wide bandwidth of 7 GHz, a low input capacitance of 0.3 pF, and a maximum input voltage of 5 V. The probe is ideal for use in a variety of applications, including high-speed digital design, RF testing, and power electronics.

Features and Specifications

Bandwidth: 7 GHz
Input capacitance: 0.3 pF
Maximum input voltage: 5 V
Attenuation: 10X
Probe tip: Grounded
Cable length: 1.2 m (4 ft)
Weight: 100 g (3.5 oz)

PicoConnect 924 probe
Ground lead
Calibration certificate

Benefits

High bandwidth for accurate measurements of high-speed signals
Low input capacitance for minimal loading of the circuit under test
High input voltage for safe use with a wide range of signals
Grounded probe tip for improved signal integrity
* Lightweight and portable for easy use in the field

Value

The PicoConnect 924 is a high-quality, high-performance probe that is ideal for use in a variety of applications. It offers a wide range of features and benefits, including high bandwidth, low input capacitance, high input voltage, and a grounded probe tip. The probe is also lightweight and portable, making it easy to use in the field.
