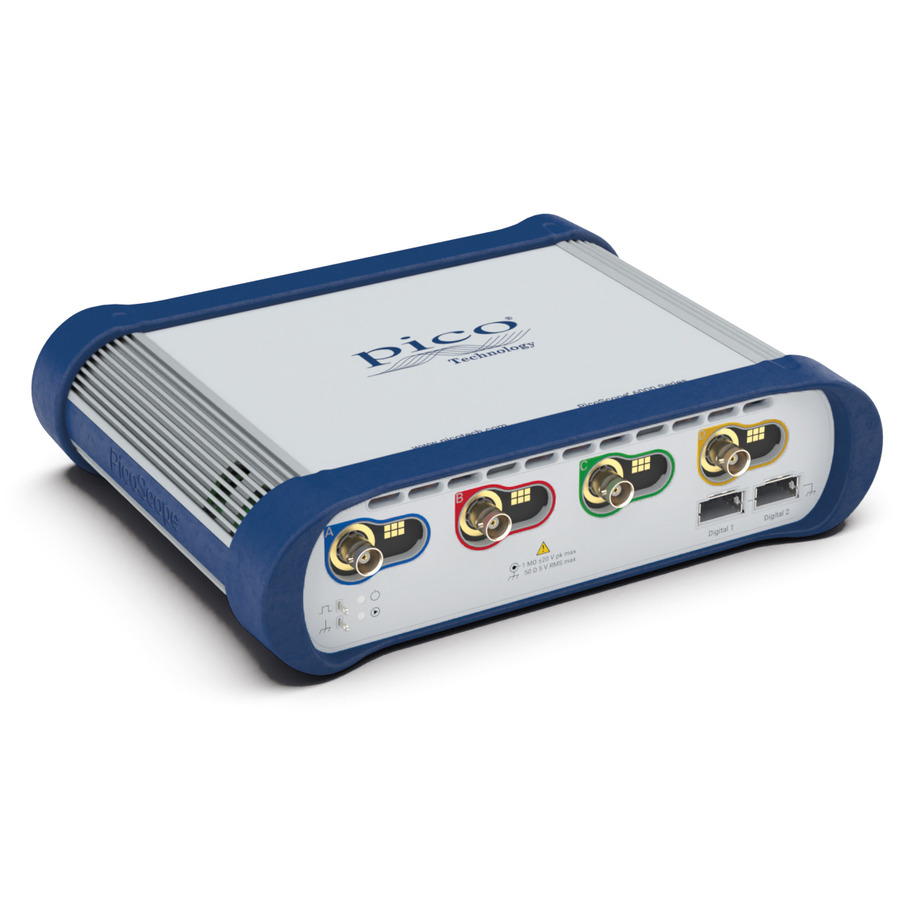

Pico Technology 6405E PC USB Oscilloscope

Pico Technology 6405E PC USB Oscilloscope, 750 MHz, 4CH, 8Bits, 2GS, 6000E Series

Product Overview
The Pico Technology 6405E PC USB Oscilloscope is a powerful 4-channel instrument designed for engineers and researchers working with high-speed signals and embedded system diagnostics. With a 750 MHz bandwidth and 2 GS memory depth, it captures fine signal details with a rise time under 475 ps and vertical resolution of 8 bits.

This model belongs to the versatile PicoScope 6000E Series, ideal for high-performance design validation, advanced trigger analysis, and deep memory waveform inspection.

For users who require field-ready instruments, explore our guide on Best Handheld Oscilloscopes for Field Use to complement your lab-grade PC oscilloscopes with portable options.

Key Features & Specifications

• Bandwidth: 750 MHz (–3 dB)

• Channels: 4 analog input channels

• Vertical Resolution: 8-bit (fixed), FlexRes 8–12 bits on other models

• Memory Depth: 2 GS

• Rise Time: < 475 ps (50 Ω) / < 850 ps (MΩ)

• Bandwidth Limiting: Selectable (20 MHz, 200 MHz)

• Input Connector: BNC (f), probe readout-pin compatible

• Advanced Triggering: Edge, pulse width, dropout, runt, logic, etc.

• Waveform Capture Rate: 300,000 wfms/s

• Included Software: PicoScope, PicoLog, PicoSDK – with lifetime free updates

• Protocol Analysis: 21 built-in serial decoders

What’s in the Kit

• PicoScope 6405E Oscilloscope

• 4x P2056 500 MHz passive probes (10:1)

• User’s Guide

• 12V universal power adaptor

• USB 1.8 m cable

• Localized IEC mains lead

• Rugged carry/storage case

Typical Applications

• Embedded systems & digital design

• Power electronics and motor control

• Mechatronics and automotive R&D

• Research in physics labs and universities

• Signal integrity and timing validation

• Protocol analysis and compliance testing

Looking for a comparison with higher bandwidth models? Explore the Pico 9402-05 5 GHz PC Oscilloscope for ultra-high-speed measurements and telecom testing.
