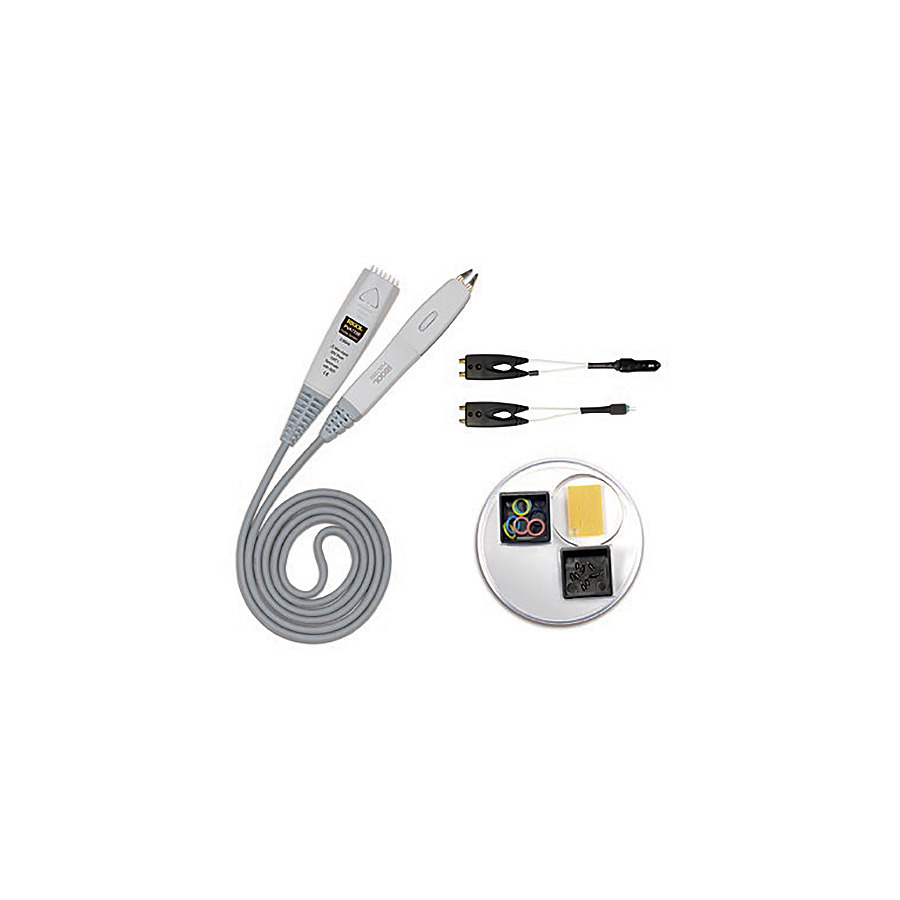

RIGOL PVA7250: Unleash Precision with 2.5 GHz Active Differential Probe Kit
$3.175
RIGOL PVA7250 Active Differential Probe Kit: 2.5 GHz bandwidth, 50 kΩ input impedance, 1 pF input capacitance, ideal for high-speed differential signal measurements.
Features and Specifications: RIGOL PVA7250 Active Differential Probe Kit, 2.5 GHz, 50 k, 1 pF, PVA7000 Series
Product Overview:
The RIGOL PVA7250 Active Differential Probe Kit is a high-performance probe designed for use with oscilloscopes. It offers a wide bandwidth of 2.5 GHz, high input impedance of 50 kΩ, and low input capacitance of 1 pF. This makes it ideal for measuring high-speed signals in a variety of applications, including digital design, power electronics, and telecommunications.
Features:
Bandwidth: 2.5 GHz
Input impedance: 50 kΩ
Input capacitance: 1 pF
Differential and single-ended measurements
Auto-zero and calibration functions
Compact and lightweight design
Specifications:
Bandwidth: 2.5 GHz
Input impedance: 50 kΩ ±2%
Input capacitance: 1 pF ±0.1 pF
Maximum input voltage: ±10 V
Common mode rejection ratio: >60 dB at 1 GHz
Differential gain accuracy: ±1%
Probe attenuation: 10:1
Power supply: +12 V to +15 V DC
Dimensions: 110 mm x 60 mm x 25 mm
Weight: 150 g
What’s in the Box:
PVA7250 Active Differential Probe
Ground lead
Calibration certificate
User manual
Benefits:
High bandwidth and low input capacitance for accurate measurements of high-speed signals
High input impedance minimizes loading on the circuit under test
Differential and single-ended measurements provide flexibility for a wide range of applications
Auto-zero and calibration functions ensure accurate measurements
* Compact and lightweight design for easy portability
Value to the Customer:
The RIGOL PVA7250 Active Differential Probe Kit is a valuable tool for engineers and technicians who need to measure high-speed signals accurately. Its high performance and versatility make it ideal for a wide range of applications, from digital design to telecommunications.
