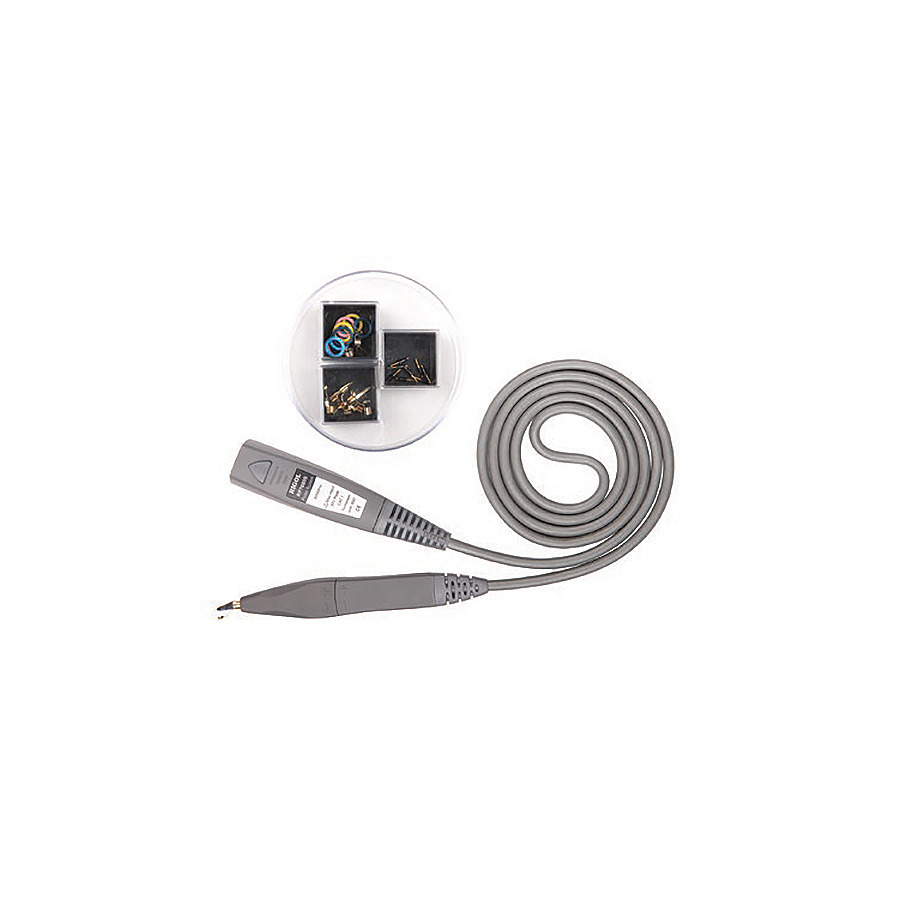

RIGOL RP7150S: The Ultimate Active Probe for Precision Measurements

$1.637

In stock

RIGOL RP7150S Active Probe: Enhance Signal Integrity with High-Bandwidth, Single-Ended Precision

Features and Specifications: RIGOL RP7150S Active Probe Active Single-Ended

Product Overview:

The RIGOL RP7150S Active Probe is a high-performance active single-ended probe designed to provide accurate and reliable measurements in a wide range of applications. With its exceptional bandwidth, low input capacitance, and high input impedance, the RP7150S is ideal for testing high-speed signals and sensitive circuits.

Features:

Bandwidth: 1.5 GHz
Input Capacitance: 1.5 pF
Input Impedance: 1 MΩ // 15 pF
Attenuation: 10:1
Rise Time: 233 ps
Maximum Input Voltage: ±15 V
Offset Range: ±10 V
Power Supply: USB or Probe Power Supply

Specifications:

DC Accuracy: ±0.5%
Gain Accuracy: ±0.5%
Phase Accuracy: ±1°
Common Mode Rejection Ratio (CMRR): >80 dB
Differential Mode Rejection Ratio (DMRR): >80 dB
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C

What’s in the Box:

RP7150S Active Probe
Ground Lead
Probe Tip
Calibration Certificate

Benefits:

High Bandwidth: Accurately measure high-speed signals up to 1.5 GHz.
Low Input Capacitance: Minimize circuit loading and preserve signal integrity.
High Input Impedance: Avoid signal distortion and ensure accurate measurements.
Wide Attenuation Range: Adjust the probe’s attenuation to match the signal amplitude.
Fast Rise Time: Capture fast-rising signals with minimal distortion.
High Input Voltage: Measure signals up to ±15 V without damage.
Offset Range: Adjust the probe’s offset to compensate for DC offsets.
USB or Probe Power Supply: Power the probe conveniently from a USB port or a dedicated probe power supply.

Value to the Customer:

The RIGOL RP7150S Active Probe is an essential tool for engineers and technicians who need to perform precise measurements on high-speed signals and sensitive circuits. Its exceptional performance and versatility make it an invaluable asset for a wide range of applications, including:

Digital circuit debugging
High-speed signal analysis
Power supply testing
Sensor characterization
Automotive electronics testing

Additional information

Brand

RIGOL
