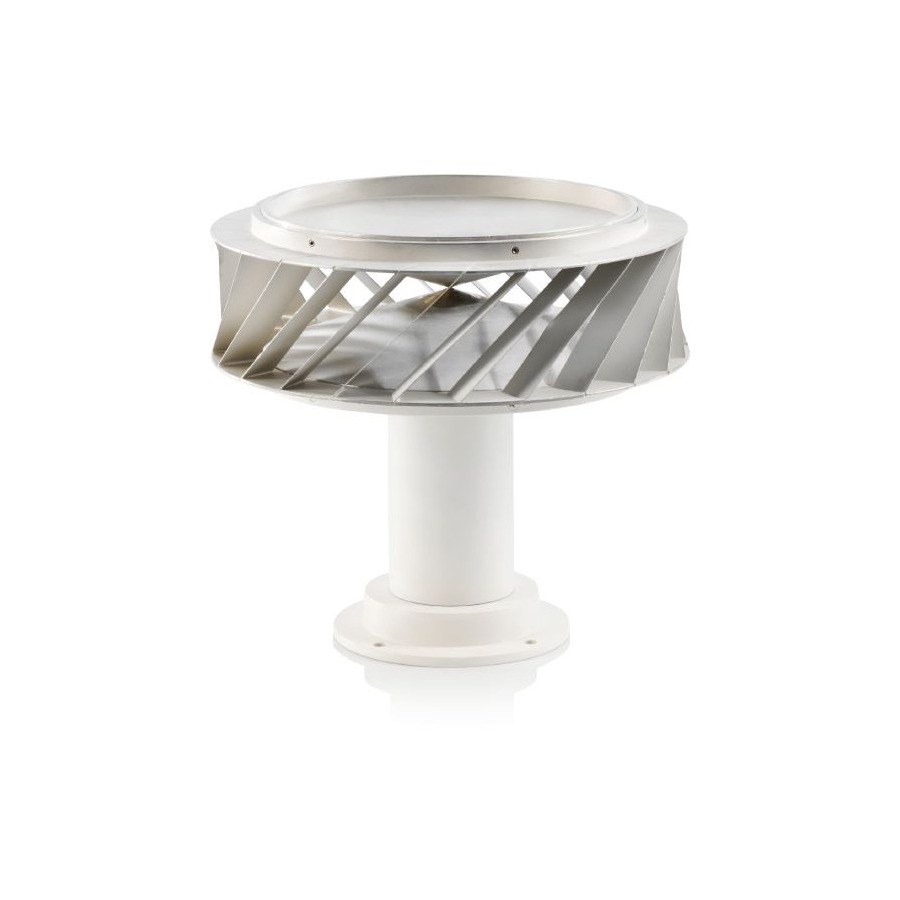

Rohde & Schwarz AC004R1: Omnidirectional Antenna for 18-26.5 GHz Applications
Roll over image to zoom in
$8.950
The Rohde & Schwarz AC004R1 is a circular polarized omnidirectional antenna covering 18–26.5 GHz, ideal for RF testing and rugged wireless applications.
Features and Specifications: Rohde Schwarz AC004R1 Omnidirectional Antenna
Product Overview:
The Rohde & Schwarz AC004R1 is a robust, omnidirectional antenna designed for high-frequency applications in the 18 GHz to 26.5 GHz range. Engineered for reliability and precision, it features right-hand circular polarization and is ideal for RF testing, radar systems, and wireless communication measurements, even in harsh environments.
🔧 Key Features & Specifications
-
Frequency Range: 18 GHz to 26.5 GHz
-
Polarization: Right-hand circular (RCP)
-
Gain: Typical 2 dBi
-
Input Impedance: 50 Ω
-
VSWR: Typ. < 2.5
-
Max. Input Power: 25 W (CW at +20°C)
-
Radiation Pattern: Omnidirectional (azimuth), Directional (elevation)
-
Beamwidth (Elevation): 20° (typ.)
-
Connector: RPC2.92 (K) Female
-
Weather Protection: Included (IP54 rated)
-
Operating Temp: –35 °C to +65 °C
-
Max. Wind Speed: 180 km/h (without ice)
-
MTBF: >100,000 hours
-
Dimensions: Ø 150 mm × 134 mm (6 in × 5 in)
-
Weight: Approx. 1.4 kg (3 lbs)
📦 Tech Specs
| Attribute | Value |
|---|---|
| Type | Omnidirectional Antenna |
| Max Frequency | 26.5 GHz |
| Gain | 2 dBi |
| Connection | RPC2.92 (K) |
| Magnetic Base | No |
| Protection | IP54 |
| Country of Origin | Germany |
| ECCN | EAR99 |
| HTS Code | 8529104040 |
🎯 Why Choose the AC004R1?
-
Uniform signal coverage in all directions
-
High power handling and stable gain performance
-
Weatherproof and rugged for field or mobile deployments
-
Ideal for EMI/EMC testing, spectrum monitoring, and signal tracking
🔗 Explore Related Products & Articles
-
Looking for more antennas? Visit our RF Antennas Collection
-
Learn how to select the right antenna for RF test setups: RF Test Accessories Explained
-
Compare with Siglent ANT-DA13 Directional Antenna
Additional information
| Brand | Rohde & Schwarz |
|---|
