Siglent CP6030A Current Probes: Precision Measurement for High-Current Applications
Roll over image to zoom in
$2.081
Siglent CP6030A Current Probes: 12 MHz bandwidth, 300 A peak, 150 A(rms) current measurement, 300 V CAT1 safety rating, 12 V/1.2 A adapter included, CP Series.
Features and Specifications: Siglent CP6030A Current Probes, 12 MHz, 300 A, 150 A(rms), 300 V CAT1, 12 V/1.2 A Adapter, CP Series
Product Overview:
The Siglent CP6030A Current Probe is a high-performance, non-invasive current measurement tool designed for use with oscilloscopes and other test equipment. With a wide bandwidth of 12 MHz and a maximum current measurement range of 300 A, the CP6030A is ideal for a variety of applications, including power electronics, motor control, and automotive testing.
Features:
Wide bandwidth of 12 MHz
Maximum current measurement range of 300 A
RMS current measurement range of 150 A
Maximum voltage measurement range of 300 V CAT1
Non-invasive design for easy and safe measurements
Compact and lightweight for portability
Compatible with a wide range of oscilloscopes and other test equipment
Specifications:
Bandwidth: 12 MHz
Maximum current measurement range: 300 A
RMS current measurement range: 150 A
Maximum voltage measurement range: 300 V CAT1
Accuracy: ±1% of reading ±0.5 A
Output impedance: 1 MΩ
Input impedance: 10 MΩ
Operating temperature range: 0°C to 40°C
Storage temperature range: -20°C to 60°C
Dimensions: 150 mm x 70 mm x 30 mm
Weight: 250 g

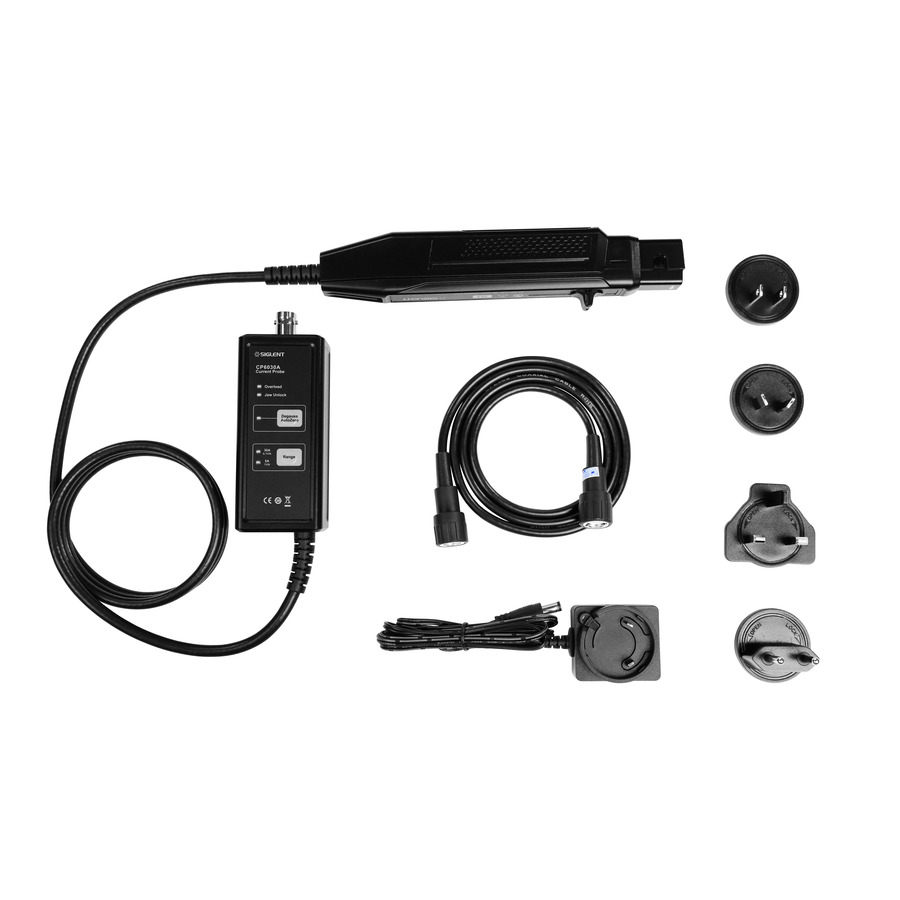

What\’s in the Box:
Siglent CP6030A Current Probe
12 V/1.2 A Adapter
User Manual
Benefits:
Accurately measure high currents without breaking the circuit
Wide bandwidth and high accuracy for precise measurements
Non-invasive design for safe and easy operation
Compact and lightweight for portability
Compatible with a wide range of test equipment
Value to the Customer:
The Siglent CP6030A Current Probe is a valuable tool for engineers, technicians, and hobbyists who need to measure high currents accurately and safely. Its wide bandwidth, high accuracy, and non-invasive design make it ideal for a variety of applications, including power electronics, motor control, and automotive testing.
