Siglent SAP2500: High-Performance Active Probe for Precision Measurements
Roll over image to zoom in
$1.097
Siglent SAP2500 Active Probe: Enhance your signal analysis with this high-performance 2.5 GHz probe featuring a 10X attenuation ratio, 1.1 pF capacitance, and 1 MOhm impedance, compatible with SAPBus interface.
Features and Specifications

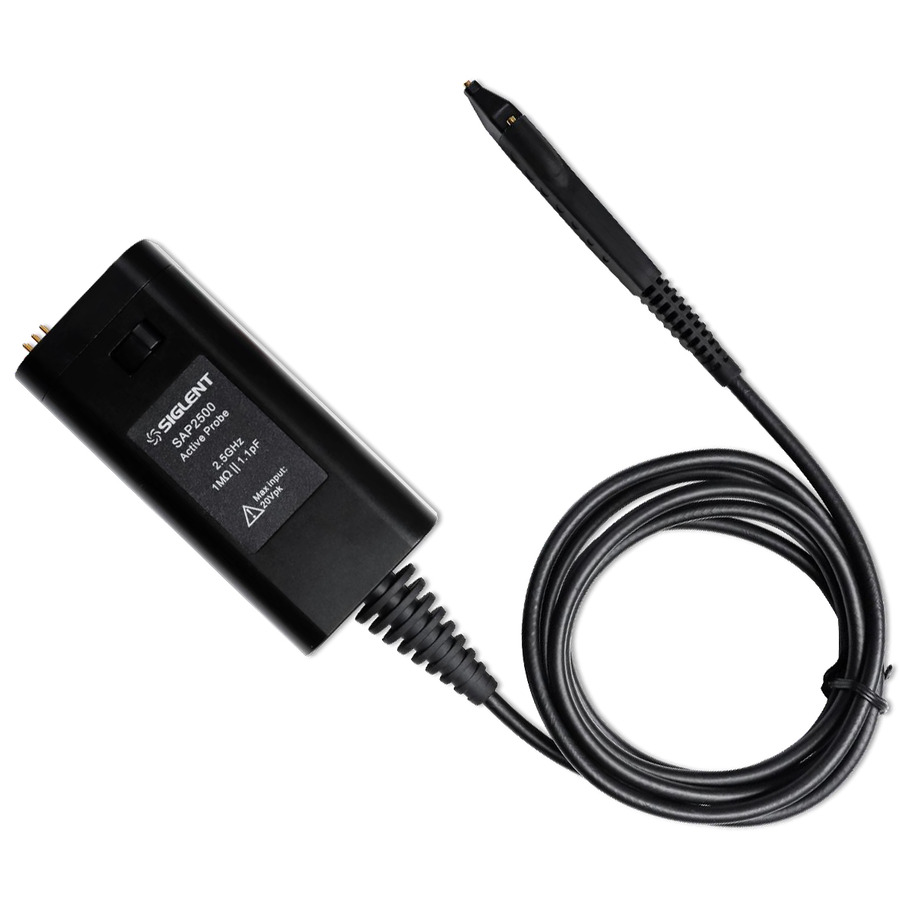

Siglent SAP2500 Active Probe
Product Overview
The Siglent SAP2500 is a high-performance active probe designed for use with oscilloscopes. It features a single-ended SAPBus interface, a 10X attenuation ratio, a 2.5 GHz bandwidth, a 1.1 pF input capacitance, and a 1 MOhm input resistance. The SAP2500 is ideal for use in a wide variety of applications, including high-speed digital design, power electronics, and RF measurements.
Features
Single-ended SAPBus interface
10X attenuation ratio
2.5 GHz bandwidth
1.1 pF input capacitance
1 MOhm input resistance
Low noise and distortion
High accuracy and repeatability
Compact and lightweight design
Specifications
Bandwidth: 2.5 GHz
Attenuation ratio: 10X
Input capacitance: 1.1 pF
Input resistance: 1 MOhm
Rise time: 140 ps
Fall time: 140 ps
Maximum input voltage: ±10 V
Power supply: +5 V DC
Dimensions: 110 mm x 30 mm x 15 mm
Weight: 100 g
What’s in the Box
Siglent SAP2500 Active Probe
Ground lead
Calibration certificate
Benefits
The Siglent SAP2500 Active Probe offers a number of benefits over traditional passive probes, including:
Higher bandwidth and faster rise time
Lower input capacitance and input resistance
Lower noise and distortion
Higher accuracy and repeatability
* These benefits make the SAP2500 ideal for use in a wide variety of applications, including high-speed digital design, power electronics, and RF measurements.
Value
The Siglent SAP2500 Active Probe is a valuable tool for any engineer or technician who needs to make accurate and repeatable measurements on high-speed signals. Its high performance and low price make it an excellent value for the money.
