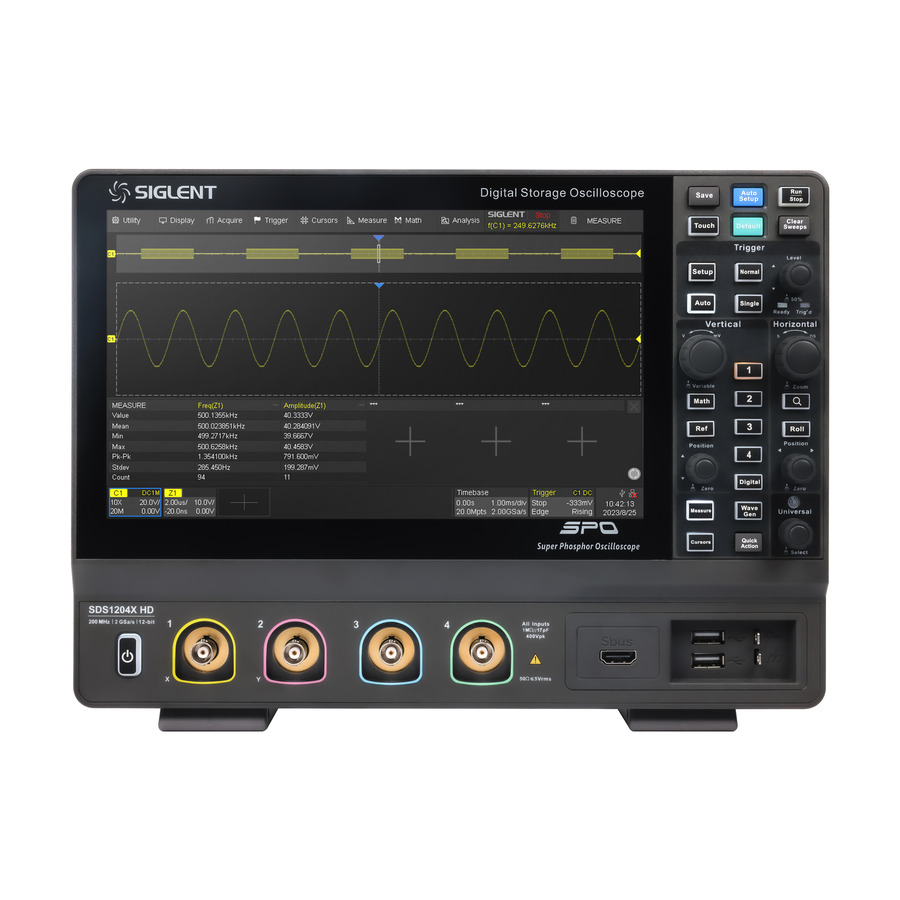

Siglent SDS1204X HD MSO: 4-Channel, 200 MHz Oscilloscope with 2 GS/s, 100 Mpts, and 12-bit Resolution
Roll over image to zoom in
$1.024
Siglent SDS1204X HD MSO Oscilloscope: 4-channel, 200 MHz bandwidth, 2 GS/s sample rate, 100 Mpts memory depth, 12-bit resolution, advanced triggering capabilities, and a user-friendly interface. Ideal for electronic design, debugging, and analysis.
Siglent SDS1204X HD MSO Oscilloscope: Precision and Performance at Your Fingertips
Product Overview:
The Siglent SDS1204X HD MSO Oscilloscope is a cutting-edge instrument designed to empower engineers, technicians, and researchers with unparalleled precision and performance. With its 4 analog channels, 200 MHz bandwidth, 2 GS/s sample rate, and 100 Mpts memory depth, this oscilloscope delivers exceptional signal acquisition and analysis capabilities.
This model is part of our Digital Oscilloscopes collection — ideal for those seeking high-resolution measurement tools for embedded systems, power electronics, and communication signals.
Key Features and Specifications
-
4 analog channels / 200 MHz bandwidth
-
16 digital channels (requires SDS1000XHD-16LA & SLA1016 logic probe – sold separately)
-
12-bit analog-to-digital converter for superior signal fidelity
-
Waveform capture rate: up to 120,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
-
Optional 25 MHz waveform generator (with SDS1000XHD-FG & SAG1021I or SDG series)
-
Sampling rate: up to 2 GSa/s
-
Record length: up to 100 Mpts
-
10.1’’ capacitive touchscreen with multi-touch gesture support
-
Standard Serial decode: I2C, SPI, UART, CAN, LIN, CAN FD (decode only), FlexRay (decode only)
-
Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
Learn more about the Oscilloscopes category to compare similar models for your needs.
Technical Specifications
| Feature | Details |
|---|---|
| Bandwidth | 200 MHz |
| Channels | 4 |
| Sampling Rate | 2 GS/s |
| Memory Depth | 100 Mpts |
| Waveforms/s | 500,000 (Sequence Mode) |
| Screen Size | 10.1” Touchscreen |
| Resolution | 12-bit |
| Logic Channels | 16 (optional) |
| Rise Time | 1.8 ns |
| Interfaces | USB, LAN |
For engineers working on IoT, embedded systems, and automotive protocols, the SDS1204X HD is a reliable partner for protocol decoding and signal integrity analysis.
What\’s in the Box
-
Oscilloscope Unit
-
USB Cable
-
Quick Start Guide
-
4× Passive Probe
-
Calibration Certificate
-
Power Cord
Note: Logic probe and MSO software are sold separately.
Value Proposition
The Siglent SDS1204X HD MSO offers exceptional value by combining high-resolution acquisition, deep memory, and multi-interface connectivity in a compact form factor. Whether you\’re involved in academic research, advanced R&D, or production testing, this oscilloscope provides unmatched insight into signal behavior.
