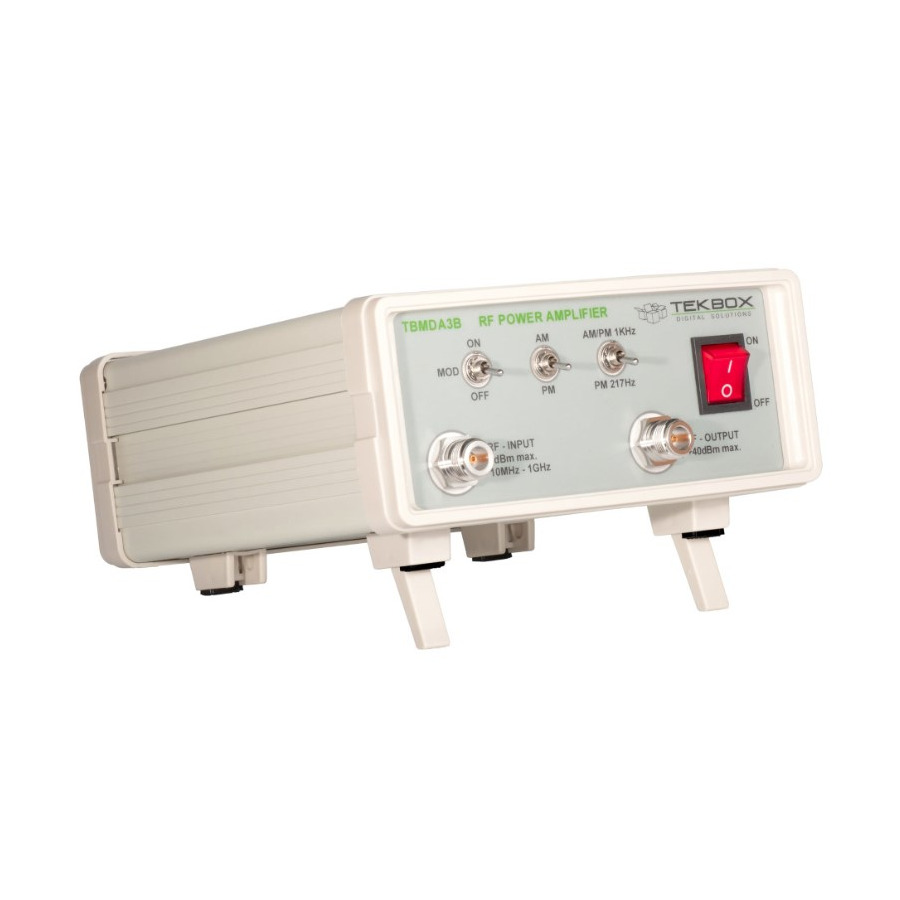

TekBox TBMDA3B: Modulated Wideband Power Amplifier for Enhanced Signal Amplification
Roll over image to zoom in
$643
TekBox TBMDA3B Modulated Wideband Power Amplifier: Enhance your signal strength with our 10 MHz – 1 GHz amplifier, featuring high linearity and low distortion for exceptional performance in various applications.
Features and Specifications: TekBox TBMDA3B Modulated Wideband Power Amplifier, 10 MHz – 1 GHz, TBMDA Series
Product Overview:
The TekBox TBMDA3B is a high-performance modulated wideband power amplifier designed to amplify RF signals from 10 MHz to 1 GHz. It offers exceptional linearity, low noise, and high output power, making it ideal for a wide range of applications, including:
Signal generation
EMC testing
Antenna testing
Radar systems
Features:
Frequency range: 10 MHz – 1 GHz
Output power: +30 dBm (1 Watt)
Gain: 30 dB
Linearity: ±0.5 dB
Noise figure: <5 dB
Input and output impedance: 50 ohms
Modulation bandwidth: DC to 100 MHz
Built-in ALC and AGC
Over-temperature and over-current protection
Specifications:
| Parameter | Specification |
|—|—|
| Frequency range | 10 MHz – 1 GHz |
| Output power | +30 dBm (1 Watt) |
| Gain | 30 dB |
| Linearity | ±0.5 dB |
| Noise figure | <5 dB |
| Input and output impedance | 50 ohms |
| Modulation bandwidth | DC to 100 MHz |
| Power supply | 12-15 VDC, 1.5 A |
| Dimensions | 100 x 70 x 30 mm |
| Weight | 250 g |
What’s in the Box:
TekBox TBMDA3B Modulated Wideband Power Amplifier
Power adapter
User manual
Benefits:
High performance: Exceptional linearity, low noise, and high output power ensure accurate and reliable signal amplification.
Wide frequency range: Covers a wide range of applications from 10 MHz to 1 GHz.
Built-in modulation: Supports modulation bandwidths up to 100 MHz, eliminating the need for external modulators.
Protection features: Over-temperature and over-current protection ensure safe and reliable operation.
* Compact and portable: Small size and lightweight design make it easy to integrate into various systems.
Value to the Customer:
The TekBox TBMDA3B Modulated Wideband Power Amplifier provides a cost-effective and versatile solution for a wide range of RF applications. Its high performance, wide frequency range, and built-in modulation capabilities make it an essential tool for engineers and researchers in various industries.
Additional information
| Brand | TekBox |
|---|
