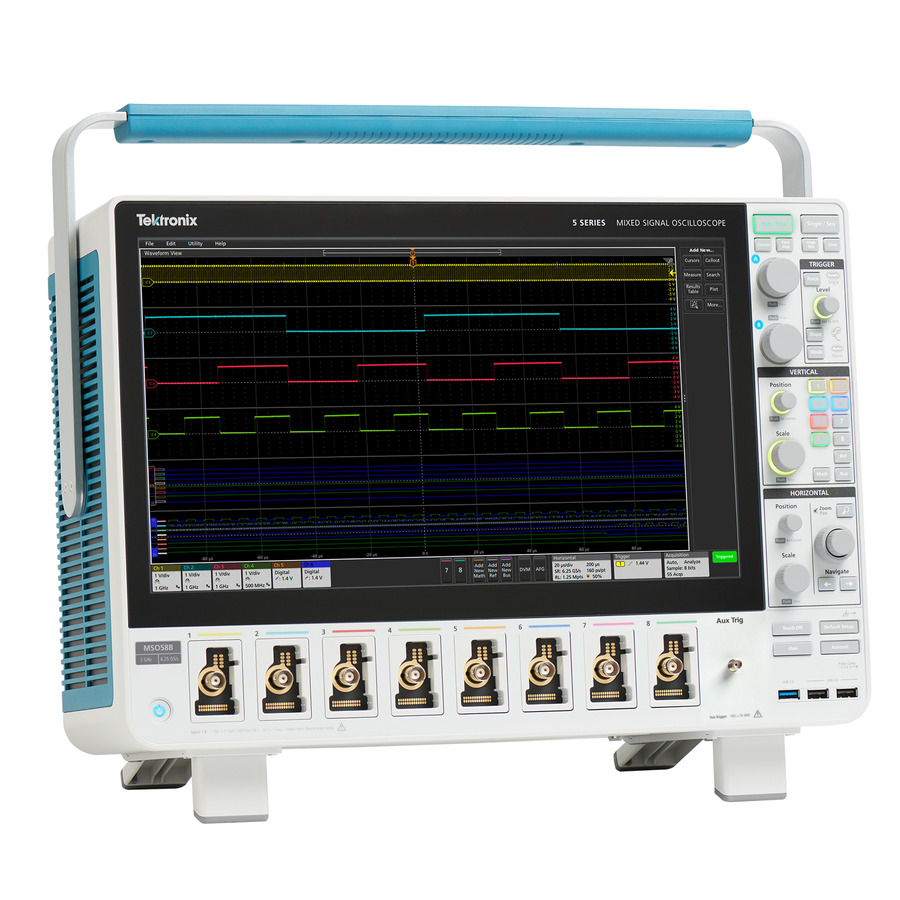

Tektronix MSO58B 5-BW-1000 – 5 Series B MSO Mixed Signal Oscilloscope
Roll over image to zoom in
$33.964
The Tektronix MSO58B/5-BW-1000/5-SEC is a high-performance 8-channel mixed signal oscilloscope with 1 GHz bandwidth and 6.25 GS/s sampling rate. It features FlexChannel technology, 12-bit resolution, a 15.6″ touchscreen
Tektronix MSO58B/5-BW-1000/5-SEC Mixed Signal Oscilloscope
Unleash the Power of Precision and Versatility
The Tektronix MSO58B/5-BW-1000/5-SEC is a next-generation mixed signal oscilloscope built for professionals working on high-speed, high-density systems. Featuring 1 GHz analog bandwidth, 8 FlexChannels, and a 6.25 GS/s real-time sample rate, it enables precise waveform acquisition and analysis for even the most demanding embedded designs.
Whether you’re working in embedded system debugging, automotive control units, or RF validation, this instrument offers unrivaled flexibility and resolution. Each FlexChannel can be configured as either one analog input or eight digital logic channels using the optional TLP058 logic probe, making it a powerful alternative to using multiple test instruments.
Key Features
-
1 GHz analog bandwidth
-
8 FlexChannels – each can function as 1 analog or 8 digital logic inputs
-
Real-time sample rate: 6.25 GS/s on all channels
-
62.5 Mpts standard record length (expandable)
- 500,000 waveforms/sec capture rate
-
12-bit vertical resolution, up to 16-bit in High Res mode
-
15.6″ Full HD capacitive touchscreen
-
Free digital voltmeter (with registration)
-
Embedded Linux OS, silent fanless operation, and solid-state drive
With these capabilities, the MSO58B is a perfect complement to other Power Analyzers tools for comprehensive system-level analysis.
Technical Specifications
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 8 FlexChannels |
| Logic Channels | Up to 64 |
| Sample Rate | 6.25 GS/s |
| Record Length | 62.5 Mpts |
| Rise Time | 400 ps |
| Vertical Resolution | 12-bit (standard), 16-bit (Hi Res) |
| Display | 15.6” 1920×1080 touchscreen |
| Interfaces | LAN, USB, VGA, LXI |
| Warranty | 1 Year |
What’s in the Box
-
(8) TPP1000 1 GHz passive probes
-
Power cord
-
Embedded Help and user manuals
-
Calibration certificate (ISO9001/17025)
-
Front cover with pouch
-
1-year instrument and probe warranty
Value Proposition
Whether you’re working in advanced embedded systems, automotive electronics, or aerospace applications, the MSO58B/5-BW-1000/5-SEC allows faster debugging, deeper analysis, and better design validation. It supports rapid prototyping, high-resolution waveform capture, and deep protocol decoding for complex digital buses.
