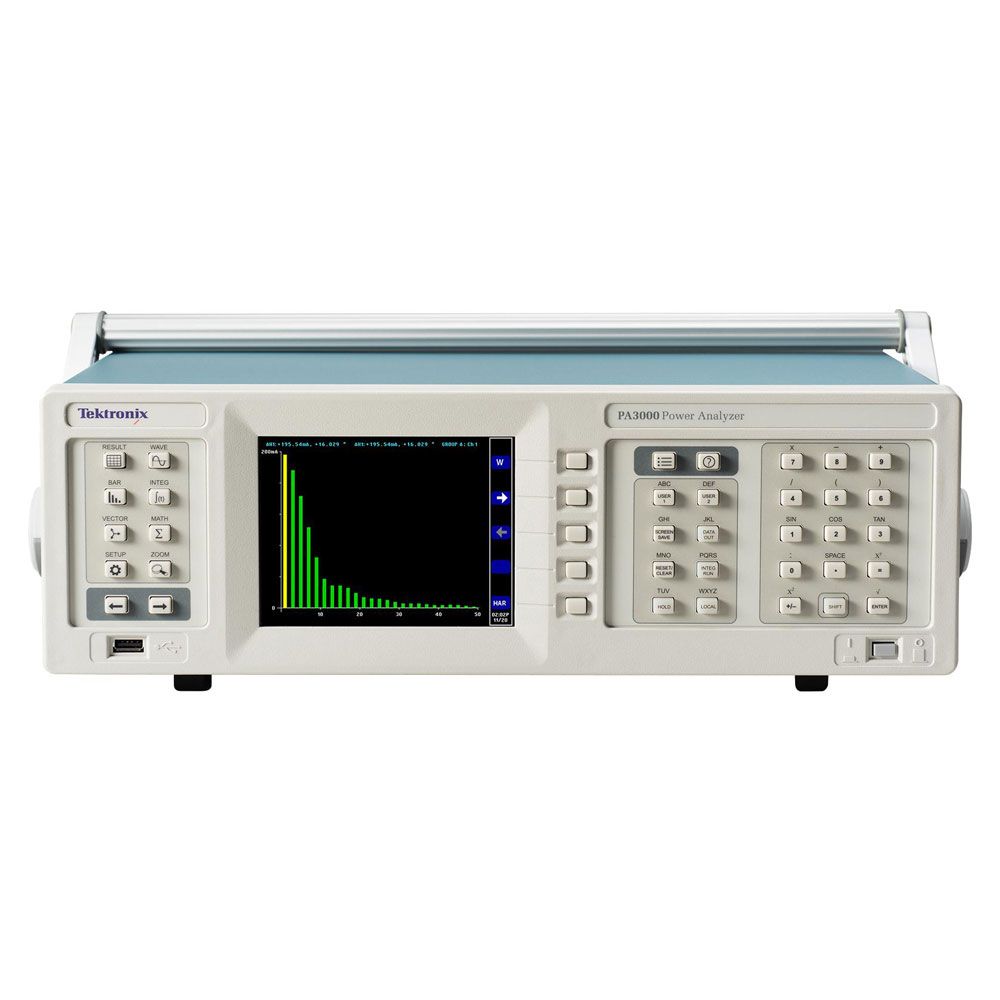

Tektronix PA3000 3CH Multi-Phase Power Analyzer

Tektronix PA3000 3CH Multi-Phase Power Analyzer WITH THREE INPUT MODULE

Product Overview:

The Tektronix PA3000 3CH Power Analyzer is a versatile high-accuracy instrument tailored for single-phase and three-phase AC/DC power measurement. Designed for engineers working on power supplies, inverters, lighting systems, motor drives, and energy-efficient electronics, it offers comprehensive compliance testing to standards like IEC 62301, Energy Star, and Level VI efficiency.

✅ Key Features:

• Three input channels for multi-phase applications

• Up to 1 MHz bandwidth for capturing high-frequency signals

• Harmonic analysis up to the 100th order

• Basic accuracy of ±0.04% for voltage and current

• Measurement capacity: Up to 600 Vrms (CAT II), 30 Arms

• Low-power standby measurements down to 20 mW

• Interfaces: USB, LAN, and optional GPIB

• Built-in ±15V outputs for external transducers

• Free PWRVIEW software for real-time data capture and analysis

⚡ Application Areas:

• AC/DC Power Supplies

• Inverters and UPS Systems

• LED and Lighting Efficiency

• Electric Vehicle and Motor Drives

• Consumer & IT Electronics

📊 Technical Specifications:

• Voltage Input: 600 Vrms CAT II

• Current Input: 30 Arms

• Crest Factor: Supported

• Power Measurements: Apparent, Reactive, and True Power

• Waveform Display: Yes, with LED graphical display

• Logging & Integration: Full support for long-term energy consumption testing

• Compliance Standards: Level VI, Energy Star, IEC 62301, CQC-3146
