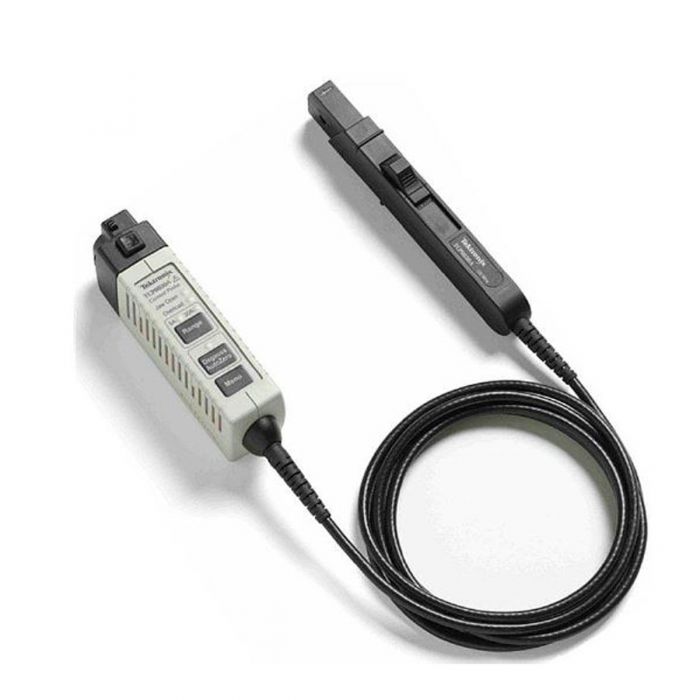

The TCP0030A from Tektronix is a 30A high performance, easy to use accurate AC/DC current probe. It is designed for use with TekVPI probe interface oscilloscopes. This AC/DC current measurement probe provides greater than 120MHz of bandwidth with selectable 5A and 30A measurement ranges. It also provides exceptional low current measurement capability and accuracy to current levels as low as 1mA which is important for meeting todays challenging current measurement needs. The TCP0030A is powered directly by oscilloscopes with TekVPI interface.
- Split core construction allows easy circuit connection
- High accuracy with typically less than 1% DC gain error
- Low noise and DC drift
- Maximum current capability of 30A (RMS and DC)
- Maximum peak pulse current of 50A
- Rise time is less than or equal to 2.92ns
- Maximum bare wire voltage of 150V CAT II (insulated wire 300V CAT II)
- Cable length of 200cm (79in)
- Operating temperature range from 0°C to 50°C (32°F to 122°F)
