Tektronix TCP312A Current Probe: Precision Measurement for AC/DC Currents
$2,006.00
Tektronix TCP312A Current Probe: 1 mA-21.2 A AC/DC, 100 MHz, 150 V, CAT2, 5mm, 50 A, TCP300 Series
Features and Specifications

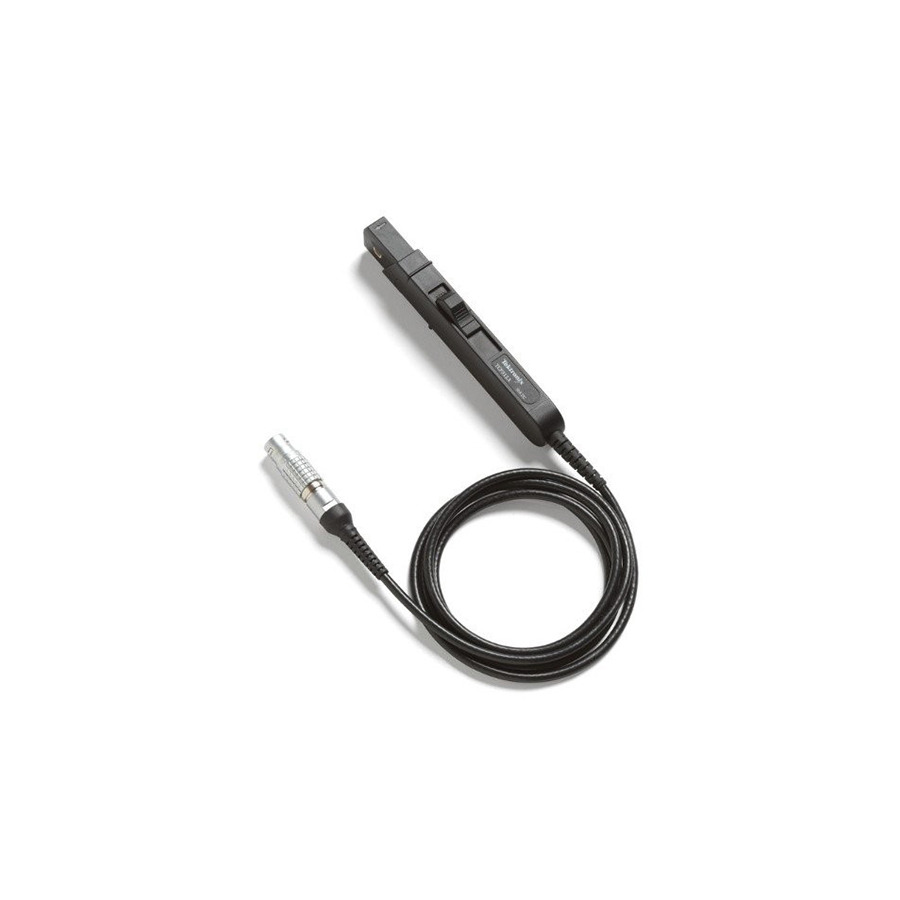

Tektronix TCP312A Current Probe
Product Overview
The Tektronix TCP312A Current Probe is a high-performance, AC/DC current probe designed for use with oscilloscopes and other test equipment. It offers a wide measurement range of 1 mA to 21.2 A, a high bandwidth of 100 MHz, and a maximum voltage rating of 150 V CAT II. The TCP312A is ideal for a variety of applications, including power electronics testing, motor control analysis, and automotive diagnostics.
Features
AC/DC current measurement
Measurement range: 1 mA to 21.2 A
Bandwidth: 100 MHz
Maximum voltage rating: 150 V CAT II
Split-core design for easy connection
Compact and lightweight
Includes carrying case
Specifications
Measurement range: 1 mA to 21.2 A
Bandwidth: 100 MHz
Maximum voltage rating: 150 V CAT II
Accuracy: ±1% of reading ±0.1 A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Dimensions: 150 mm x 50 mm x 25 mm
Weight: 250 g
What\’s in the Box
Tektronix TCP312A Current Probe
Carrying case
User manual
Benefits
High accuracy and wide measurement range: The TCP312A provides accurate current measurements over a wide range of values, making it ideal for a variety of applications.
High bandwidth: The 100 MHz bandwidth allows the TCP312A to capture fast-changing current waveforms, making it suitable for use in high-speed applications.
Compact and lightweight: The TCP312A is compact and lightweight, making it easy to use and transport.
Split-core design: The split-core design allows the TCP312A to be easily connected to conductors without interrupting the circuit.
Value
The Tektronix TCP312A Current Probe is a valuable tool for engineers and technicians who need to measure current in a variety of applications. Its high accuracy, wide measurement range, high bandwidth, and compact design make it an ideal choice for a variety of test and measurement needs.
