Tektronix TDP0500: High-Voltage Differential Probe for Precision Measurements
Roll over image to zoom in
$3.546

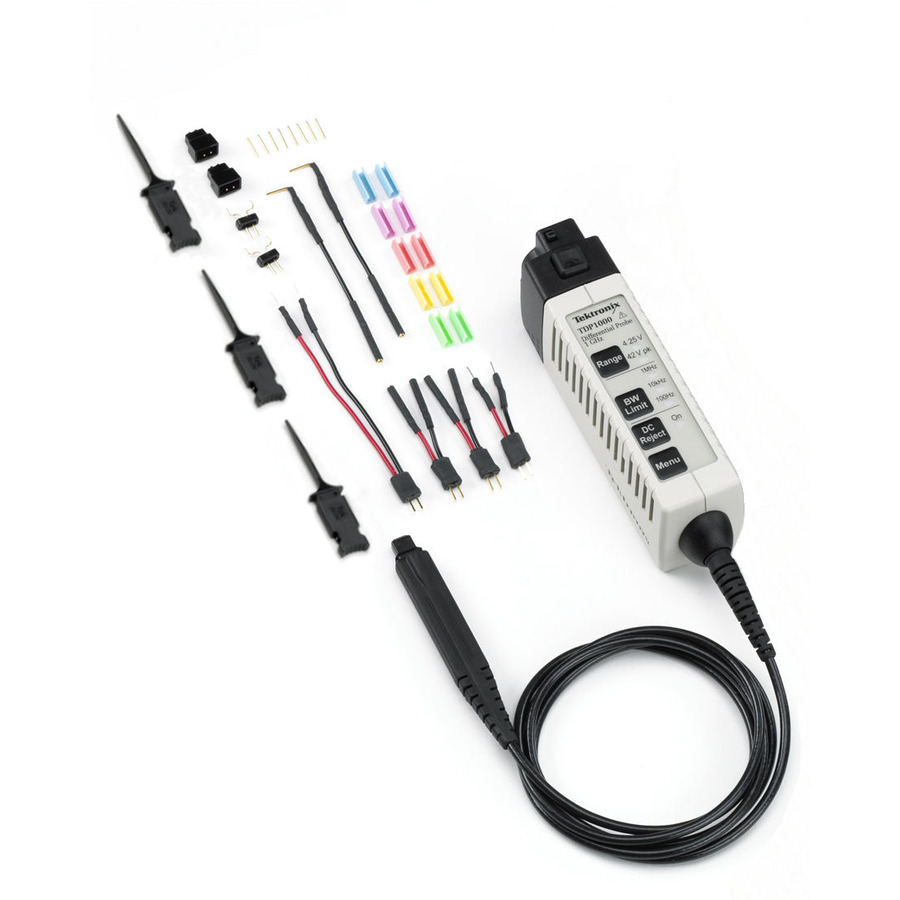

Tektronix TDP0500 High Voltage Differential Probe: 500 MHz bandwidth, 5X/50X attenuation, 1 pF capacitance, TekVPI interface, 1.2m cable length, TDP Series
Features and Specifications: Tektronix TDP0500 High Voltage Differential Probe, 500 MHz, 5X/50X, 1 pF, TekVPI, 1.2m, TDP Series
Product Overview:
The Tektronix TDP0500 is a high-voltage differential probe designed for use with oscilloscopes. It offers a wide bandwidth of 500 MHz, making it suitable for capturing fast-changing signals. The probe has a switchable attenuation ratio of 5X/50X, allowing it to measure signals with a wide range of amplitudes. The TDP0500 also features a low input capacitance of 1 pF, minimizing loading effects on the circuit under test.
Features:
High voltage differential probe
Bandwidth: 500 MHz
Attenuation ratio: 5X/50X
Input capacitance: 1 pF
TekVPI interface
Cable length: 1.2m
Specifications:
Bandwidth: 500 MHz
Attenuation ratio: 5X/50X
Input capacitance: 1 pF
Input resistance: 10 MΩ
Maximum input voltage: ±1000 V (DC + peak AC)
Common mode rejection ratio: >80 dB at 500 MHz
Probe tip spacing: 1.5 mm
Cable length: 1.2m
Weight: 0.5 kg
What’s in the Box:
Tektronix TDP0500 High Voltage Differential Probe
Ground lead
Probe tip accessories
User manual
Benefits:
Accurately measure high-voltage differential signals
Wide bandwidth for capturing fast-changing signals
Switchable attenuation ratio for measuring signals with a wide range of amplitudes
Low input capacitance minimizes loading effects
TekVPI interface for easy connection to oscilloscopes
Value to the Customer:
The Tektronix TDP0500 High Voltage Differential Probe is a valuable tool for engineers and technicians who need to measure high-voltage differential signals. Its wide bandwidth, switchable attenuation ratio, and low input capacitance make it suitable for a variety of applications, including power electronics, automotive testing, and industrial control.
