Tektronix TDP1000: High-Voltage Differential Probe for Precision Measurements
Roll over image to zoom in
$3.975

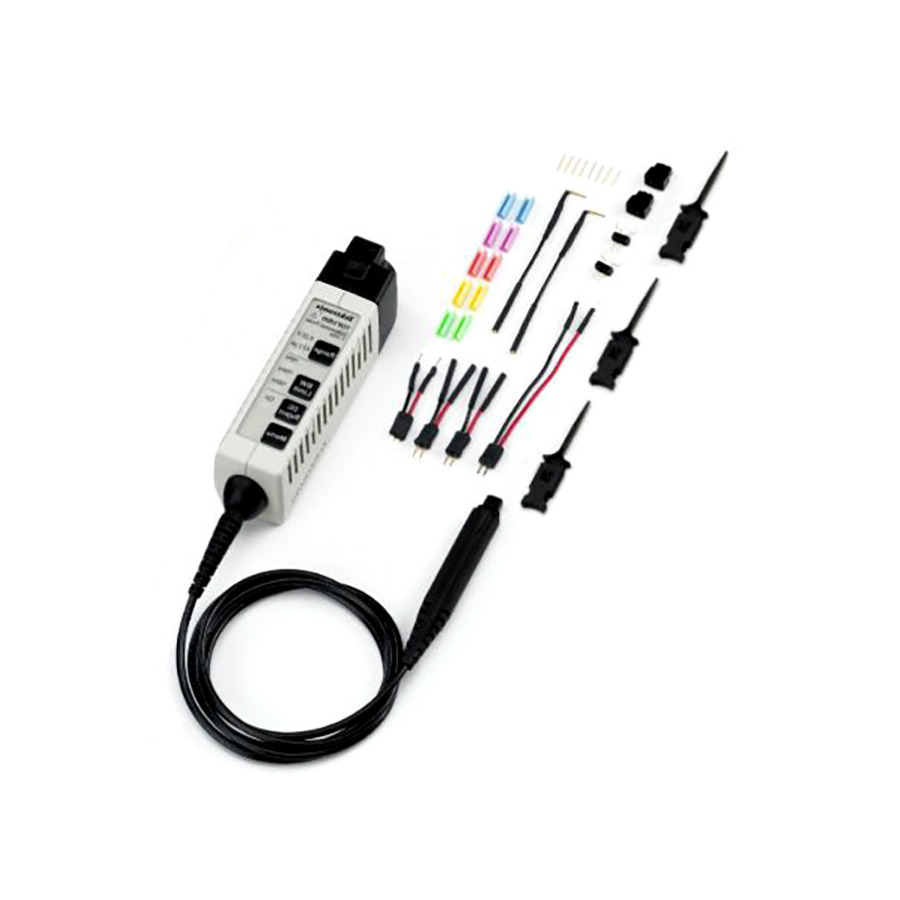

Tektronix TDP1000 High Voltage Differential Probe: 1 GHz bandwidth, 5X/50X attenuation, 1 pF capacitance, 42 V peak differential, TekVPI interface, TDP Series
Features and Specifications: Tektronix TDP1000 High Voltage Differential Probe, 1 GHz, 5X/50X, 1 pF, 42 V, TekVPI, TDP Series
Product Overview:
The Tektronix TDP1000 is a high-voltage differential probe designed for use with oscilloscopes. It offers a wide bandwidth of 1 GHz, making it suitable for capturing fast signals. The probe has a switchable attenuation of 5X or 50X, allowing it to measure signals with a wide range of amplitudes. The TDP1000 also features a low input capacitance of 1 pF, which minimizes loading on the circuit under test.
Features:
Bandwidth: 1 GHz
Attenuation: 5X/50X
Input capacitance: 1 pF
Maximum input voltage: 42 V
TekVPI interface
Auto-ranging
Offset adjustment
Ground reference indicator
Specifications:
Bandwidth: 1 GHz
Attenuation: 5X/50X
Input capacitance: 1 pF
Maximum input voltage: 42 V
Rise time: 350 ps
Fall time: 350 ps
Offset range: ±10 V
Offset accuracy: ±1%
Common mode rejection ratio: >80 dB
Power supply: TekVPI interface
What\’s in the Box:
Tektronix TDP1000 High Voltage Differential Probe
Ground lead
Probe tip
User manual
Benefits:
High bandwidth for capturing fast signals
Switchable attenuation for measuring signals with a wide range of amplitudes
Low input capacitance for minimizing loading on the circuit under test
TekVPI interface for easy connection to oscilloscopes
Auto-ranging for quick and easy setup
Offset adjustment for precise signal positioning
* Ground reference indicator for easy identification of the ground connection
Value to the Customer:
The Tektronix TDP1000 High Voltage Differential Probe is a valuable tool for engineers and technicians who need to measure high-voltage differential signals. It offers a wide range of features and specifications that make it suitable for a variety of applications. The probe\’s high bandwidth, low input capacitance, and switchable attenuation make it an ideal choice for measuring fast signals with a wide range of amplitudes. The TekVPI interface makes it easy to connect the probe to oscilloscopes, and the auto-ranging and offset adjustment features make it quick and easy to set up.
