Tektronix TIVP1: Revolutionize High-Voltage Measurements with 1 GHz Bandwidth and IsoVu Technology
Roll over image to zoom in
$19.742

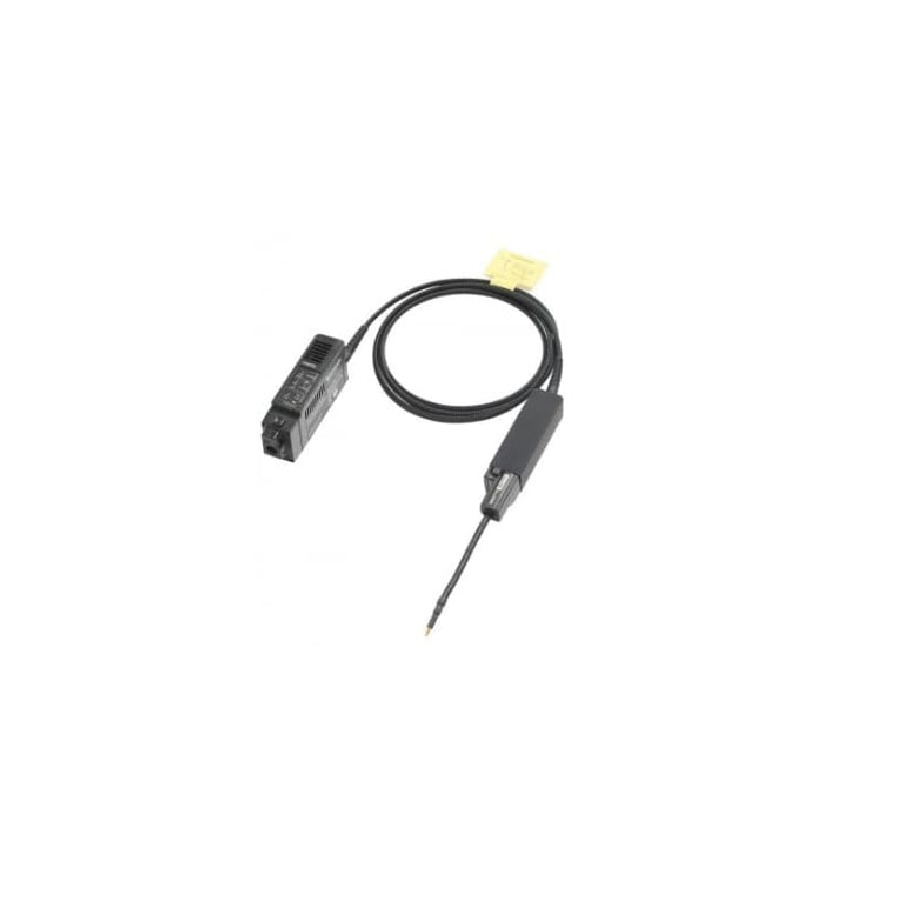

Tektronix TIVP1 High-Voltage Differential Probe: 1 GHz bandwidth, 2 pF input capacitance, 2500V peak differential voltage, IsoVu technology, 2m cable length, TIVP Series
Features and Specifications: Tektronix TIVP1 High-Voltage Differential Probe, 1 GHz, 2 pF, 2500V, IsoVu Probe, 2m, TIVP Series
Product Overview:
The Tektronix TIVP1 IsoVu™ High-Voltage Differential Probe offers unmatched measurement performance and electrical isolation in high-voltage environments. With a 1 GHz bandwidth, 2 pF input capacitance, and ±2500 V differential input, this probe is ideal for power electronics, automotive, and industrial applications where precision and operator safety are critical. IsoVu™ technology enables common-mode voltage tolerance up to ±60 kV, allowing safe and accurate measurements in the most demanding conditions.
📂 See more in the Oscilloscope Current Probes category.
Key Features
-
Bandwidth: 1 GHz
-
Differential Input Voltage: ±2500 V (with TIVPWS500X tip)
-
Common-Mode Voltage Range: ±60 kV
-
Input Capacitance: < 2 pF
-
Common-Mode Rejection Ratio (CMRR):
-
DC: 160 dB
-
100 MHz: up to 100 dB
-
-
Fiber Optic Cable Length: 2 meters
-
Rise Time: 450 ps
-
Galvanic Isolation via Fiber Optic Link
-
Multiple Sensor Tip Options for Flexible Measurement Ranges
Explore a related product: Teledyne LeCroy CP150B Current Probe
Technical Specifications
| Parameter | Value |
|---|---|
| Bandwidth | 1 GHz |
| Input Voltage (Max) | ±2500 V differential (with appropriate tip) |
| Common-Mode Voltage | ±60 kV |
| Input Capacitance | < 2 pF |
| CMRR (DC) | Up to 160 dB |
| Sensor Tip Options | TIVPMX10X, TIVPMX50X, TIVPWS500X, etc. |
| Cable Length | 2 m |
| Propagation Delay | 18.3 ns |
| Input Impedance | Up to 40 MΩ (depending on tip) |
| Country of Origin | United States |
🧠 Learn more about measuring high-voltage signals: Best Benchtop Power Supplies for Electronics Engineers: Top Features, Brands
What’s in the Box
-
Tektronix TIVP1 Probe (2m cable)
-
MMCX probe tip
-
SMA wrench/driver tool (5/16”)
-
Probe bipod
-
Probe tip adapter
-
IsoVu carrying case
-
Quick Reference Guide
-
Traceable Calibration Certificate
Value to the Customer
The Tektronix TIVP1 delivers precision, safety, and versatility in environments with extreme electrical noise or high-voltage swings. Whether you’re working on wide-bandgap semiconductors, inverter systems, or high-voltage test benches, this probe ensures accurate signal capture, exceptional common-mode rejection, and optical isolation for true differential measurements.
Browse more in the RF Test Accessories section or view other Oscilloscopes.
Additional information
| Brand | Tektronix |
|---|
