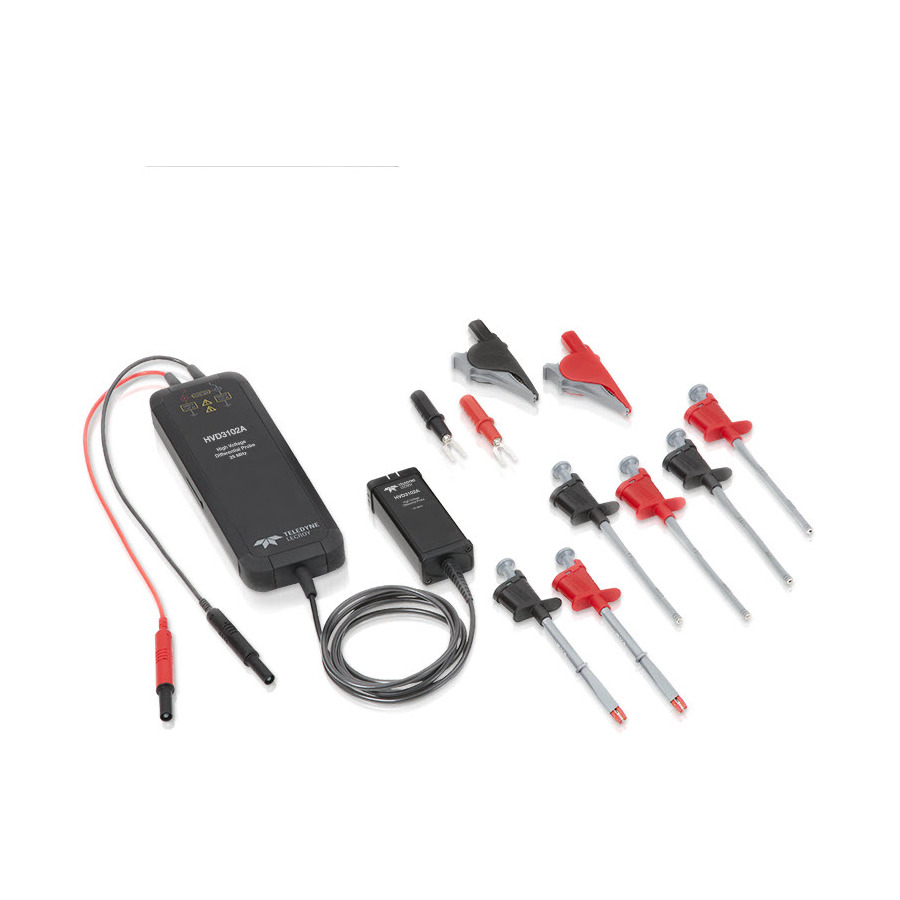

Teledyne LeCroy HVD3102A: 1 kV Differential Probe with Auto Zero for Precise High-Voltage Measurements
Roll over image to zoom in
$1.744
Teledyne LeCroy HVD3102A Differential Probe: 1 kV, 25 MHz, Auto Zero, 2m Cable, HVD3000A Series
Features and Specifications: Teledyne LeCroy HVD3102A Differential Probe
Product Overview:
The Teledyne LeCroy HVD3102A is a high-voltage differential probe designed for accurate and reliable measurements in high-power electronics applications. With its 1 kV differential input range and 25 MHz bandwidth, it provides exceptional performance for capturing fast transients and waveforms.
Features:
Differential input range: ±1 kV
Bandwidth: 25 MHz
Auto-zero function for precise measurements
2m cable length for convenient use
Compatible with HVD3000A Series probes
Specifications:
Input impedance: 10 MΩ || 10 pF
Common mode rejection ratio: >100 dB at 50 Hz
Maximum input voltage: ±1 kV
Bandwidth: 25 MHz (-3 dB)
Rise time: <14 ns
Settling time: <50 ns
Probe attenuation: 100:1
Cable length: 2m
Benefits:
High-voltage measurements: Accurately measure high-voltage signals up to ±1 kV.
Wide bandwidth: Capture fast transients and waveforms with a bandwidth of 25 MHz.
Auto-zero function: Ensure precise measurements by automatically compensating for offset errors.
Convenient use: The 2m cable length provides ample reach for easy positioning.
Compatibility: Compatible with the HVD3000A Series probes for a complete high-voltage measurement solution.
Value to the Customer:
The Teledyne LeCroy HVD3102A Differential Probe is an essential tool for engineers and technicians working with high-power electronics. Its high-voltage capability, wide bandwidth, and auto-zero function enable accurate and reliable measurements, saving time and effort in troubleshooting and design verification.
What’s in the Box:
HVD3102A Differential Probe
2m Cable
* User Manual
Additional information
| Brand | Teledyne LeCroy |
|---|
