Teledyne LeCroy T3SA3200: Advanced Spectrum Analysis with 3.2 GHz Frequency Range and 10.1\” Display
Roll over image to zoom in
$3,098.00

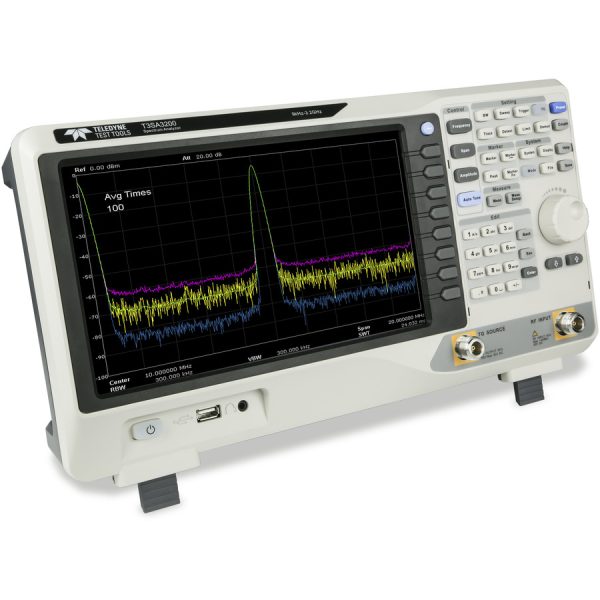

Teledyne LeCroy T3SA3200 Spectrum Analyzer: 9 KHz – 3.2 GHz, 10.1\” Color Display, T3SA3000 Series
Features and Specifications: Teledyne LeCroy T3SA3200 Spectrum Analyzer
Product Overview:
The Teledyne LeCroy T3SA3200 Spectrum Analyzer is a high-performance instrument designed for demanding applications in RF and microwave engineering. With its wide frequency range of 9 kHz to 3.2 GHz, 10.1\” color display, and advanced features, the T3SA3200 provides exceptional signal analysis capabilities.
Features:
Frequency range: 9 kHz to 3.2 GHz
10.1\” color display with 800 x 480 resolution
Real-time bandwidth: 100 MHz
Maximum frequency span: 3.2 GHz
Sensitivity: -160 dBm/Hz
Dynamic range: 100 dB
Phase noise: -100 dBc/Hz at 10 kHz offset
Multiple measurement modes: spectrum, time domain, modulation analysis, and more
Advanced triggering capabilities
Built-in tracking generator
USB, LAN, and GPIB interfaces
Specifications:
Frequency accuracy: ±10 ppm
Amplitude accuracy: ±1 dB
Resolution bandwidth: 1 Hz to 10 MHz
Video bandwidth: 1 Hz to 10 MHz
Sweep speed: 100 ms/div to 10 s/div
Dimensions: 17.3\” x 13.4\” x 5.5\”
Weight: 15 lbs
What\’s in the Box:
T3SA3200 Spectrum Analyzer
Power cord
USB cable
LAN cable
GPIB cable
User manual
Benefits:
Wide frequency range and high sensitivity for analyzing a broad range of signals
Large color display for clear and detailed signal visualization
Real-time bandwidth for capturing transient events
Advanced measurement modes for comprehensive signal analysis
Built-in tracking generator for signal generation and analysis
Multiple interfaces for easy connectivity and data transfer
Value to the Customer:
The Teledyne LeCroy T3SA3200 Spectrum Analyzer offers exceptional value to customers by providing:
Accurate and reliable signal analysis for design, troubleshooting, and manufacturing
Enhanced productivity with its user-friendly interface and advanced features
Reduced time-to-market by enabling efficient signal characterization and optimization
Improved product quality by ensuring compliance with industry standards and specifications
Additional information
| Brand | Teledyne LeCroy |
|---|
